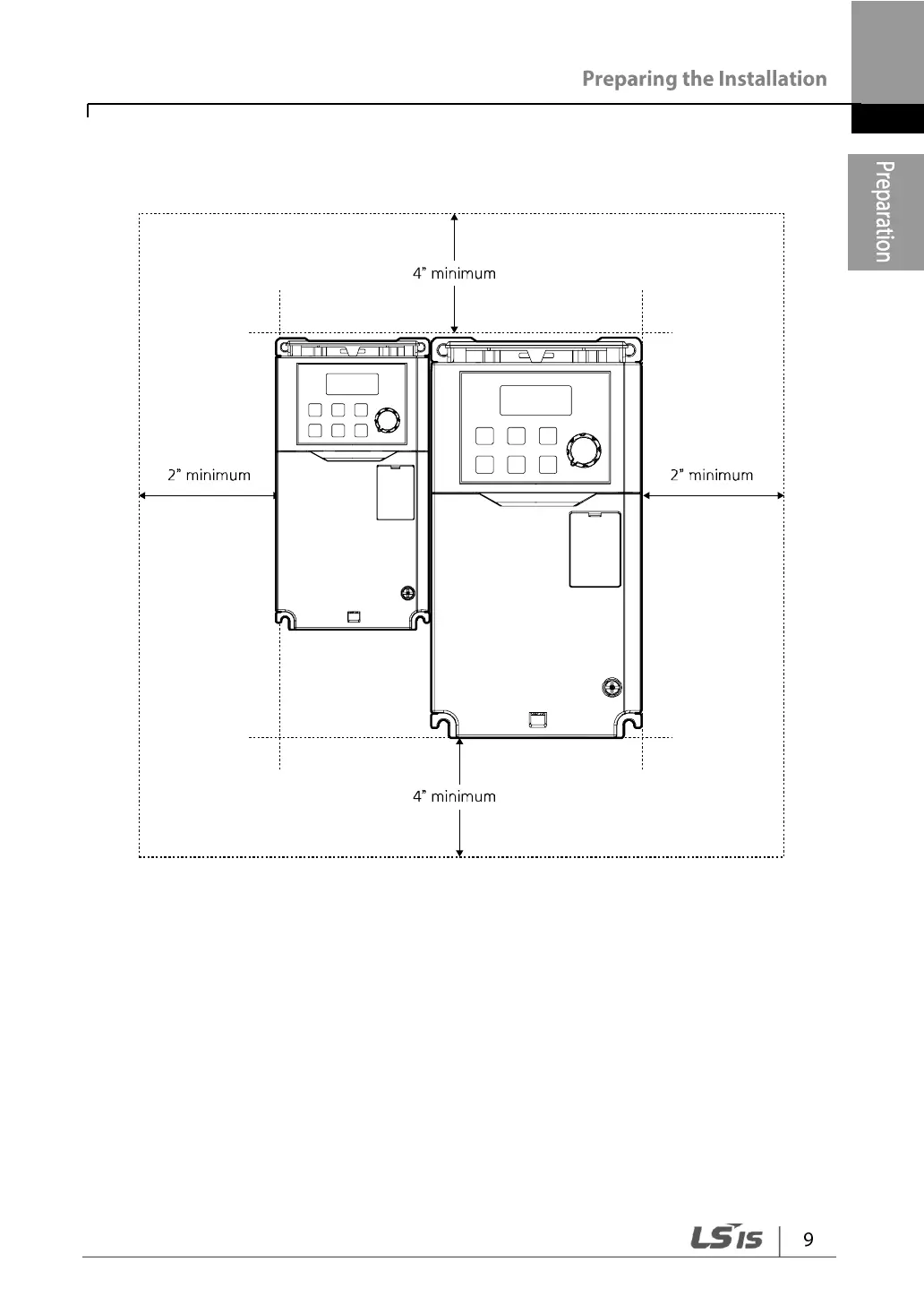

• If you are installing multiple inverters, of different ratings, provide sufficient

clearance to meet the clearance specifications of the larger inverter.
