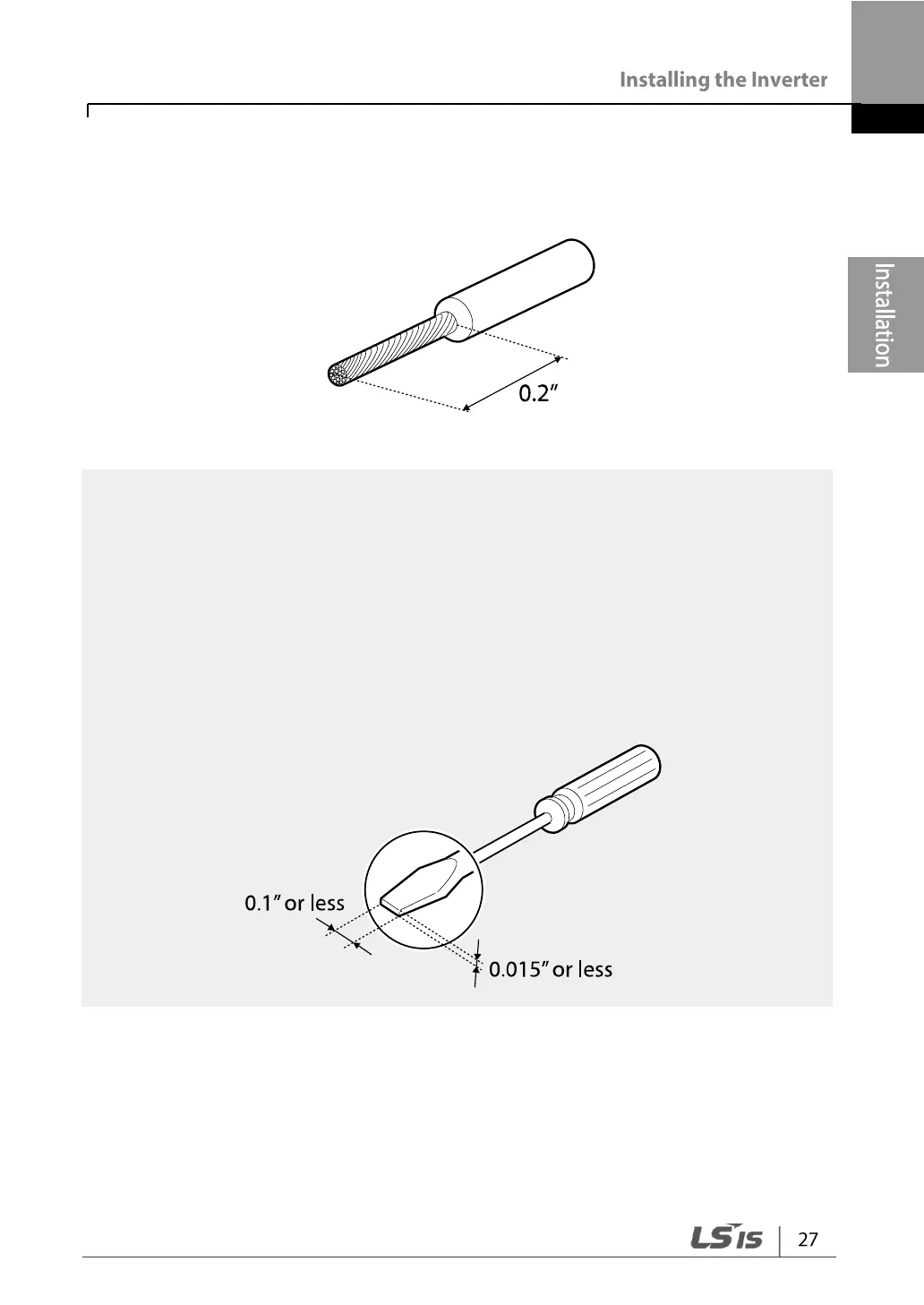

To connect cables to the control terminals without using crimp terminals, refer to the
following illustration detailing the correct length of exposed conductor at the end of the
control cable.
• While making wiring connections at the control terminals, ensure that the total cable
length does not exceed 165 ft (50 m).
• Ensure that the length of any safety related wiring does not exceed 100 ft (30m).
• Use ferrite material to protect signal cables from electro-magnetic interference.
• Take care when supporting cables using cable ties, to apply the cable ties no closer
than 6 inches from the inverter. This provides sufficient access to fully close the front
cover.
• When making control terminal cable connections, use a small flat-tip screw driver (0.1
in wide (2.5 mm) and 0.015 in thick (0.4 mm) at the tip).
