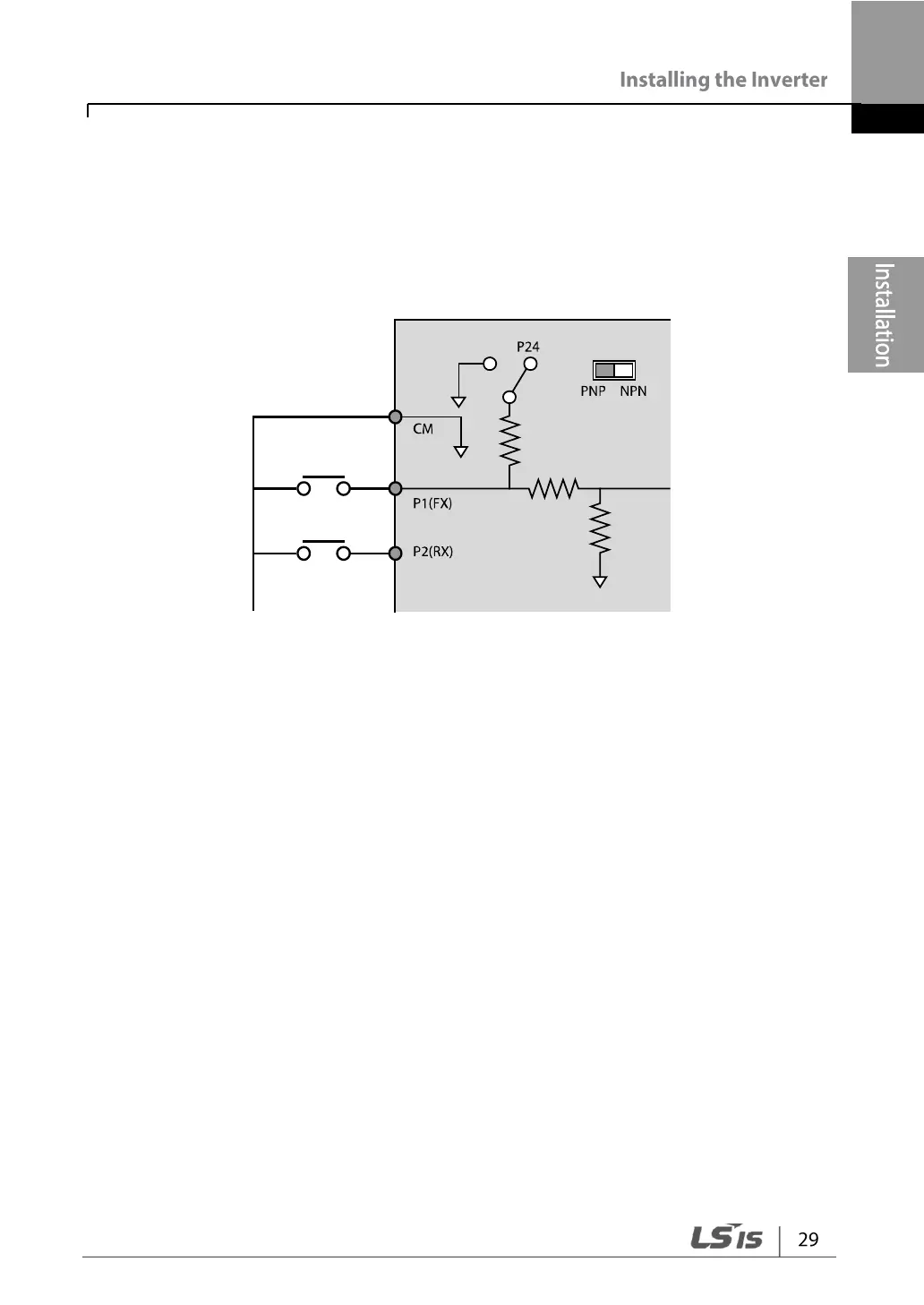

NPN Mode (Sink)

Select NPN using the PNP/NPN selection switch (SW1). CM is the common ground

terminal for all analog inputs at the terminal, and P24 is 24 V internal source. Note

that the factory default setting is NPN mode.
