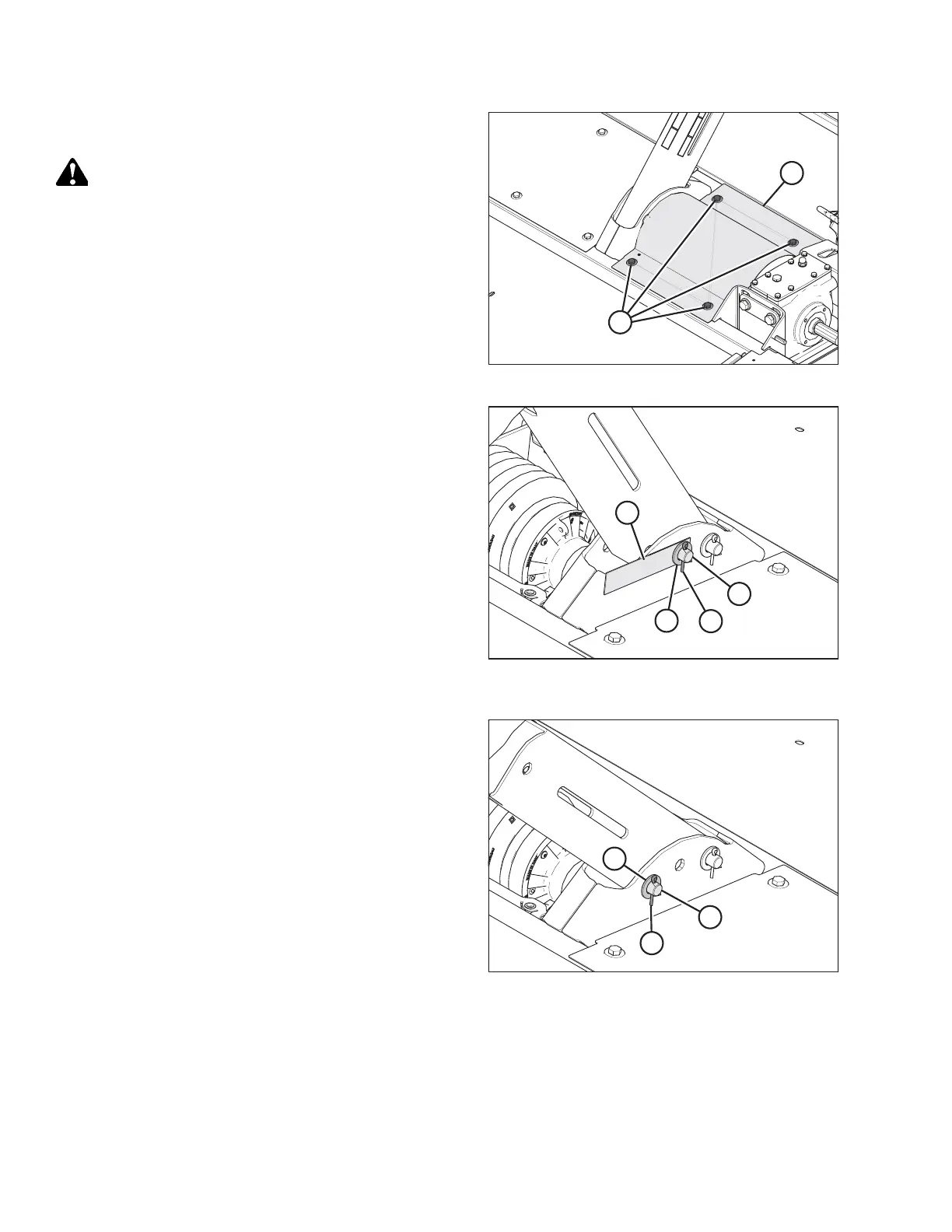

Figure 3.3: Top Shield (Left of Center-Link)
3. Remove four M10 hex head bolts (A) and flat washers,
and remove top shield (B).
CAUTION
To avoid injury, keep fingers clear of opening at base of
anchor.
1018340
A
B
C
D
Figure 3.4: Center-Link Anchor (Right of
Center-Link)
4. Remove cotter pin (B), washer (C), and shipping
tag (D).
5. Remove pin (A) from center location and lower forks on
forklift.
NOTE:
Pin should slide out freely. Adjust forklift or move carrier
until pin is loose. Do NOT use hammer to remove pin.
1018340
A
B
C
Figure 3.5: Center-Link Anchor (Right of
Center-Link)
6. Install pin (A) and secure with washer (B) and cotter
pin (C). Move the carrier and anchor so the pin can be
installed in working location.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
