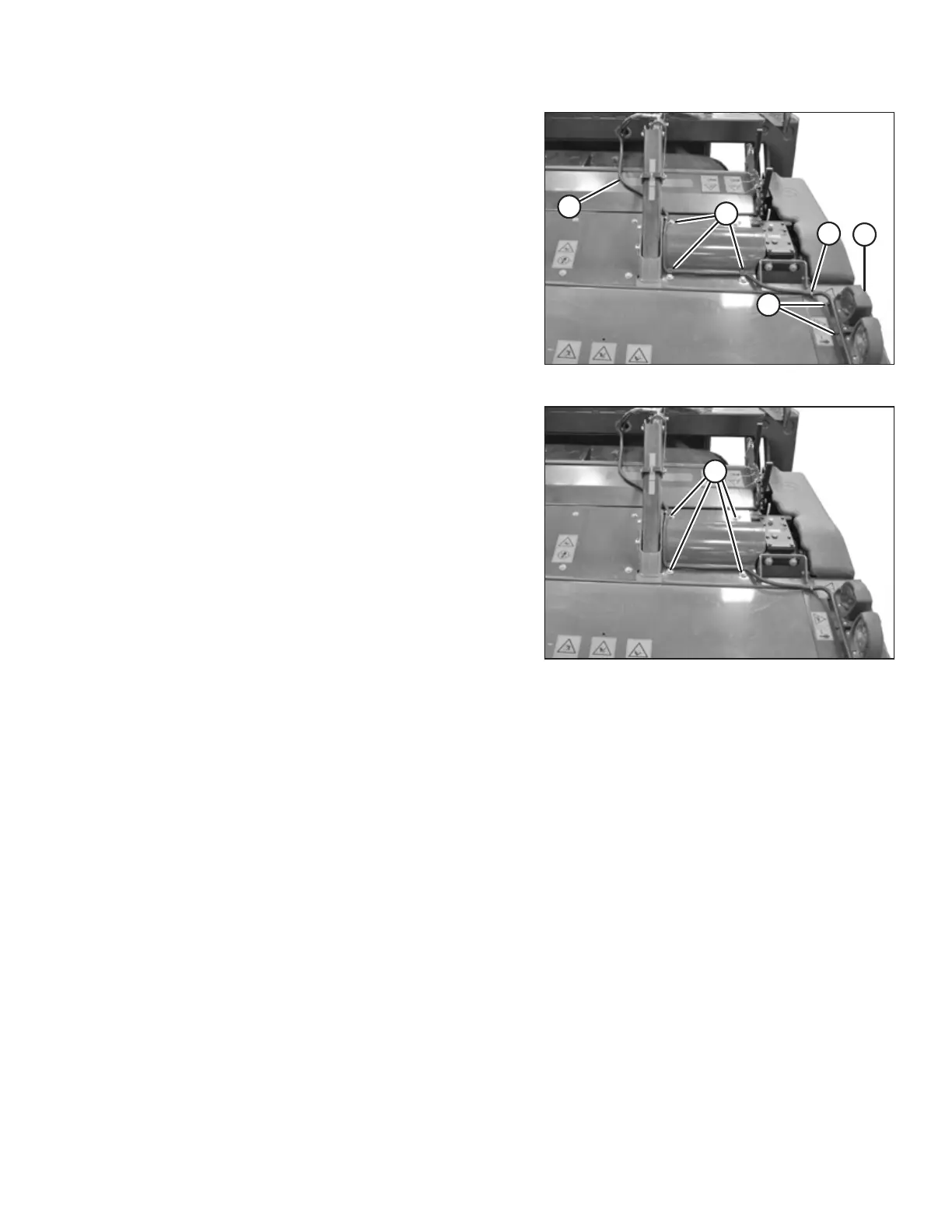

Figure 9.33: Electrical Harness
23. If Road Friendly Transport
™
system is installed,
reconnect electrical harness (A) to lights (B) and secure
harness to shielding using existing clips (C) and (D).
24. Secure harness to light bracket with cable ties (E).
1015093
A
Figure 9.34: Electrical Harness
25. Tighten the four M10 hex head bolts (A) and
flat washers. Torque to 27–30 Nm (20–22 lbf·ft).
26. Check float settings. Refer to 7.6.1 Adjusting Disc
Mower Float, page 132 for float adjustment instructions.
