214713 34 Revision A
Installing Transport Assembly
1025984
A
B

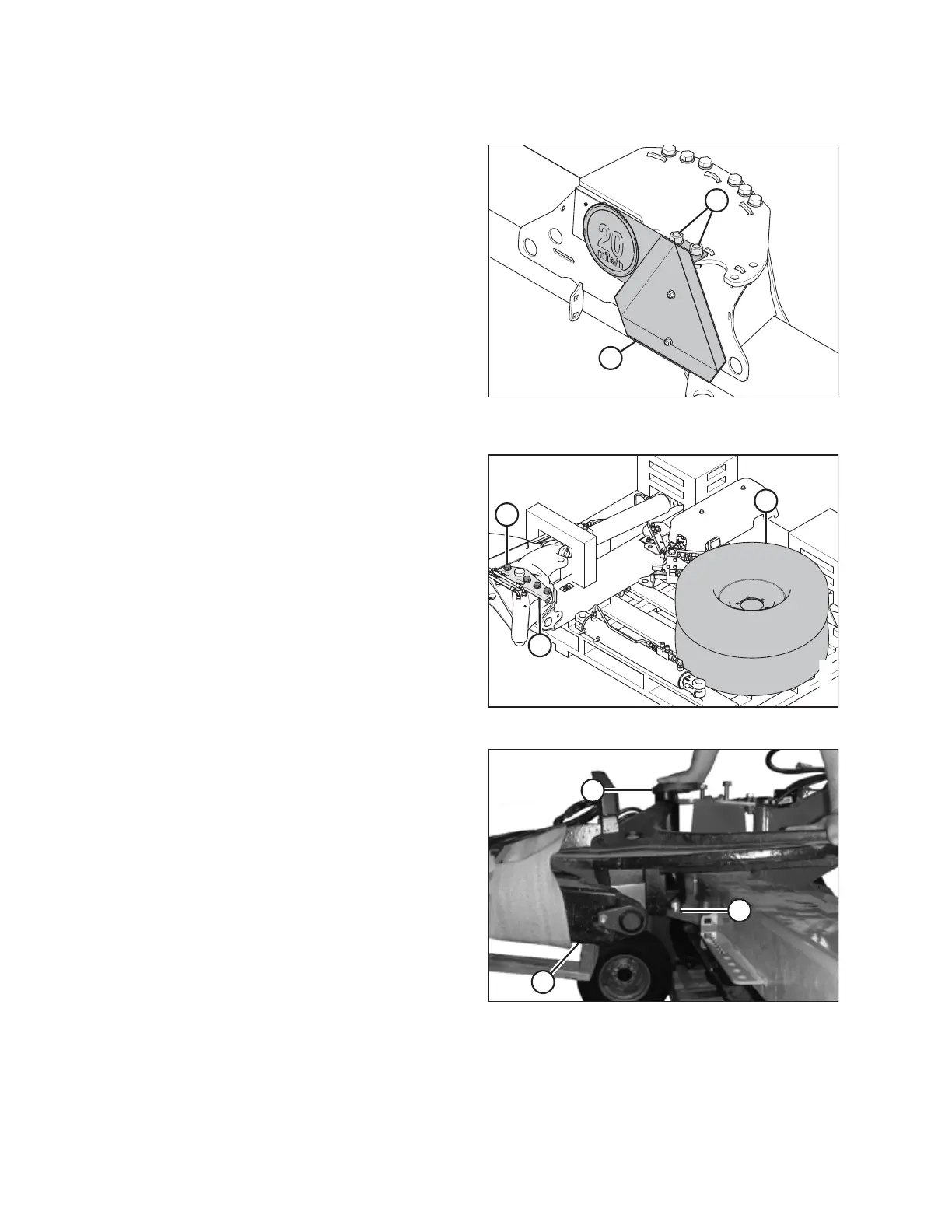

Figure 3.59: SMV Sign Attached to
Carrier Frame
1. Remove two bolts (A), hardened washer, and nut
securing slow moving vehicle (SMV) sign (B) to the
carrier frame, and remove sign. Retain sign and
hardware for reinstallation.
1022722
A
B
C
Figure 3.60: Transport Packing
2. Remove transport wheels (A) from the pallet.
3. Remove the five M20 hex head bolts (B), washers, and
nuts in transport assembly pin (C). Do NOT remove pin.
1011186
A
B
C
Figure 3.61: Road Friendly Transport
™™
4. Using a forklift, pick up the pallet holding the transport
assembly (A) and align it with the rear of the
disc mower.
5. Position the assembly close behind the frame and align
pin (B) in transport assembly with hole (C) in the carrier.
Use a soft hammer or equivalent to fully insert pin (B).
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
