214713 51 Revision A

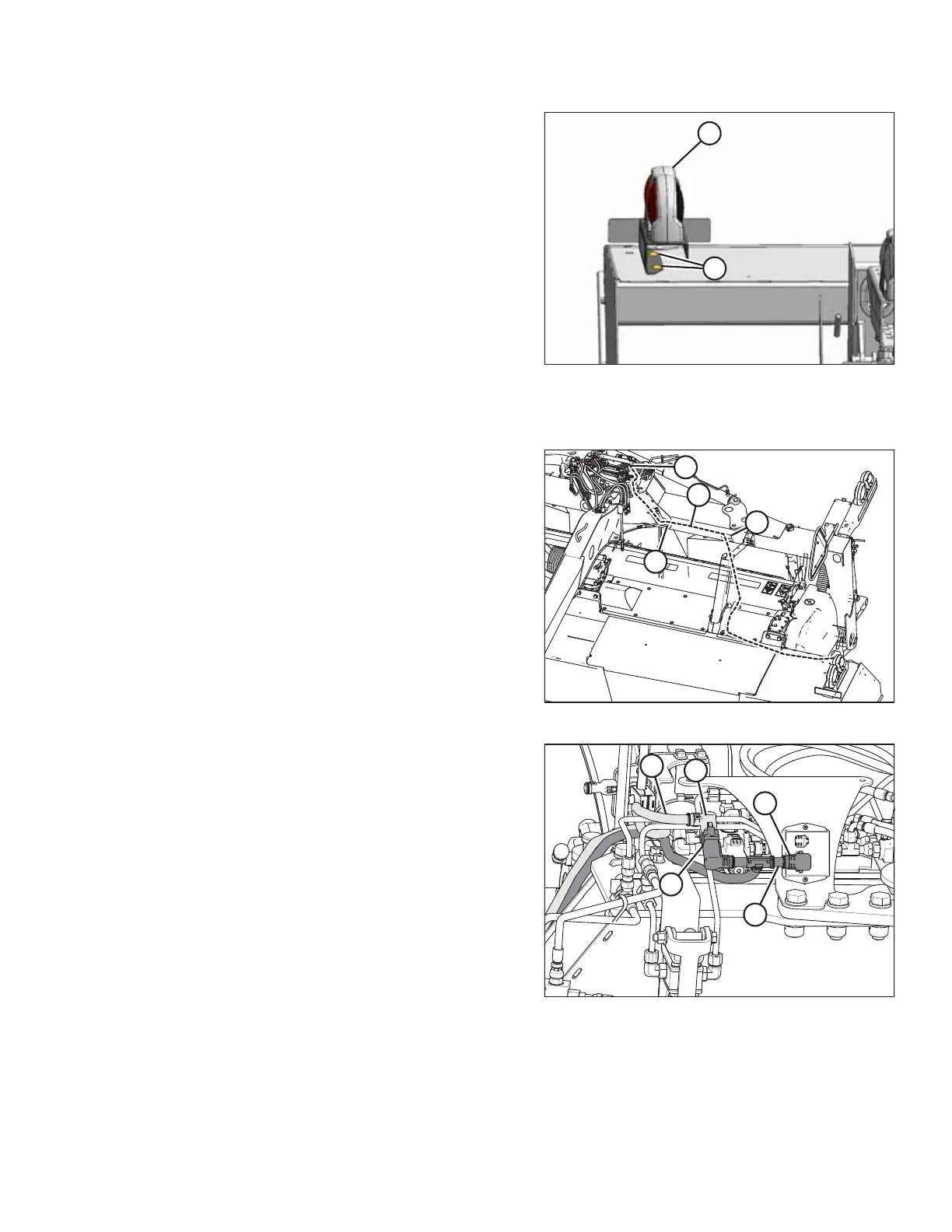

Figure 3.102: Header Left Side Lighting
7. Install light assembly (A) onto header left end with two
M10 x 20 carriage bolts (B) and lock nuts from the
shipping bag. Ensure the amber lamp faces the front of
header and reflector faces outboard.
Installing Left Side Transport Harness
Figure 3.103: Harness Routing
1. Retrieve transport harness (A) (MD #281614) from the
shipping bag.
2. Route connectors P201 and P202 on the end of
harness (A) to cover support (D).
3. Using a draw tape or equivalent, route connectors P401
and P404 on the other end of the harness (A) through
opening (B) at front of carrier to opening (C) adjacent to
center-link.
4. Route the harness until the plugs reach the left light
assembly on the header.
Figure 3.104: Harness Connection
5. Locate plug P301 (D) on harness (E) (MD #281613). It
was disconnected from the old lighting module.
6. Connect plug P201 (B) on harness (A) (MD #281614)
into the lower output receptacle on the lighting module.
7. Connect plug P301 (D) to receptacle P202 (C).
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
