214713 59 Revision A
1018340
A
B
C
D

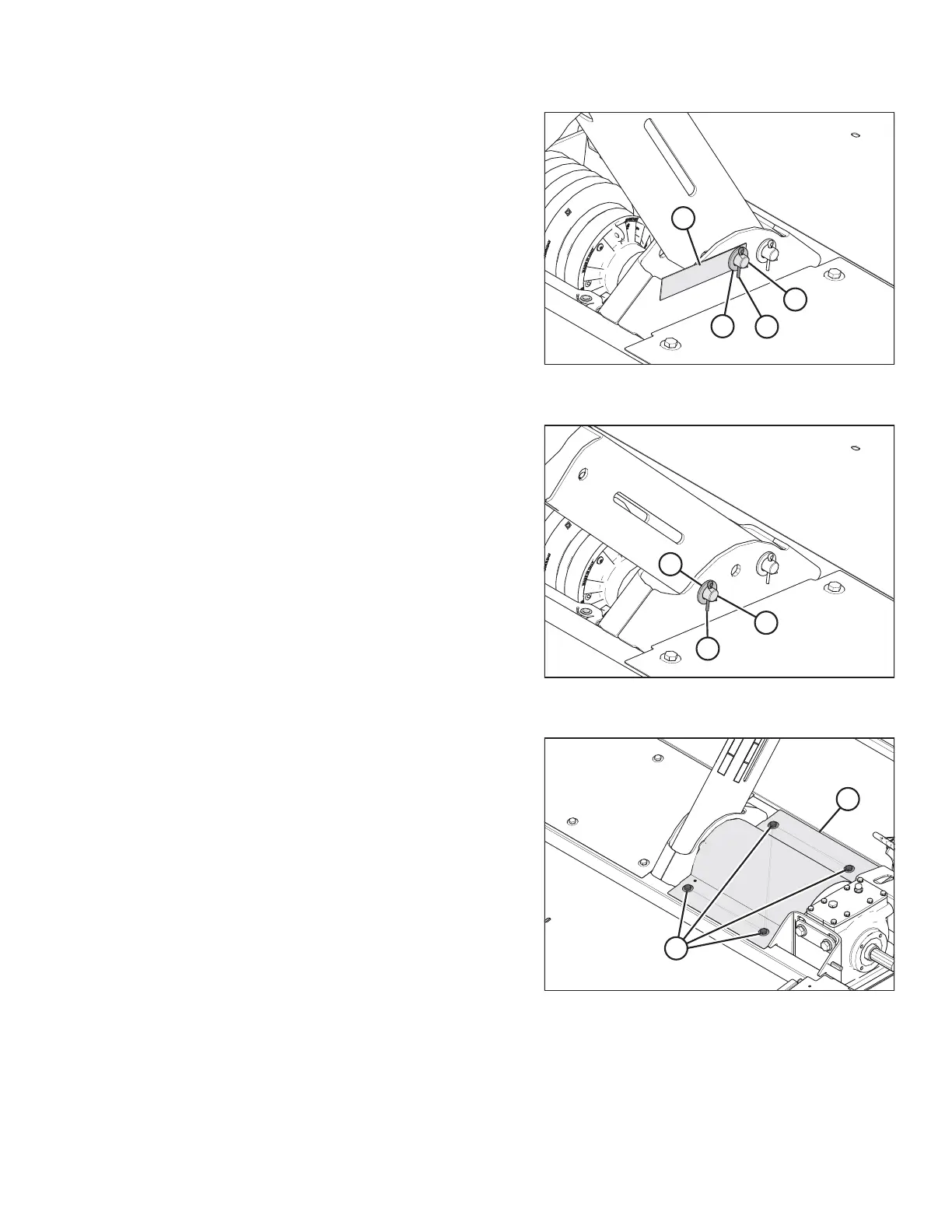

Figure 4.6: Center-Link Anchor (Right of
Center-Link)
6. Remove cotter pin (B), washer (C), and shipping tag (D)
from pin (A).
7. Pin (A) should slide out freely. Do NOT use a hammer
to remove pin (A).
8. Adjust the center-link and/or forklift until pin (A) is loose.
1018340
A
B
C
Figure 4.7: Center-Link Anchor (Right of
Center-Link)
9. Adjust the carrier frame so the pin can be installed in
working location. Install pin (A) and secure with
washer (B) and cotter pin (C).
1013184
A
B
Figure 4.8: Top Shield (Left of Center-Link)
10. Install top shield (B) and secure with four M10 hex head
bolts (A) and flat washers. Torque to 27–30 Nm
(20–22 lbf·ft).
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
