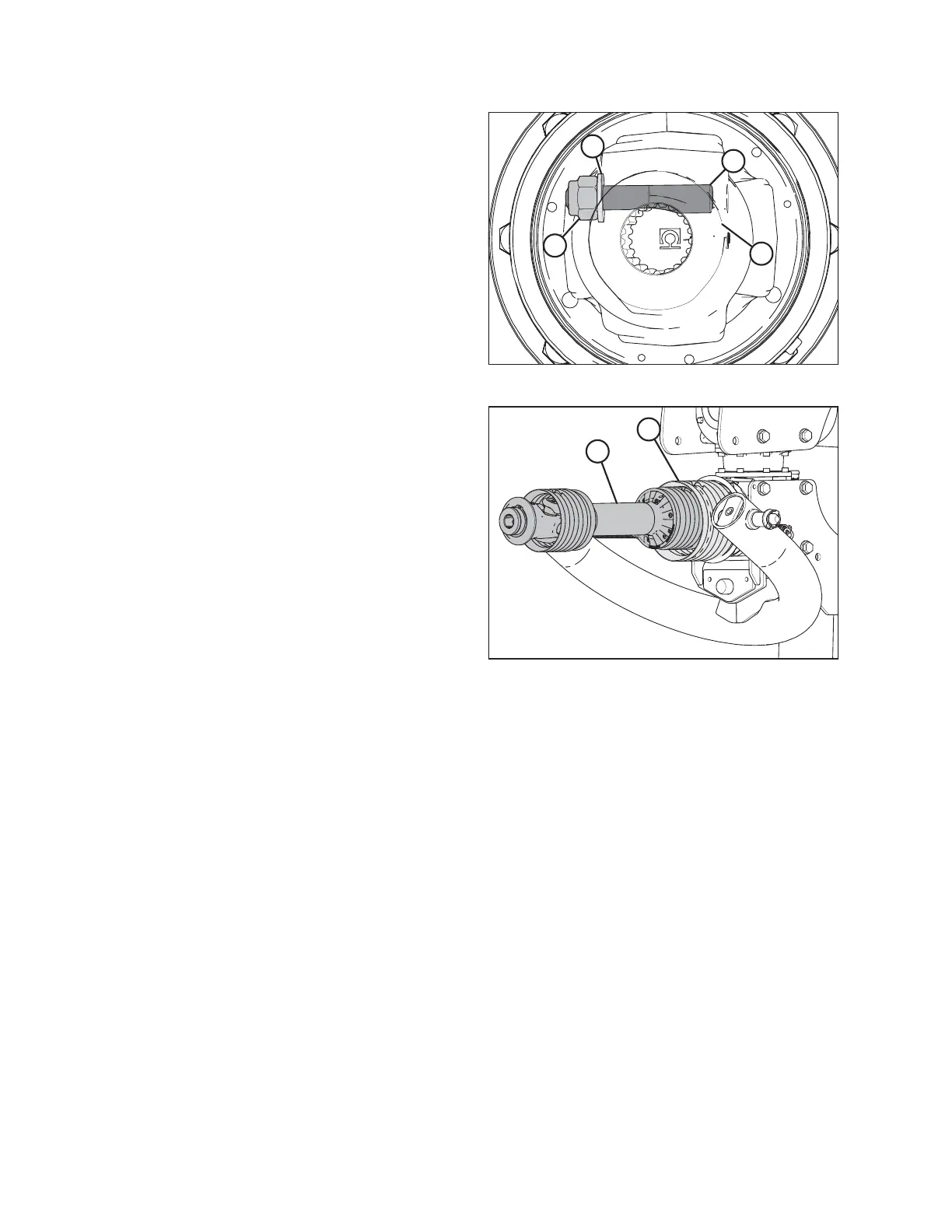

Figure 4.41: Primary Driveline
20. Insert tapered pin (A) by hand. Ensure the pin lines up
with groove in the yoke and is fully inserted. The notch
in the pin should be facing toward the shaft.
21. Clean the threads on pin (A) after it has been inserted.
22. Install washer (B) and nut (C) on the tapered pin and
torque to 149 Nm (110 lbf·ft). The end of the pin must
be recessed 9–11 mm (0.35–0.43 in.) (D).
NOTE:
Do NOT use an impact wrench to install or torque
the nut.
1026376
A
B
Figure 4.42: Cone Shield
23. Install cone shield (A) over the primary driveline. Place
driveline (B) on the driveline support.
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
