MacDon R113 - Page 79

214713 71 Revision A
1026370
A

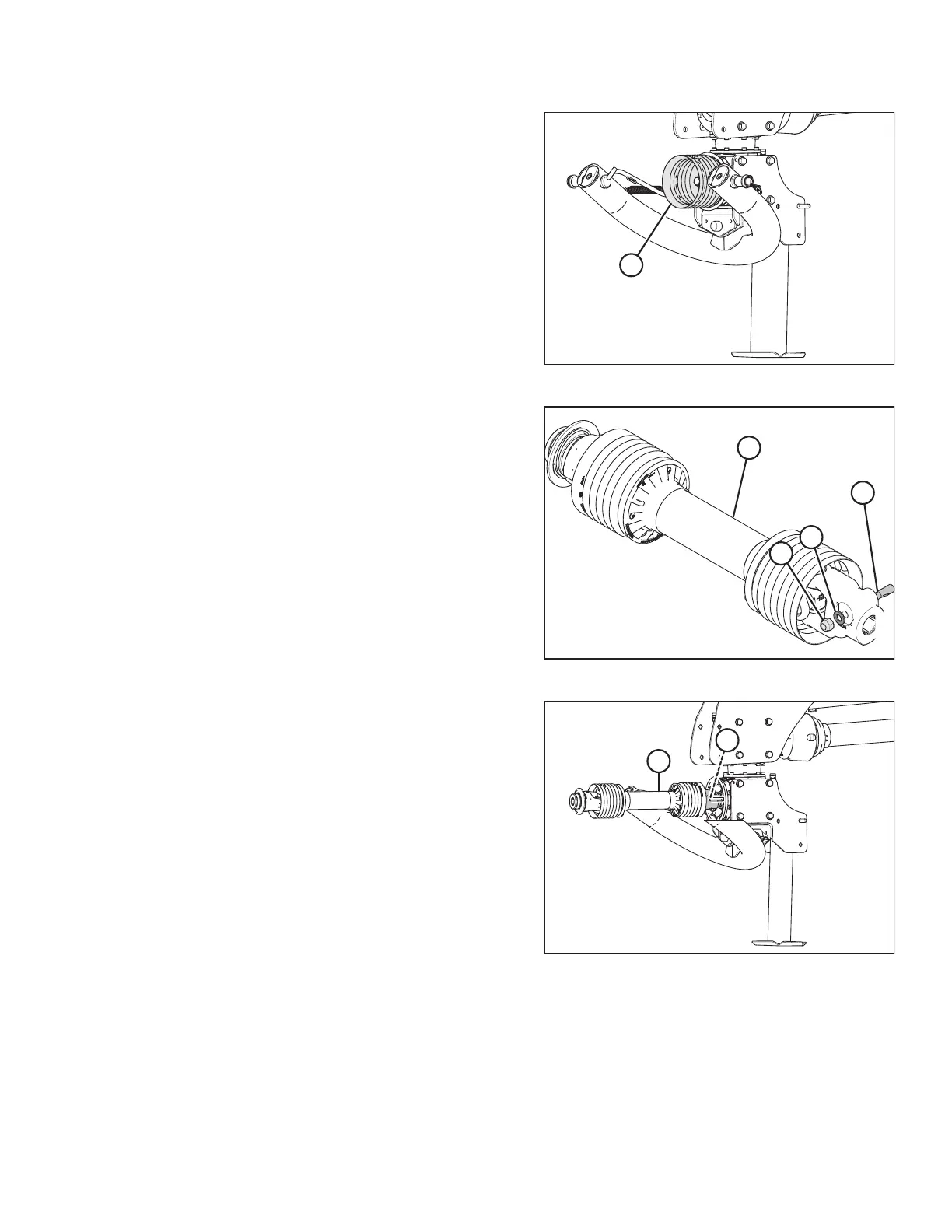

Figure 4.38: Cone Shield
16. Remove cone shield (A).
1023655
A
B
C
D
Figure 4.39: Primary Driveline
17. Retrieve the primary driveline (D) from the shipping
location.
18. Remove nut (C), washer (B), and pin (A) from the disc
mower end of primary driveline (D).
1026375
A
B
Figure 4.40: Primary Driveline
19. Slide driveline (A) onto gearbox input shaft (B). Align
the pinhole in the yoke with the groove on the
input shaft.
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
