Mahr GmbH • Digimar 817 CLM
Description / Sequence Symbols / Pictures

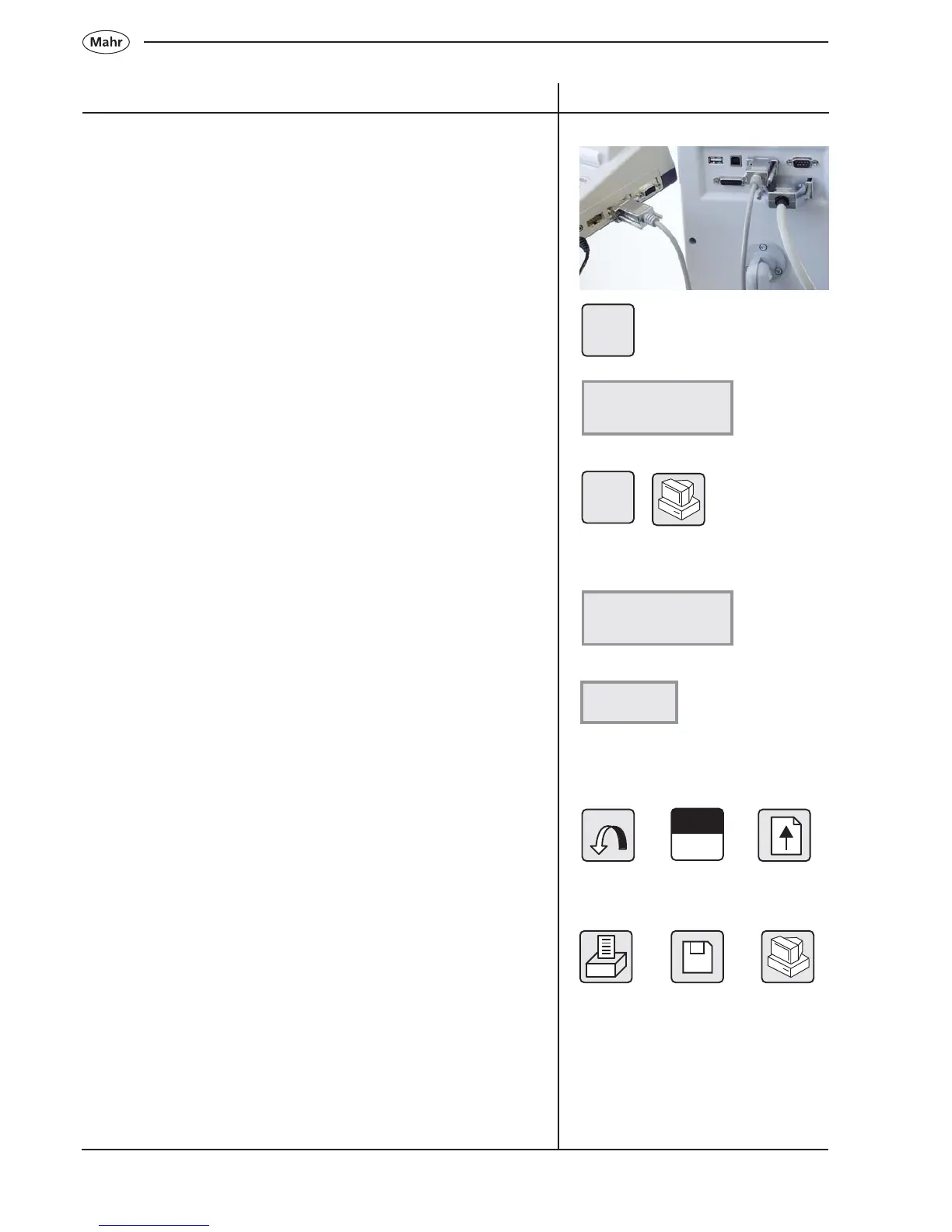

5.3.3 Printing options with a MSP 2 statistics printer
Connect a RS 232 connection cable to the RS 232 OUT interface on
the height measuring instrument and connect the other end of the
cable to a MSP 2 statistics printer
Standard settings Opto-RS232 Duplex
Transfer individual data
– Briefly press the DATA key
Settings on the MSP 2:
Transfer the complete data
– Long activation of the DATA key and press the monitor key
Settings on the MSP 2:
Press the DATA key on the MSP 2
Also see chapter 6.13.4 Interface RS232 OUT and chapter 6.13.5
DATA Parameter RS232 Out
5.3.4 Further explanation
1 Deselect a characteristic
2 Select a characteristic
3 Paper feed
4 Transfer to an USB printer
5 Save to the internal USB memory
6 Transfer to a PC (RS232 OUT)
ASCII-Printer
( Stat ) ( DATA )
DATA
Interface
Opto duplex
DATA

A
12 3
45 6
DATA
