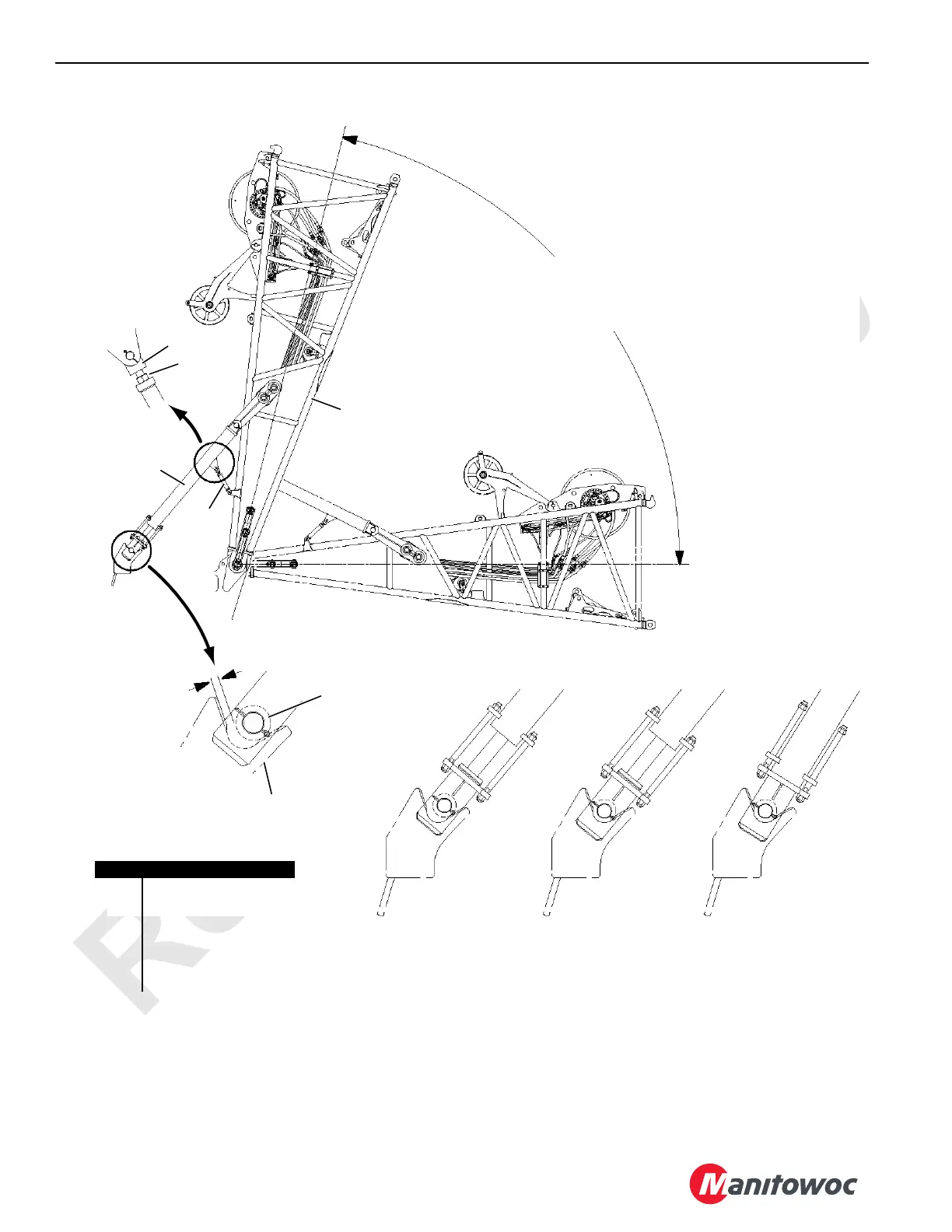

FIGURE 4-4
• 76.1° - Initial Contact
• 77.9° - Start of Spring Cushioning
• 88.9° - Physical Stop (springs solid)
Boom at 77.9º
Start of Cushioning
Boom at 88.9º
Physical Stop
(springs solid)
Item Description
1 Boom Butt
2 Physical Boom Stop
3Strut
3a Nut
3b Adjusting Rod
4Roller
5 Saddle
2
3
1
4
5
1-1/2 in
(38 mm)
Boom at 76.1º
Initial Contact
3a
3b
View B
View A
View C
