Manitowoc Published 05-09-17, Control # 014-28 5-11
16000 SERVICE/MAINTENANCE MANUAL HOISTS
5
Wear and Other Damage
See Figure 5-9 for examples of wire rope damage.
It is normal for the outer wires of the rope to wear first
because of friction.
The wire rope must be taken out of service if:
• Rope core protrudes from between outer strands
• Severe corrosion – indicated by pitting – exists
• Obvious damage exists from any heat source to include
– but not limited to – welding, power line strike, or
lighting
• Kinking, crushing, bird caging, or any other damage
resulting in distortion of the rope structure exists
DISTRIBUTING WIRE ROPE WEAR
Wire rope wear at the “critical wear points” can be reduced
and the life of the wire rope extended by moving the rope at
regular intervals so different sections of rope are subjected to
the wear points. This practice can also help correct spooling
problems and rope vibration.
To move the wire rope, cut off a piece of wire rope at the
drum and refasten it. The piece cut off should be long
enough to move wire rope at least one full drum wrap.
If the wire rope is too short to allow cutting off a piece of it,
reverse the rope end for end and refasten it.
WARNING
Falling Load Hazard!
Replacement wire rope can break if it does not meet
Manitowoc specifications given in the following
publications supplied with your crane:
• Wire Rope Specifications Chart located in Capacity
Chart Manual (for load lines)
• Boom or Jib Assembly Drawings located in Crane
Operator Manual (for boom or luffing hoist)
• Mast Assembly Drawing located in Parts Manual

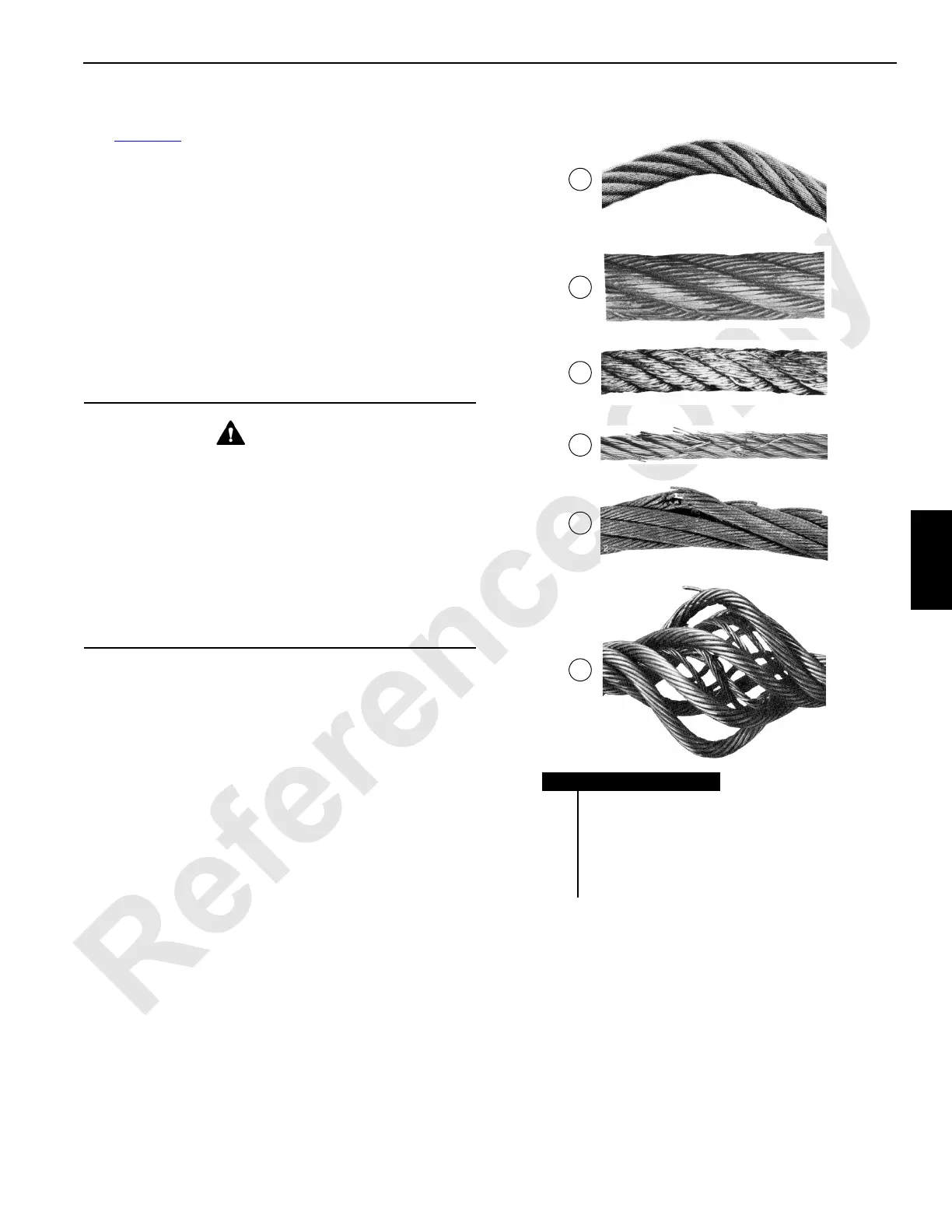

FIGURE 5-9
Item Description
1 Dog-Leg or Kink
2 Drum Abrasion
3 Drum Crushing
4 Sheaves Too Small
5 Button Socket
6Bird Cage
1
2
3
4
5
6
M100655a-f
