Reference Only
Manitowoc Published 05-09-17, Control # 014-28 3-41
16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3

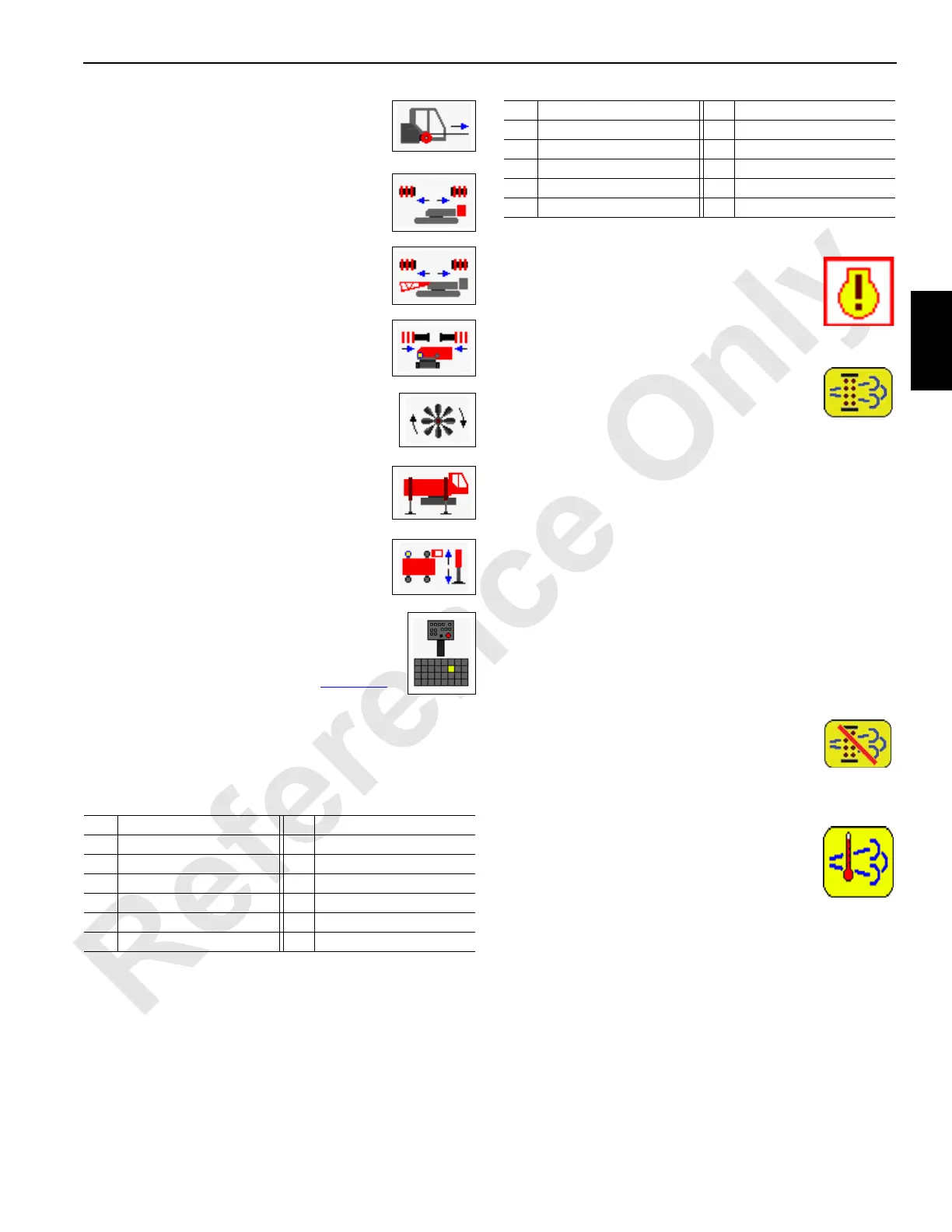

Rigging Winch Status
Displays command state of rigging winch —
haul in or pay out (shown) line.
Counterweight Pin Status
Displays command state of counterweight pin
cylinders — extended (shown) or retracted.
Boom Hinge Pin Status
Displays command state of boom hinge pin
cylinders — extended (shown) or retracted.
Rotating Bed Pin Status
Displays command state of rotating bed pins
— extended or retracted (shown).
Engine Cooling Fan Status
Displays command state of engine cooling fan
(shown on).
Crane on Jacks Symbol
Displays image of crane on jacks. Front view
icon also shown on Diagnostic screen.
Jack Status
Displays command state of a jack cylinder.
Left rear jack shown extended.
Remote Control: Wireless and Wired
Displays remote control status by indicating
which switches are closed. Each control switch
corresponds with a number (see Table 3-9
).
Switch numbers start from 1 through 8 in row
one, 9 through 16 in row two, 17 through 24 in row three and
25 through 32 in row four. Not all switch numbers are used.
Switch number 14 (Left Front Jack - Extend) is enabled in
example shown.
Table 3-9 Wireless Remote Switch Identification
Engine Diagnostics Screen
Engine Prompt
Displays when continued engine operation
could result in damage to Diesel Particulate
Filter (DPF). Stop the engine when safe and call
for service.
Diesel Particulate Filter (DPF) ON
Displays one of three conditions (see Engine
Manufacturer’s manual for additional
information):
• DPF is starting to fill. Ensure Regeneration Inhibit Switch
is OFF. No immediate action is required. Perform a
Stationary Regeneration at earliest convenience.
• Diesel Particulate Filter (DPF) FLASHING — DPF is
nearly full. The operator may sense a reduction in
power. Ensure Regeneration Inhibit Switch is OFF. No
immediate action is required, but a Stationary
Regeneration should be initiated as soon as possible.
• Diesel Particulate Filter (DPF) FLASHING and Check
Engine light ON. The DPF is full. The operator will notice
that engine power is significantly reduced. Stop
operation and perform a Stationary Regeneration
immediately.
DPF Regeneration Inhibited
Displays when active regeneration has been
disallowed by pressing the Regeneration Inhibit
switch. Excessive use of Regeneration Inhibit will result in
the need to service or replace the DPF.
High Exhaust System Temperature
(HEST)
Displays when higher than normal exhaust
temperatures may exist due to DPF
regeneration. See Engine Manufacturer’s manuals for
additional information.
No. Description No. Description
1 Engine Low Speed 16 Right Front Jack - Extend
2 Engine High Speed 17 Left Rear Jack - Retract
7 Boom Pins - In 18 Left Rear Jack - Extend
8 Boom Pins - Out 19 Right Rear Jack - Retract
9 Front Adapter Pins - In 20 Right Rear Jack - Extend
10 Front Adapter Pins - Out 21 All Jacks - Retract
11 Rear Adapter Pins - In 22 All Jacks - Extend
12 Rear Adapter Pins - Out 24 Counterweight Pins - Out
13 Left Front Jack - Retract 25 Mast Lower
14 Left Front Jack - Extend 26 Mast Raise
15 Right Front Jack - Retract 27 Remote Stop
No. Description No. Description
