Manitowoc 16000 Service And Maintenance Manual

Reference Only
POWER TRAIN 16000 SERVICE/MAINTENANCE MANUAL
7-12
Published 05-09-17, Control # 014-28

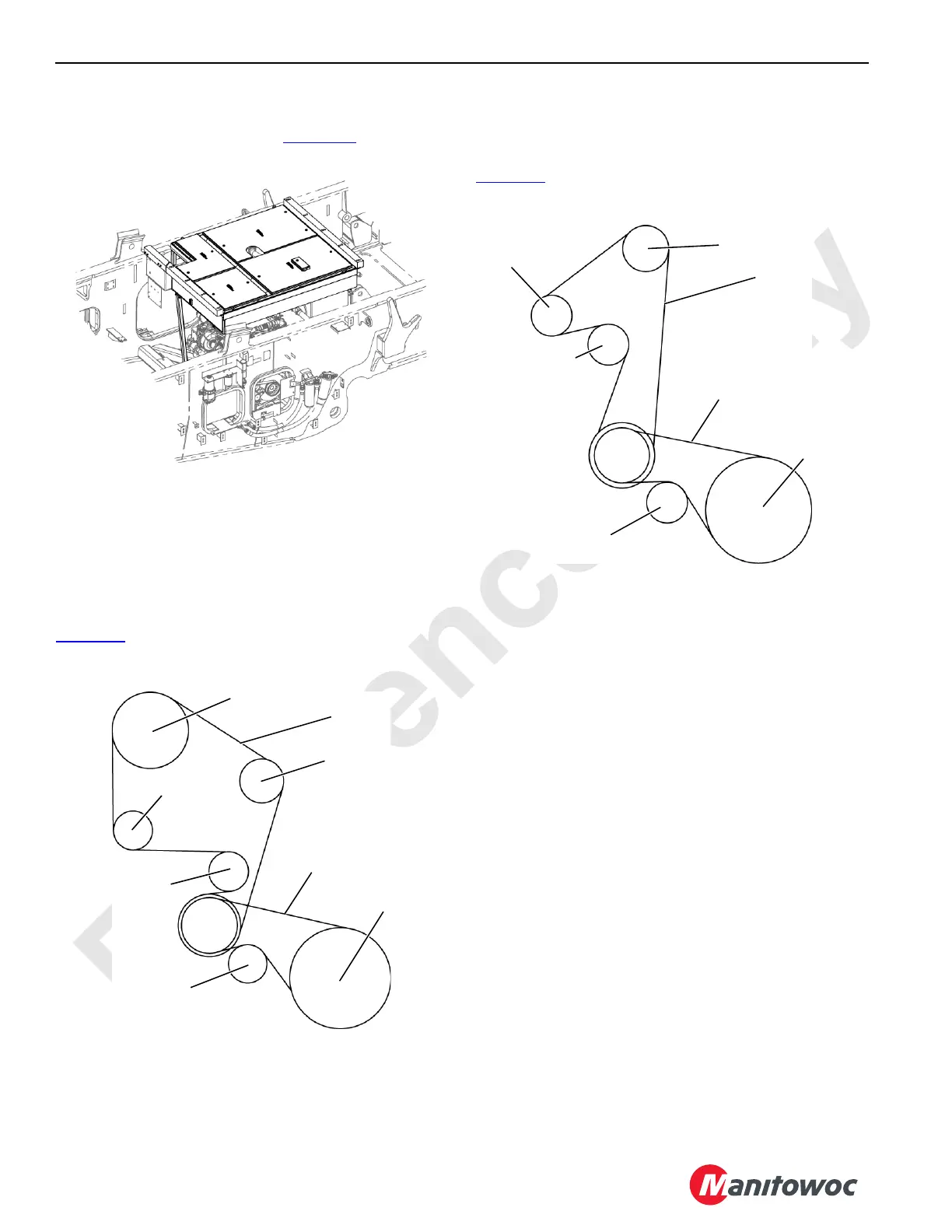

ENGINE ENCLOSURE
The enclosure has panels (see Figure 7-7) that can be
removed to allow access for engine service.
Do not operate the crane without the enclosure in place and
all fasteners secure.
ENGINE BELT ROUTING — TIER 3 ENGINE
ONLY
Engine belt routing for the Tier 3 engine is shown in
Figure 7-8
to help service personnel when installing a new
fan belt.
ENGINE BELT ROUTING — TIER 4 ENGINE
ONLY
Engine belt routing for the Tier 4 engine is shown in
Figure 7-9
to help service personnel when installing a new
fan belt.
FIGURE 7-7
81014468
FIGURE 7-8
Looking at Engine
from Fan End
Belt #1
Belt #2
Water
Pump
Alternator
Crankshaft
Fly Wheel
Tensioner
Tensioner
A13447_belt_routing
Tensioner
FIGURE 7-9
Looking at Engine
from Fan End
Belt #1
Belt #2
Water
Pump
Alternator
Crankshaft
Fly Wheel
Tensioner
Tensioner
81013184_belt_routing
