ELECTRIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
3-52
Published 05-09-17, Control # 014-28
Camera Screen (Optional)
The camera screen (not shown) displays camera options
and items for selecting and operating. The camera option
includes up to three different cameras to monitor drum
spooling and the area behind the crane.
Use Select buttons to select the camera screen on the Menu
screen. Press Enter button to access the screen.
Use Select buttons to select desired camera view.
Press Exit button until Menu screen appears.
DIELECTRIC GREASE
The following figures show the proper application of
dielectric grease on J - tech type connectors.
Dielectric grease is need when assembling J - tech type
connectors. A bead of grease needs to be applied on O-ring
and face of the socket connector and only on the O-ring for
a pin connector.
The size of the grease bead on the O-ring is as follows:
• On a 3 pin connector a 1/16 inch (1,59 mm) bead is
required.
• On a 24 pin connector a 1/8 inch (3,18 mm) bead is
required.
• On a 37 pin connector a 3/16 inch (4,76 mm) bead is
required.
Place a small amount of grease on your finger for the
application on the connector’s face. Wipe your finger across
the face leaving grease inside the socket holes and less than
0.001 inch (0,025 mm) on the connector’s face. This helps
assure that water will be kept out of the connectors and keep
the pins from fretting.

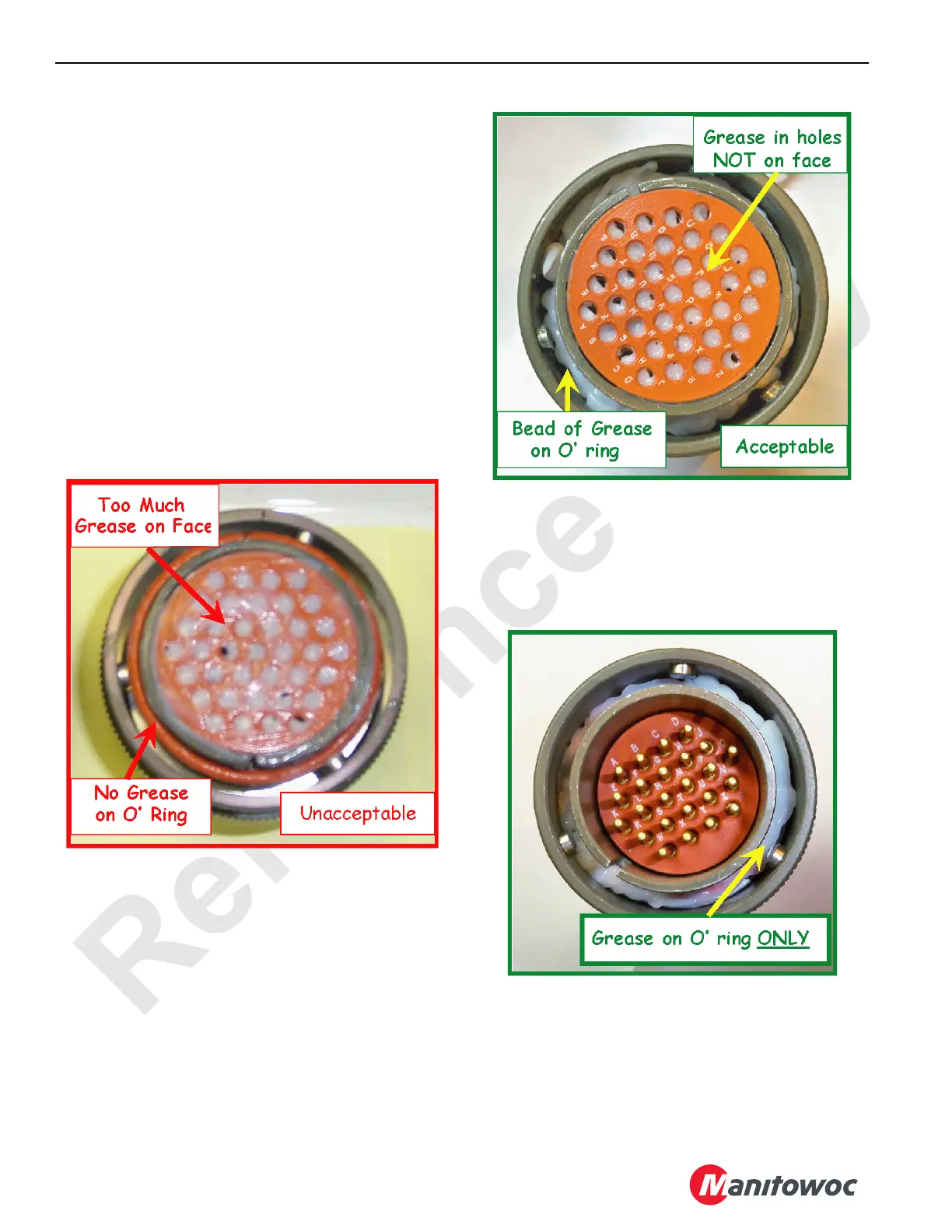

FIGURE 3-35
FIGURE 3-36
FIGURE 3-37
