HYDRAULIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
2-8
Published 05-09-17, Control # 014-28
b. Using handle provided, lift filter element out of body
and discard element.
Do not attempt to clean or reuse element.
Do not operate crane without charge filter elements
installed.
5. Lubricate O-ring at both ends of new element with clean
hydraulic oil and securely install element over stem in
base.
6. If necessary, replace O-ring and back-up ring in cover.
7. Reinstall cover and securely tighten handle.
Disregard steps 8 and 9 if you are also changing oil.
8. Remove vent plug from filter cover.
9. Apply 3-5 psi (.21-.35 bar) owner supplied air pressure
to air valve (4a) or coupler (4b) in side of hydraulic tank.
Some air will leak from breather cap.
10. Reinstall and securely tighten vent plug when oil starts
flowing from vent port.
11. Disconnect air supply.
12. Start engine and allow hydraulic system to return to
normal operating pressure and temperature. Check filter
cover and plug for leaks. Securely tighten as required.
13. Stop engine, check tank level, and refill as required.
Filter 2 (Return)
See Figure 2-1 and Figure 2-8 for the following procedure.
Replace return filter elements when FILTER 2 fault comes on
and at each oil change interval.
1. Stop engine.
2. Clean outside of filter head in area around cover.
3. Current production filter assemblies:
a. Remove fill cap. Use care not to damage O-rings.
Fill cap has a hexagon stud for easy removal.
b. Twist element handle counter-clockwise and pull
filter element out of body and discard element.
Do not attempt to clean or reuse element.
Do not operate crane without return filter elements
installed.

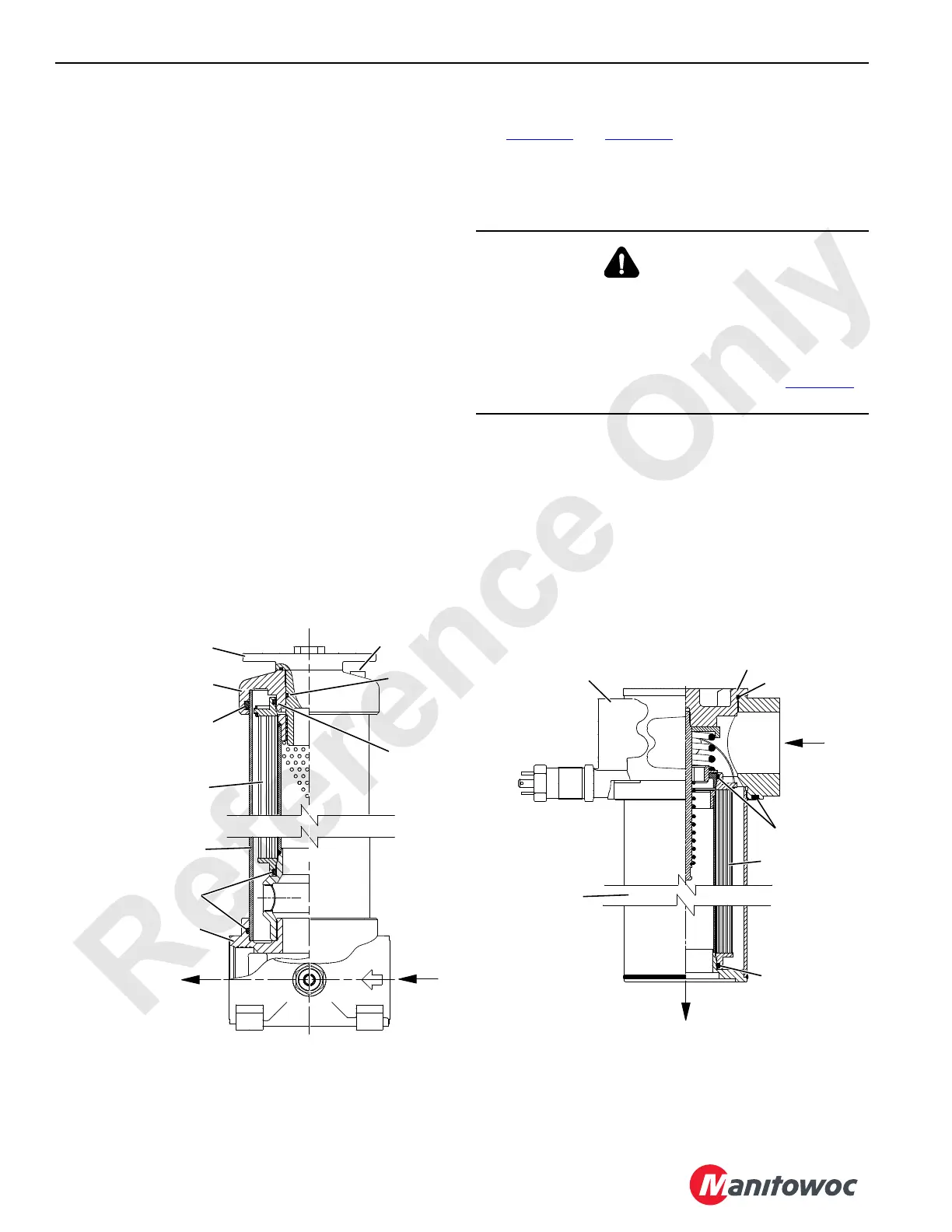

FIGURE 2-7
Cover
Element
O-Ring and
Back-Up Ring
O-Ring
Outlet
Inlet
O-Rings
Body
Base
O-Ring
Handle and Cover
are integral parts.
A00928
Vent Plug
Past Production
Charge Filter Assembly
is Shown (Current
Production is Omitted)
WARNING
Burn Hazard!
Oil in hydraulic tank may be under pressure and
extremely hot.
Hot oil can escape when you remove either filter cover.
RELIEVE PRESSURE through air valve (4a, Figure 2-1
)
on tank before servicing.
FIGURE 2-8
A00651
Cover
Element
Inlet
Body
O-Ring
O-Rings
Head
O-Ring
Outlet
to Tank
Past Production Return
Filter Assembly is Shown
(Current Production is
Similar)
