POWER TRAIN 16000 SERVICE/MAINTENANCE MANUAL
7-8
Published 05-09-17, Control # 014-28

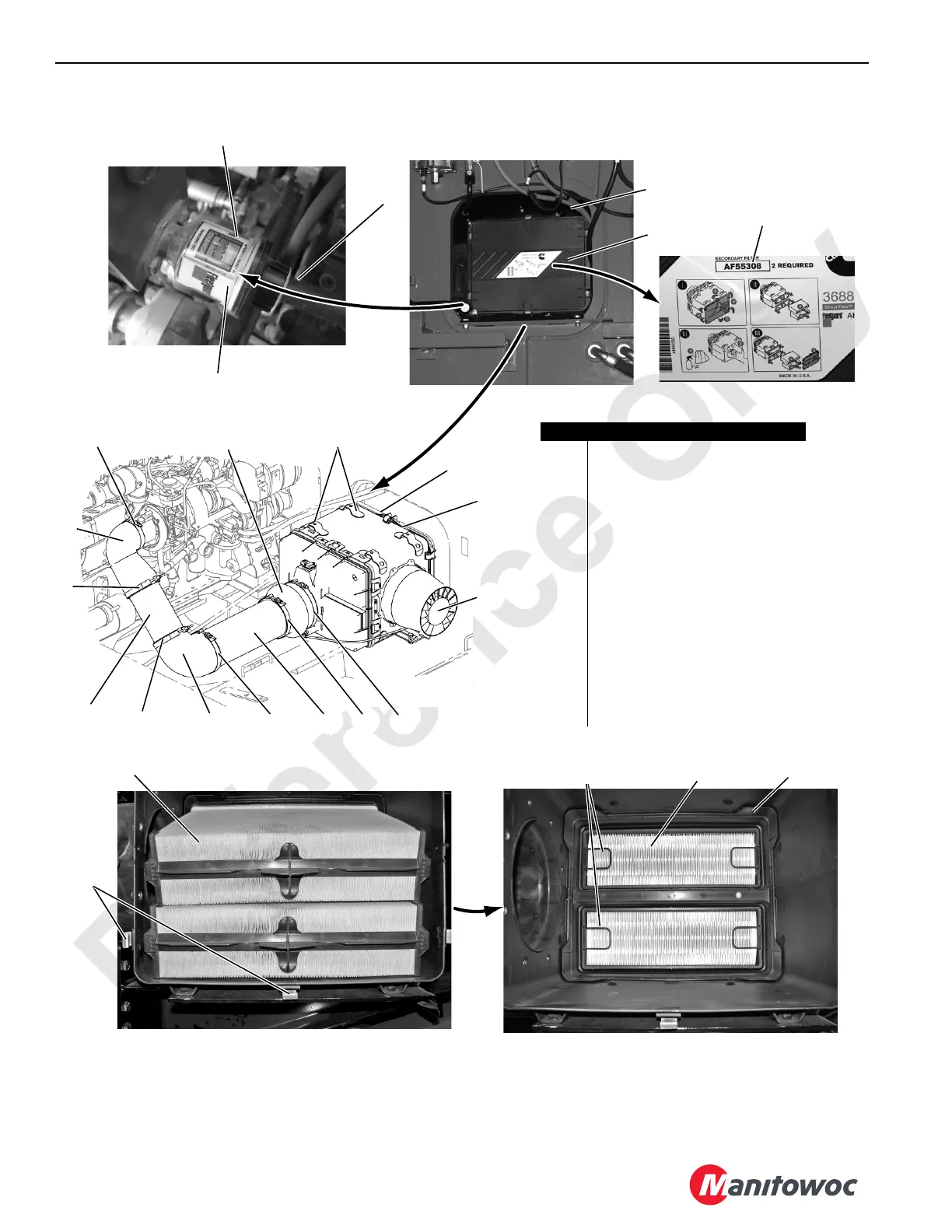

FIGURE 7-4
Item1 Description
1 Air Cleaner Assembly
1a Service Cover
1b Latch (6)
1c Primary Filter (2)
1d Secondary Filter (2)
1e Housing
2 Steel Tube (2)
3Clamp (6)
4 Straight Adapter Fitting
5 Rubber Elbow Reducer (2)
6Engine Intake
7 Mounting Lugs (8)
8 Service Indicator
8a Service Window
8b Reset Button
9 Decal With Service Instructions
8
8b
8a
1b
32
3
3
1
4
3
1a
7
AIR CLEANER — TIER 4 ONLY
1
1a
1c
1d
Removal Tabs
1e
1b
2
3
3
5
5
6
9
81013186-1
IMG 7153
IMG 7152
