16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
Engine

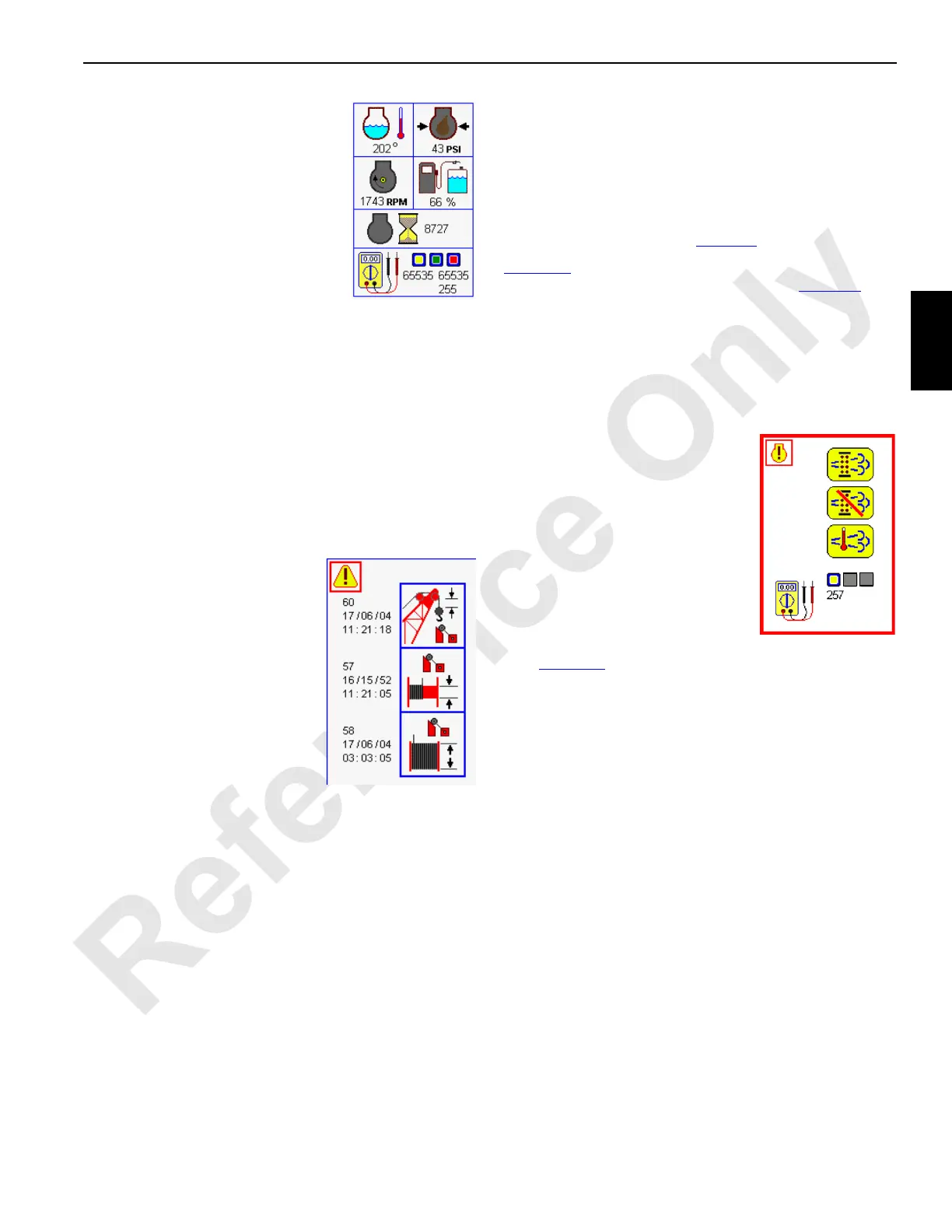

Engine data box displays the following
engine items:
• Engine coolant temperature should
be below 204
°F (96°C)
• Engine oil pressure should be
above 15 psi (1,03 bar)
• Engine speed in RPM: 1050 RPM
low idle 1,800 RPM high idle
• Fuel level in percent of fuel in main
tank
• Engine hours displays the total number of hours engine
has been run.
• Diagnostic box with engine manufacturer’s fault code/
flash code. See engine Owners Manual for description
of fault codes.
MAX-ER (Optional)
MAX-ER data box displays the MAX-ER wheel position icons
(not shown). See MAX-ER Operator Manual for complete
MAX-ER attachment information.
Faults
The fault data box displays the fault
icon with the fault number, date, and
time of day listed in the order they
occurred.
When one or more faults are
enabled, an alarm turns on to warn
the operator. The yellow alert
symbol is displayed on active
screen if a fault occurs. You shall go
to Information screen to identify the
fault. When the fault data box is selected, the screen scrolls
through the current faults one icon at a time. The fault history
goes back in time to review past faults.
Press the Enter button to access level 2 and use Select
buttons to view past fault history. Press the Exit button to exit
the fault screen. The alarm turns off when the cause of fault
is corrected. Depending on the configuration, not all listed
faults are active (see faults in Table 3-8
).
Table 3-8
lists all the faults that can appear in the fault
screen. Some of the fault items shown in Table 3-8
may
not be on your crane.
Faults indicated with a asterisk (
*) will stop crane operation
in the direction of the fault. Corrective action must be
taken before continuing crane operation. The other faults
will not stop crane operation. Correct all faults as soon as
possible.
Engine Prompt — Diesel
Particulate Filter
The Engine Prompt detail screen
displays the three Diesel Particulate
Filter (DPF) conditions (see Engine
Operation and Maintenance Manual):
• DPF Regeneration In Progress
• DPF Regeneration Inhibited
• High Exhaust System
Temperature
(See page 3-41
for details on engine prompts).
