ELECTRIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
3-38
Published 05-09-17, Control # 014-28

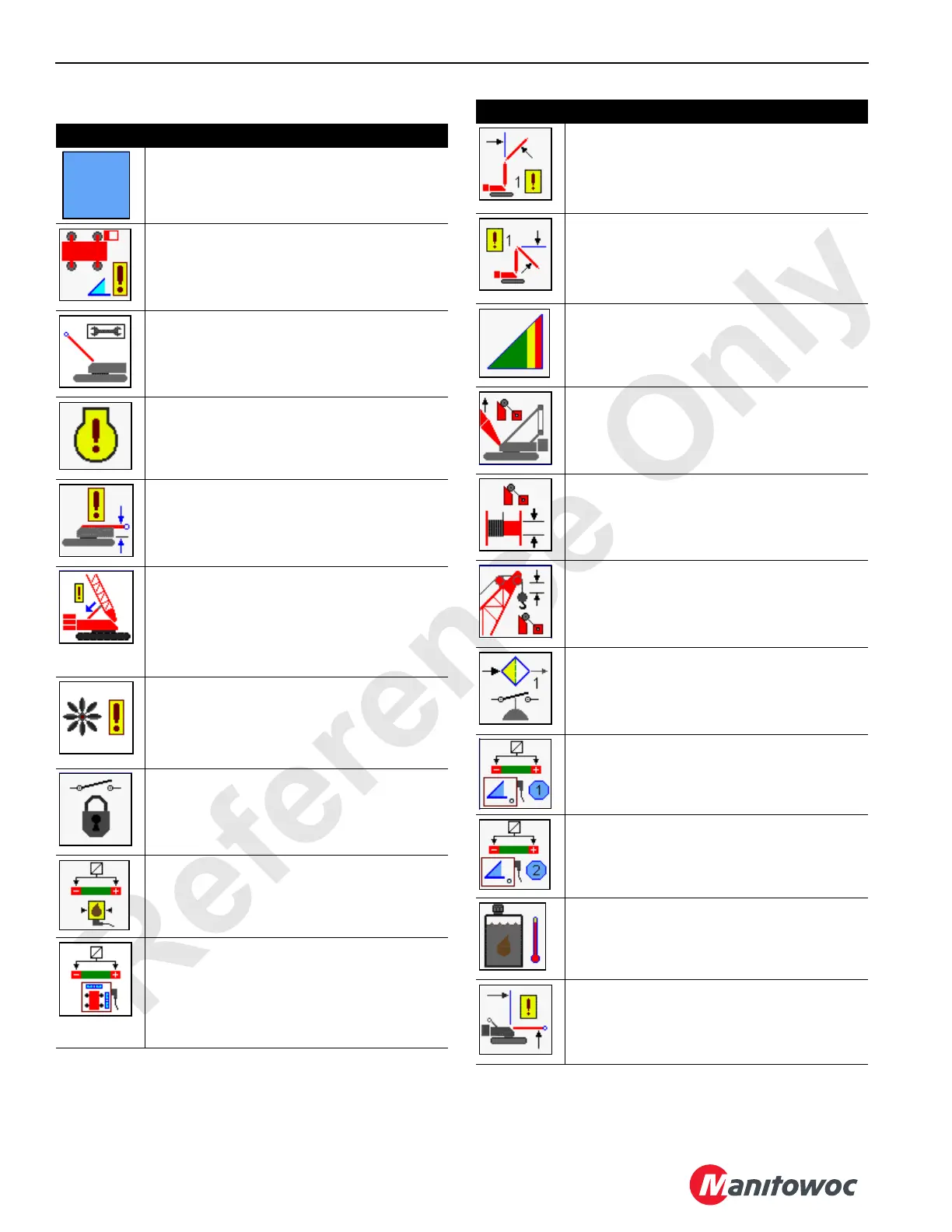

Table 3-8. Faults
Item Description
0-No Fault.
4-Out of Level (
cranes with software version
FCN 2.654 and newer
) — Indicates that crane
is approximately 3° to 4-1/2° out of level while
jacking upperworks with setup remote control.
6-Setup Mode — Indicates setup mode is on
(Liftcrane Mast Capacities Chart selected in
configuration screen of RCL or luffing jib setup
mode, if applicable, is on.
10-Engine Fault* — See engine data box on
Information screen. See engine Owners Manual
for diagnostics fault codes.
13-Mast 2 Degree Fault* — Stops down
movement of live mast when lowering to
transport position. Complete mast lowering
manually with hand-held wireless remote.
27-Mast Stop Retracted* — applies to
software
version M002066 and newer.
MAX-ER lift and
boom hoist up will be disabled. This fault cannot
be bypassed. This fault will also activate if Node-
6 electric cables are not connected properly. See
MAX-ER Operator Manual.
30-Hydraulic Fan — Indicates a short in the fan
circuit or the pressure senders (transducers) are
out of range. Fault 41 (Transducer Voltage) or
Fault 84 (Digital Output Disable) should light at
the same time, indicating the problem.
34-Function Parked* — Function inoperable
because it is parked. Turn indicated park switch
off or sit down in operator’s seat.
41-Transducer Out of Range — One or more
hydraulic pressure sensors is out of range.
43-Out of Level Sensor (
cranes with software
version FCN 2.654 and newer
) — Indicates
that crane is approximately 4-1/2° out of level
while jacking upperworks with ALL switch on
setup remote control. Relevel crane with
individual jacking switches on remote control.
49-Jib Maximum Up 1* — Program limit stops
luffing jib when jib is raised to maximum working
angle. Lower luffing jib. Can bypass this limit to
raise jib to Maximum Up 2 limit.
50-Jib Maximum Down 1* — Program limit
activates fault alarm. Operation does not stop.
You can lower luffing jib an additional 3° to
Luffing jib maximum down 2 limit (67).
54-Rated Capacity Indicator/Limiter* — Stops all
drums. Land load or raise boom/jib.
55-Boom Up* — Limit switch stops boom in up
direction. Move boom in lowering direction.
57-Minimum Bail* — Limit switch stops drum (x)
from lowering or down direction. Move drum in
hoisting or up direction.
60-Block Up Limit* — Limit switch stops load
drum and boom. Lower load or raise boom.
61-Filter 1 — Filter is dirty or plugged.
62-Filter 2 Replace element or clean filter.
63-Boom Angle Sensor — Boom angle sensor is
out of normal range (0.15 to 4.85 Volts).
64-Jib Angle Sensor — Luffing jib angle sensor
is out of normal range (0.15 to 4.85 Volts).
65-Hydraulic Fluid Temperature — Fluid
temperature in hydraulic tank is below 65°F
(18°C) or above 180°F (82°C).
66-Mast Too Far Forward* — Live mast is below
156°. Raise live mast. Further lowering is not
intended - mast will fall.
