POWER TRAIN 16000 SERVICE/MAINTENANCE MANUAL
7-20
Published 05-09-17, Control # 014-28

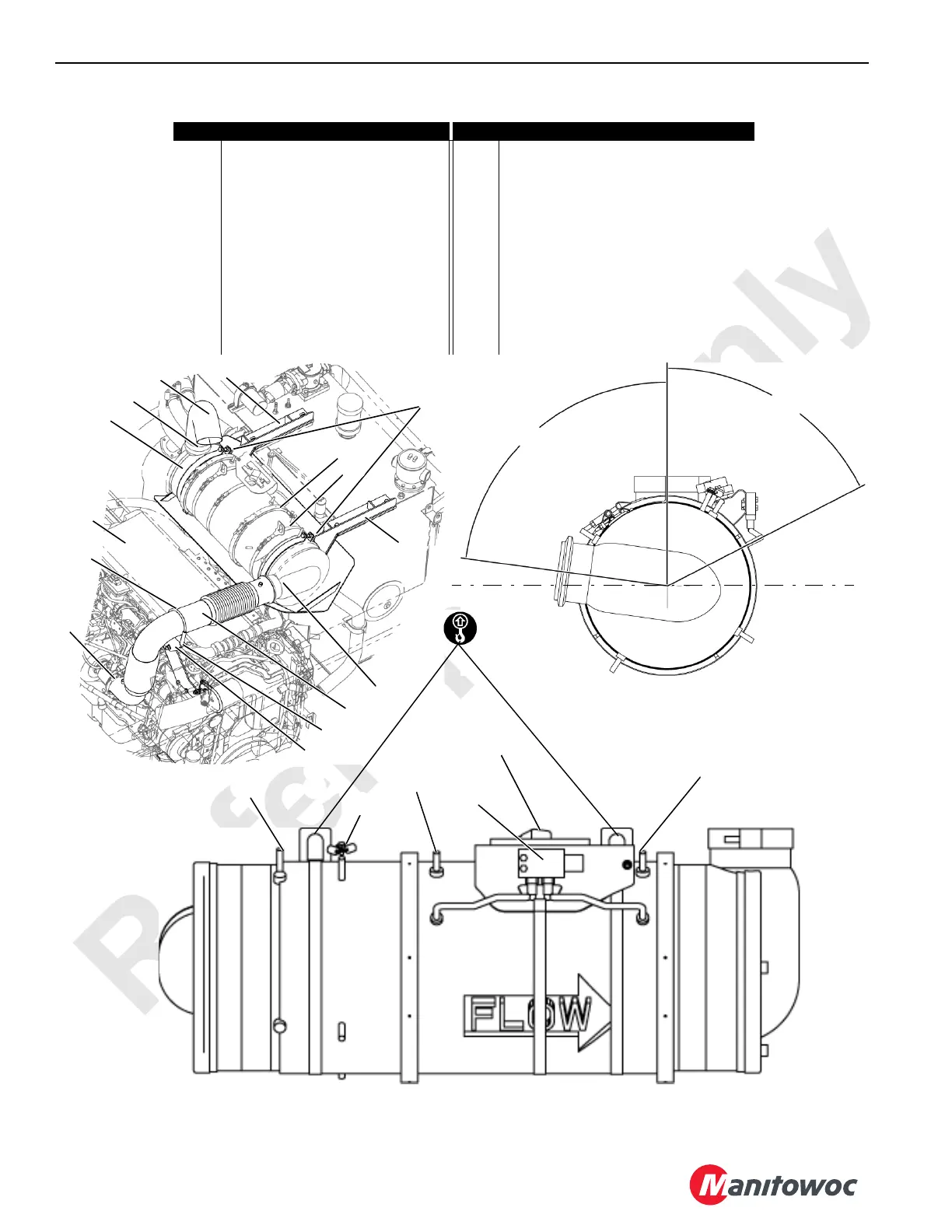

Diesel Particulate Filter Component Overview
FIGURE 7-16
Item Description Item Description
1 Engine 13 Tube Support Brackets (2)
2 Diesel Particulate Filter 14 Hex-head Cap screws (4)
3 Exhaust Filter Mounts (2) 15 Locknuts (6)
4 Mounting Straps (2) 16 Wiring Harness
5 V-Band Clamp 17 U-bolt Guillotine Clamp
6 Clamp 18 P-Clamps (2)
7 Inlet Tube Assembly 19 V-Band Clamp (Inlet to DPF)
8 Outlet Tube Assembly 20 Band Clamp (Lifting Hook)
9 Gasket 21 Exhaust Gas Temperature Sender
10 Gasket 22 Hex-head Cap screws (2)
11 V-Band Clamp 23 Washers (2)
12 Clamp
1
2
4
6
5
7
9
13
22
17
82.1°
63°
Temp 1
Temp 3 Sender
Temp 2
21
Pressure
Sender
(Wiring harness
attaches here)
18
16
11
12
3
3
19
20
10
14
15
23
15
8
81013211_DPF-a
81013211_DPF
81013190
