Manitowoc 16000 Service And Maintenance Manual

Reference Only
Manitowoc Published 05-09-17, Control # 014-28 1-9
16000 SERVICE/MAINTENANCE MANUAL INTRODUCTION
1
Left Side
Item Description Item Description
1 Left Front Jacking Solenoid 19 Drum 2 to Drum 1 Diverting Solenoid
2 Right Front Jacking Solenoid 20 Drum 1 to Drum 2 Diverting Solenoid
3 Mast Raising Cylinders Solenoid 21 Drum 4 Pawl Solenoid
4 Rigging Winch Solenoid 22 R Travel to Drum 4 Diverting Solenoid
5 Right Rear Jacking Solenoid 23 L Travel to Drum 3 Diverting Solenoid
6 Left Rear Jacking Solenoid 24 Drum 4 to Drum 5 Diverting Solenoid
7 Node-4 Controller 25 Pressure Reducing Valve
8 Fuel Level Gauge 26 Drum 1 Pressure Sender
9 Fuel Fill 27 Boom/Mast A Pressure Sender
10 Node-3 Controller 28 Boom/Mast B Pressure Sender
11 Engine Oil Dipstick 29 Left Travel A Pressure Sender
12 Left Rear Jack 30 Left Travel B Pressure Sender
13 Hydraulic Fill Port 31 Right Travel A Pressure Sender
14 Rear Rotating Bed Pin Solenoid 32 Right Travel B Pressure Sender
15 Boom Hinge Pin Solenoid 33 Swing Right Pressure Sender
16 Cab Tilt Cylinder Solenoid 34 Swing Left Pressure Sender
17 Front Rotating Bed Pin Solenoid 35 Drum 2 Pressure Sender
18 Counterweight Pin Solenoid 36 Accessory Pressure Sender

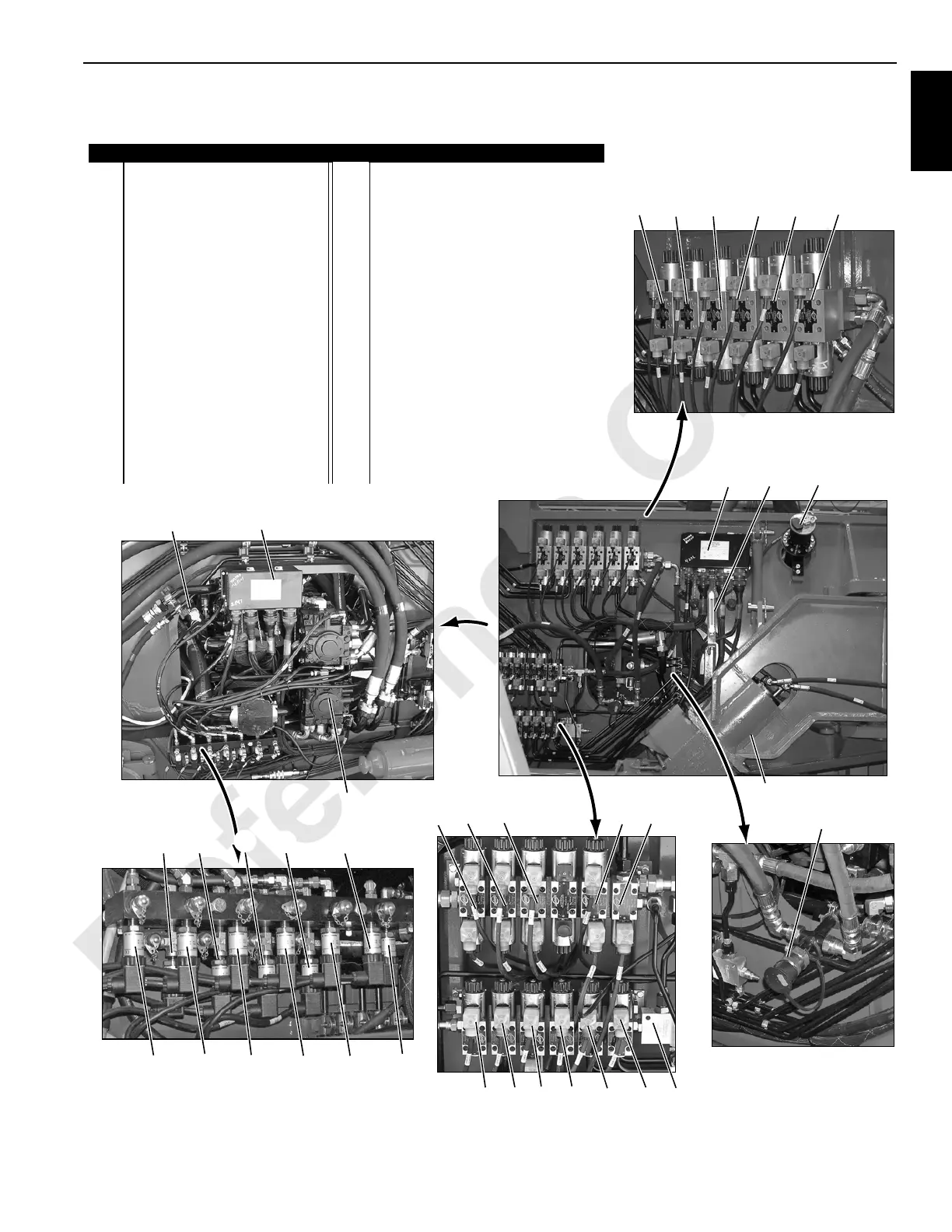

FIGURE 1-5
P2269
P2301
P2296
2
4
6
8
12
3
1
5
9
P2251
7
P2307
P2308
13
10
21
20
23
22
24
2519
17
18
16
14
15
26
28
27
29
30
36
35
31
33
32
34
11
See Section 2 for
Pump Locations
Node-3 Past Production Shown
Current Production Inside Rotating Bed
Fuel Fill Past Production Shown
Current Production Similar
