INTRODUCTION 16000 SERVICE/MAINTENANCE MANUAL
1-10
Published 05-09-17, Control # 014-28
Left Side

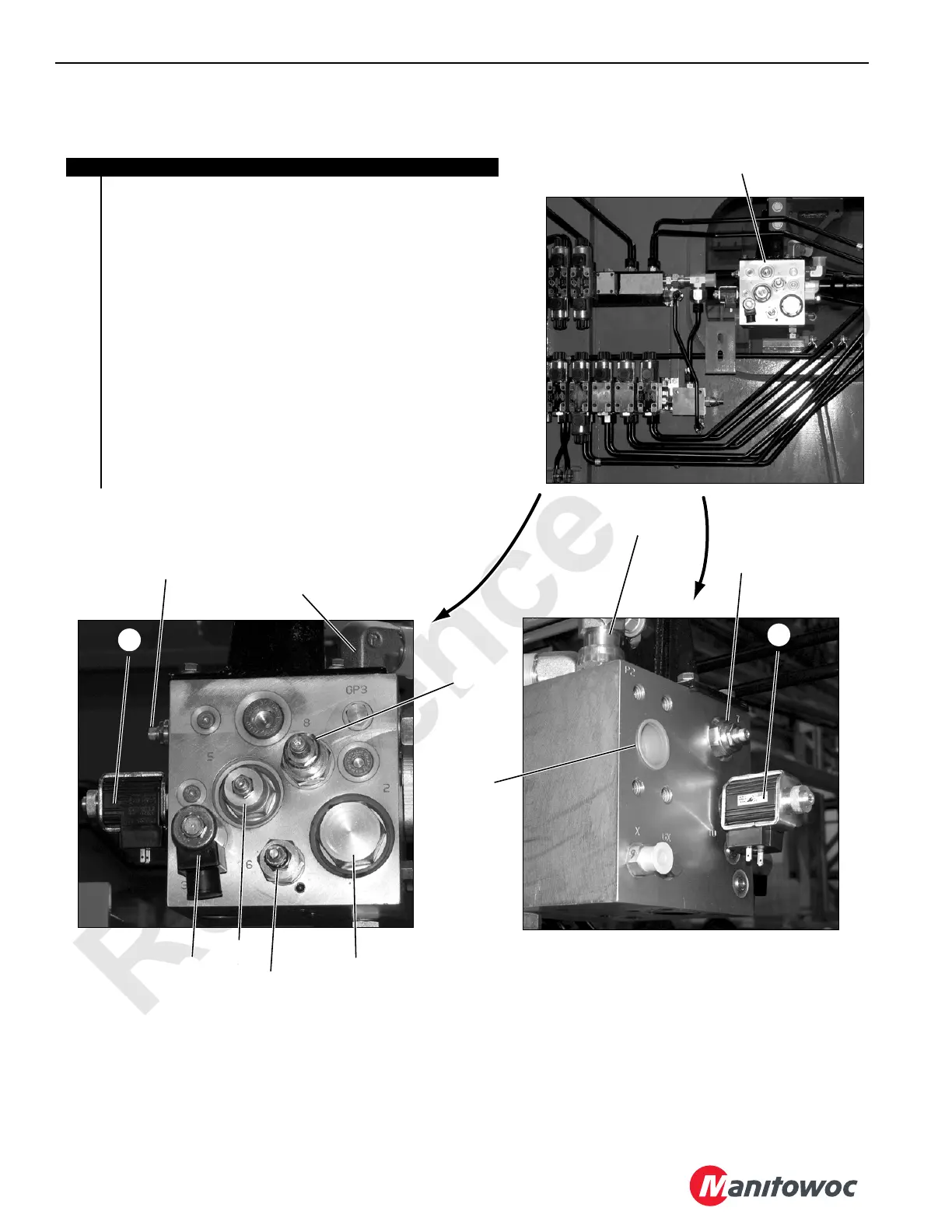

Item Description
1
Accessory System Manifold (S/N 16001142 and newer)
for MAX-ER, Engine Cooling Fan, Accessory High Pressure, and
Accessory Low Pressure
2
500 - 5,000 psi (35 to 345 bar) Accessory System Proportional
Relief Valve HS-68
3 3,100 psi (214 bar) Relief Valve Fixed
4 24 volt, 3-way, 2 Position Hydro Fan Solenoid Valve
5 Logic Relief Element Set at 12 psi (.8 bar)
6 Pressure Reducing Valve Cartridge Set at 580 psi (40 bar)
7 Pressure Relieve Valve Cartridge Set at 5,000 psi (345 bar)
8 Sequence Valve with Internal Pilot
9 P2 Port for Pressure Supply from Variable Accessory Pump
10 P3 Port for Pressure Supply from Fixed Gear Accessory Pump
11 OUT Port to Fan Motor
12 P1 Port (not shown) Pressure Supply to Accessory and MAX-ER
13 P4 Port (not shown) Pressure Supply to Lower Accessory System
14 T Port (not shown) Return to Tank
15 P5 (not shown) Supply to Accessory System Pressure Sender
1
2
2
3
3
4
5
7
6
8
9
10
11
P2439a
P2350a
P2351a
FIGURE 1-6
