DISPLAYS
Display Controls
See Figure 3-7 for the following procedure.
The Menu screens for the
RCL and crane is displayed with
select buttons. Use the following controls to operate the
display screens.
1 – Rated Capacity Indicator (RCI) Display
Rated Capacity Indicator/Limiter (RCI) display is on the left
side of front console. (See
RCI document for operation.)
2 – Main Display
The main display is on the right side of the front console
(these screens are described in this section).
3 – Display Touchpad Controls
Contains all the screen controls required to operate the RCI
display and Main display screens.
4 – RCI Select Buttons
4a. Select Screen 1 (RCI)
4b. Select Screen 2 (Main Display)
5 – Select Buttons
Use the green select touch pad buttons to select screen
images, icons or data boxes, and values or icons within data
boxes.
5a. Select Scroll Up
5b. Select Scroll Down
6 – Enter/Exit Buttons
Use the red touch pad buttons to enter (6a) or exit (6b) a
screen or to change the screen’s operating level.
6a. Enter Button
6b. Exit Button
Use Enter button (6a) to enter a screen or go to the next
level. Use Exit button (6b) to exit a screen or level.
7 – Confirm Button
Use the purple Confirm touch pad button to start certain test
routines from the screen and to confirm data when required.
Display Brightness and Color Contrast
To adjust the display brightness and contrast, proceed as
follows:
1. Depress the desired Display button (4a or 4b) and the
Confirm button (7) at the same time.
2. Release the Confirm button (7) first and then release the
Display Select button (4a or 4b).
3. Press the top Select button (5a) to lighten the display, or
press the bottom Select button (5b) to darken the
display.
4. Press the Enter button (6a) to increase color intensity, or
press the Exit button (6b) to decrease the color intensity.
5. Press the Confirm button (7).
Restore Factory Default Display Settings
This procedure only applies to cranes with program number
16000 FCN 2.039 and newer.
1. Select the screen to adjust by holding the Confirm button
(7) and the desired Display Select button (4a or 4b).
2. Release the Confirm button first (7) and then release the
Display Select button (4a or 4b).
3. Press both the Select Scroll Up (5a) and Select Scroll
Down (5b) buttons at the same time.
4. Press the Confirm button (7)
5. The selected Display (1 or 2) is reset to factory default
settings.
Blank Display
If a display goes blank on cranes with program number
16000 FCN 2.039 and newer, try the following procedure to
restore the display. Do not return a display to Manitowoc
until this procedure has been tried.
1. Press the desired Display button (4a or 4b) and the
Confirm button (7) at the same time.
2. Release the Confirm button (7) first and then the Display
button (4a or 4b).
3. Press Select buttons (5a and 5b) at the same time to
return to the factory default display settings.

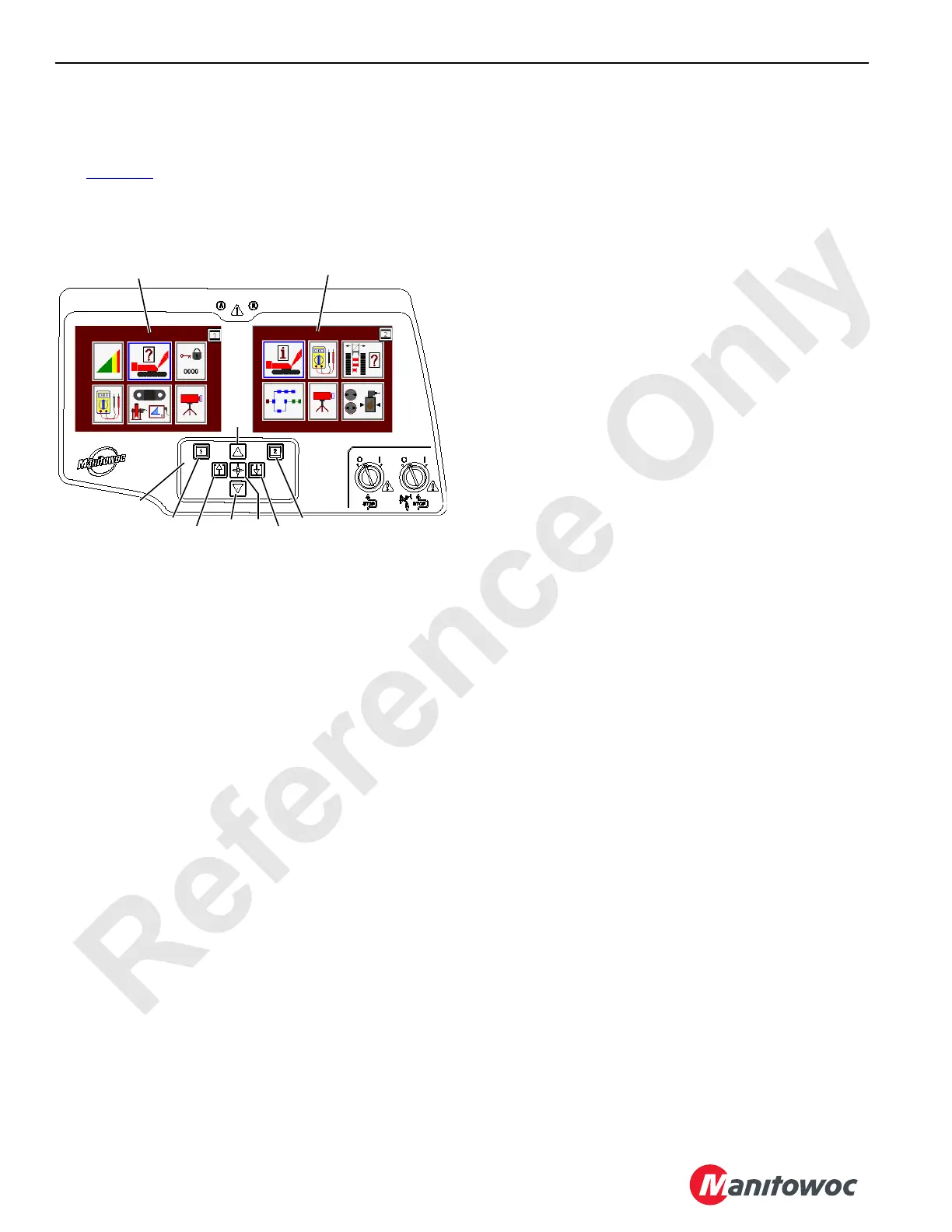

FIGURE 3-7
D16-01
21
3
5a
5b
6b
4a
6a
4b
7
