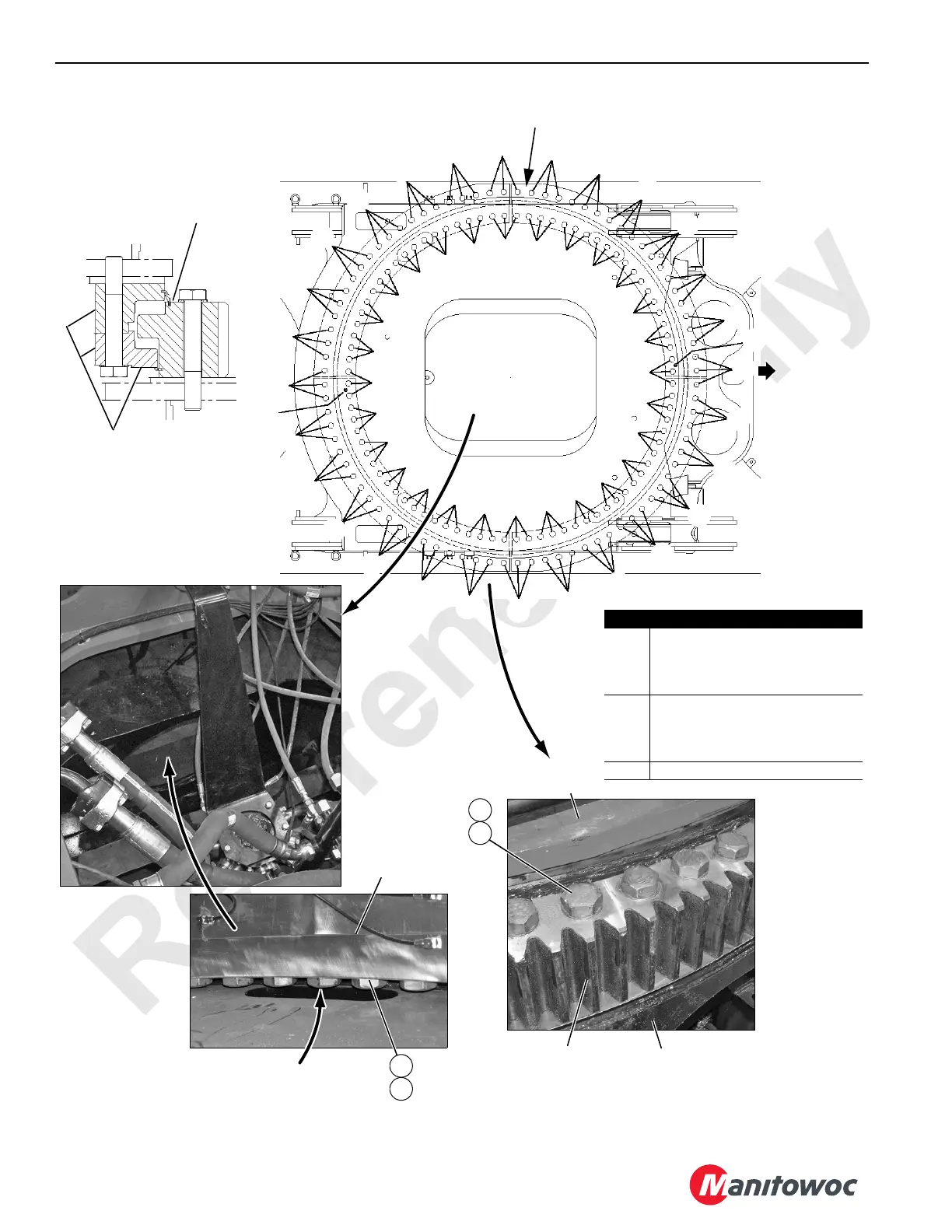

FIGURE 8-1
Item Description
A Heavy Hex Head Bolt –
1-1/2 inch- 6 UNRC x 10 inch Long
SPECIAL Grade
84 Each Ring
B Special Flat Steel Washer –
2-5/8 inch OD x 1-9/16 inch ID
84 Each Ring with
Chamfer Toward Bolt
DDowel Pin
A10521
Numbers Indicate
Tightening Sequence
FRONT of
Rotating Bed
and Carbody
Access to inner ring
bolts is through hole
in center of rotating
bed and carbody.
Adapter
Frame
Carbody
Outer
Ring
Inner
Ring
Access Bolts
from Below
A
B
02291
P2292
P293
A
B
26
4
15
11
17
7
21
13
13
21
7
17
11
26
4
15
1
28
9
1
D
28
9
19
19
5
24
16
3
3
16
24
5
22
6
20
10
27
27
10
20
6
22
14
D
2
25
12
12
25
2
14
18
8
23
18
8
23
View A
See View A
S Stamped Here
on Inner Race
S Stamped Here
on Outer Race
