Manitowoc Grove GMK6300L-1

Operating elements for driving
3.1 Overview of the operating elements
3 - 28 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

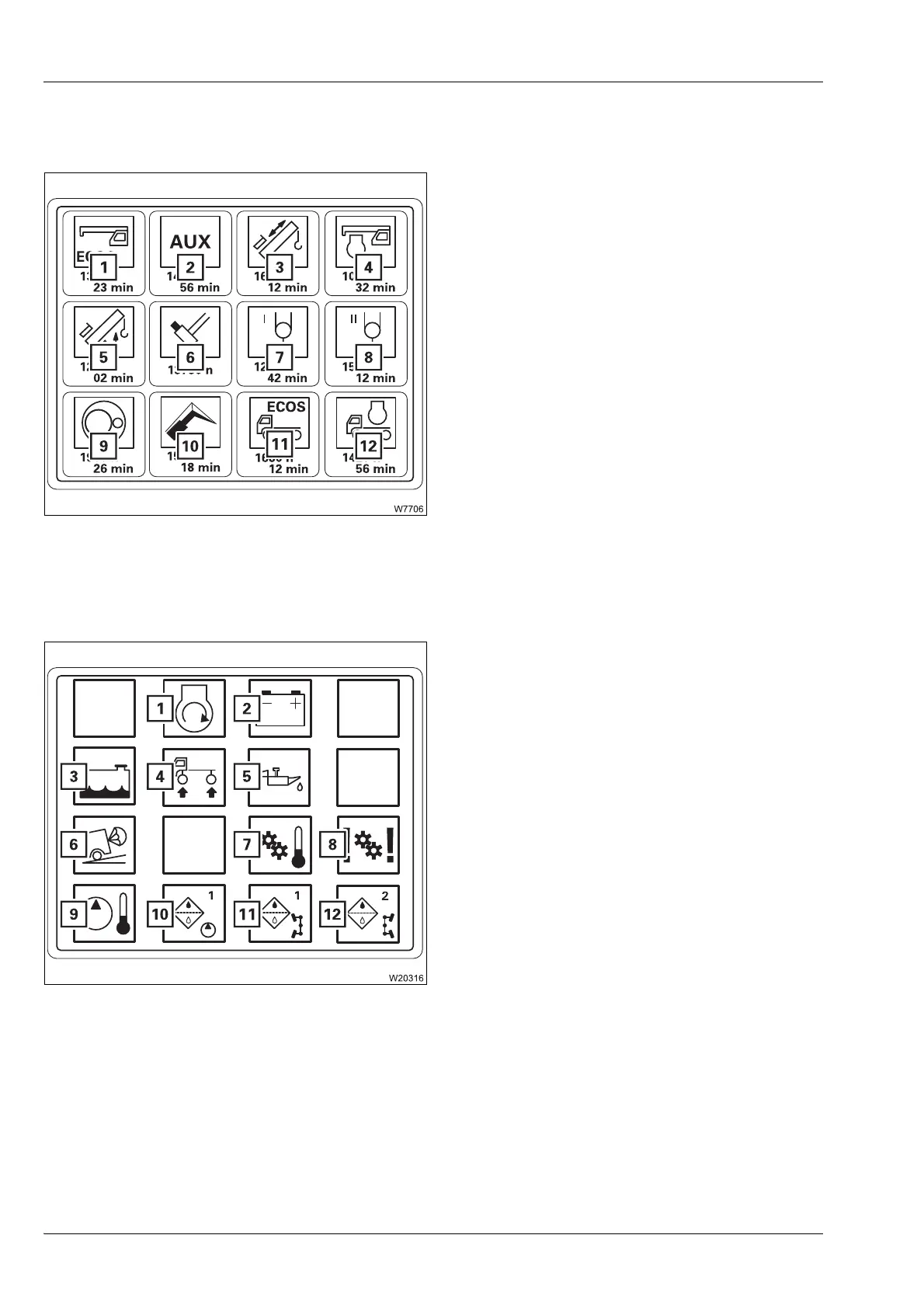

Operating hours
submenu
Description of the displays; à Displaying the operating hours, p. 5 - 25.
Warning submenu Description of the displays;
à Warning submenu, p. 5 - 48.
1 ECOS superstructure
2 Auxiliary drive gears
3 Telescoping mechanism
4 Engine for crane operation
5 Derricking gear
6 Locking system
7 Main hoist
8 Auxiliary hoist
1)
9 Slewing gear
10 Lattice extension
1)
11 ECOS – carrier
12 Engine for driving
1)
Additional equipment
1 Air intake inhibitor triggered
2 Voltage monitoring
3 Coolant level too low
4 Axle load or sideways tilt exceeded
5 Oil pressure too low
6 Transmission retarder too hot
7 Transmission oil too hot
8 Transmission shift lock
9 Hydraulic oil too hot
10 Replace hydraulic oil filter
11 Replacing the hydraulic oil filter of steering
circuit 1
12 Replacing the hydraulic oil filter of steering
circuit 2
