Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 57
xx.xx.xxxx
9.2 Short description of the operating elements
H
This section does not contain all the requirements that must be fulfilled for
several operating elements to be active.
If some operating elements do not work, first read the following chapters
which are referred to at the respective places before contacting
Manitowoc Crane Care.
9.2.1 Definition of direction information
Basic rule Direction information always depends on whether the carrier or the
superstructure is being operated.
On the carrier
The driver's cab is always at the front, which means that:
Forwards always means with the driver's cab leading,
Backwards always means with the rear lights on the carrier leading.
On the superstructure
The main boom head is always at the front, which means that:
Switches
For switches and buttons, the terms down and up are used.
Regardless of the fitting position (vertical, horizontal, diagonal, perpendicu-
lar or turned), the following always applies:
s
G
Risk of accident by operator error!
This section is not a complete operating manual. It only provides a general
overview of the functionality of the operating elements.
Before using the operating elements for the first time, read through the
following chapters and the safety instructions listed there.

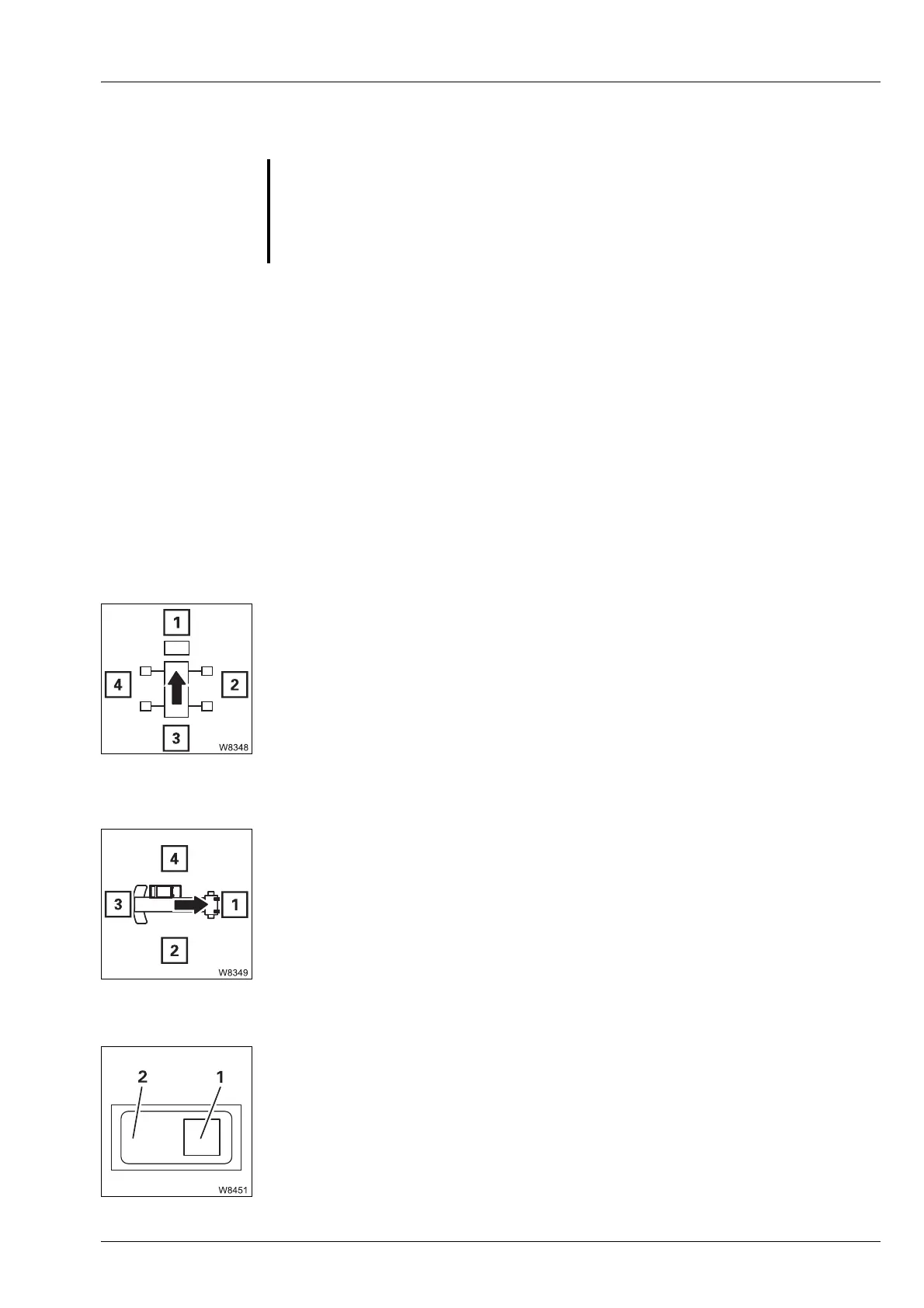

1: front 2: right
3: rear 4: left
1: front 2: right
3: rear 4: left
– Down: If (1) press – next to the symbol
–Up: If (2) press – opposite the symbol
