Manitowoc Grove GMK6300L-1

Operating elements for crane operation
9.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 51
xx.xx.xxxx

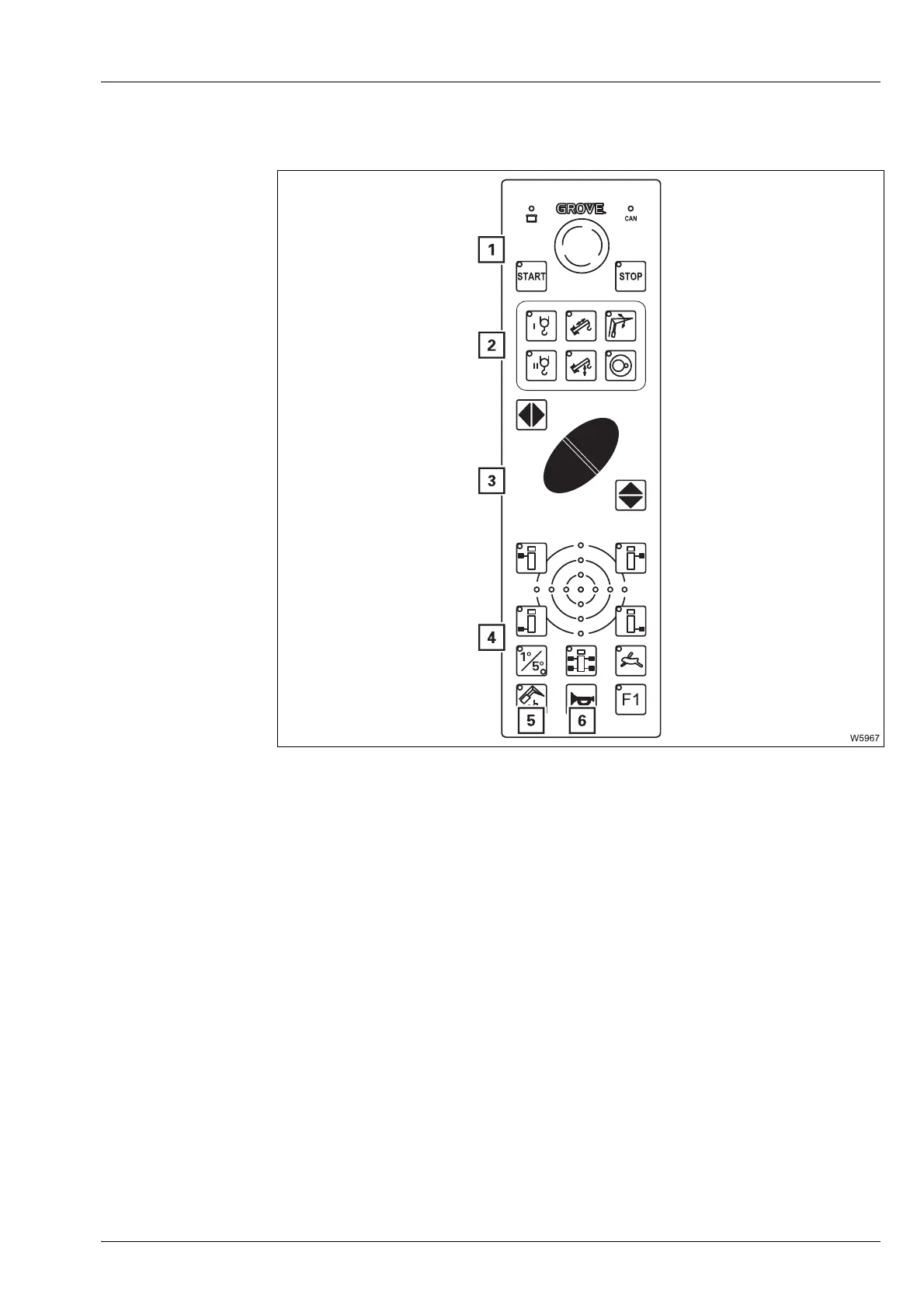

9.1.13 Hand-held control
H
Required connections for the various movements; à p. 9 - 114.
1 Engine control panel
à p. 9 - 115
2 Pre-select emergency operation
à p. 9 - 116
3 Function buttons
à p. 9 - 116
4 No function
5 No function
6 Horn
à p. 9 - 115
