6.5 Installing/removing outrigger beams
6 - 48 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

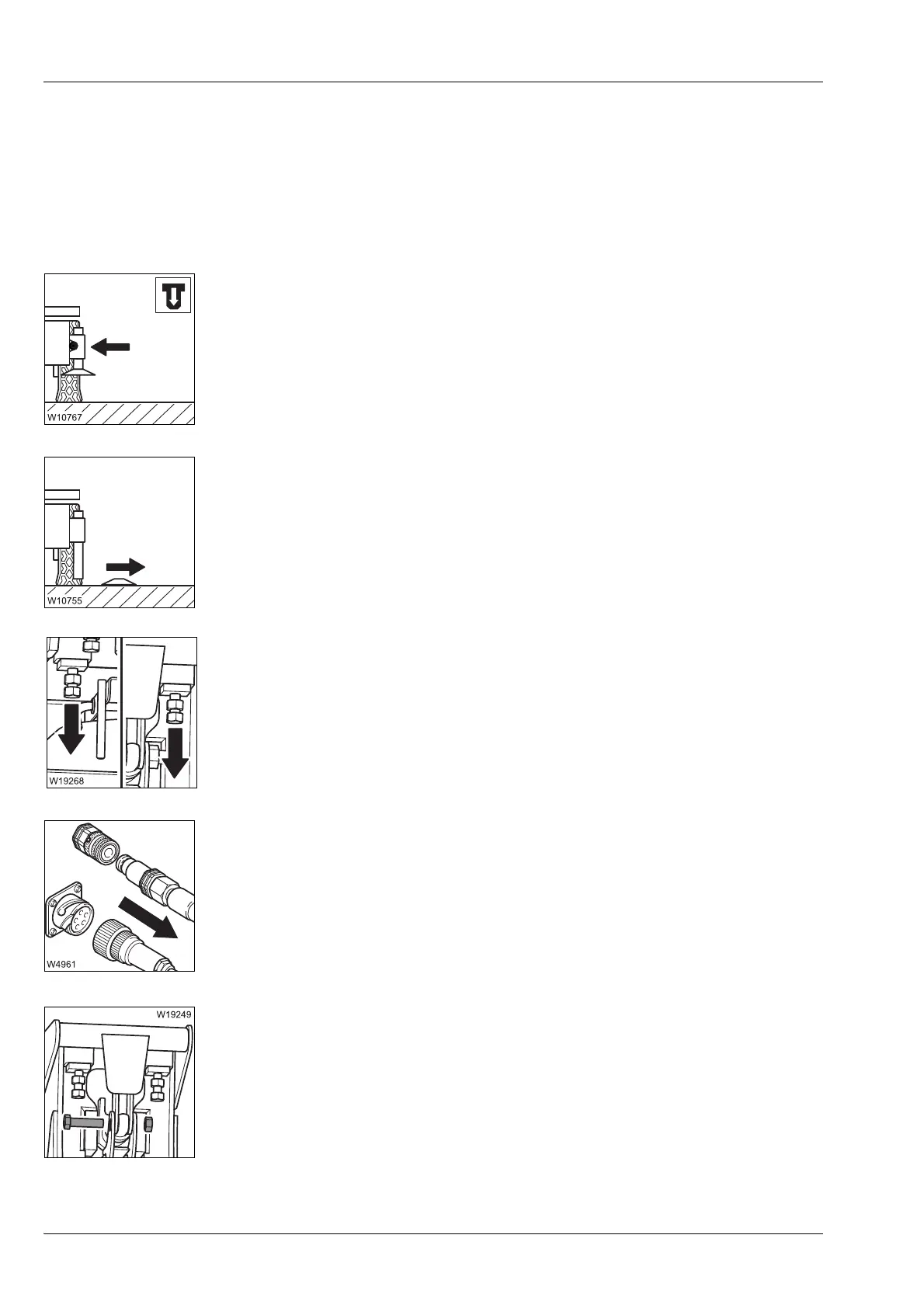

6.5.1 CHECKLIST: Removing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. Prepare the truck crane – label the outrigger beams, retract, release and
bolt them to each other;
à p. 6 - 52.
2. If necessary remove outrigger pad;
à p. 6 - 53.
3. Unscrew the spacer;
à p. 6 - 57.
4. – Disconnect hydraulic connections;
à p. 6 - 55.
– Separate the electrical connection if necessary;
à p. 6 - 56.
5. Release the connection to the support box;
à p. 6 - 59.
