Operating elements for crane operation
9.1 Overview of the operating elements
9 - 18 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
9.1.6 Control lever configuration
The truck crane can be equipped with two different control lever configura-
tions. The current configuration of the control levers is indicated by symbols
on the control levers.

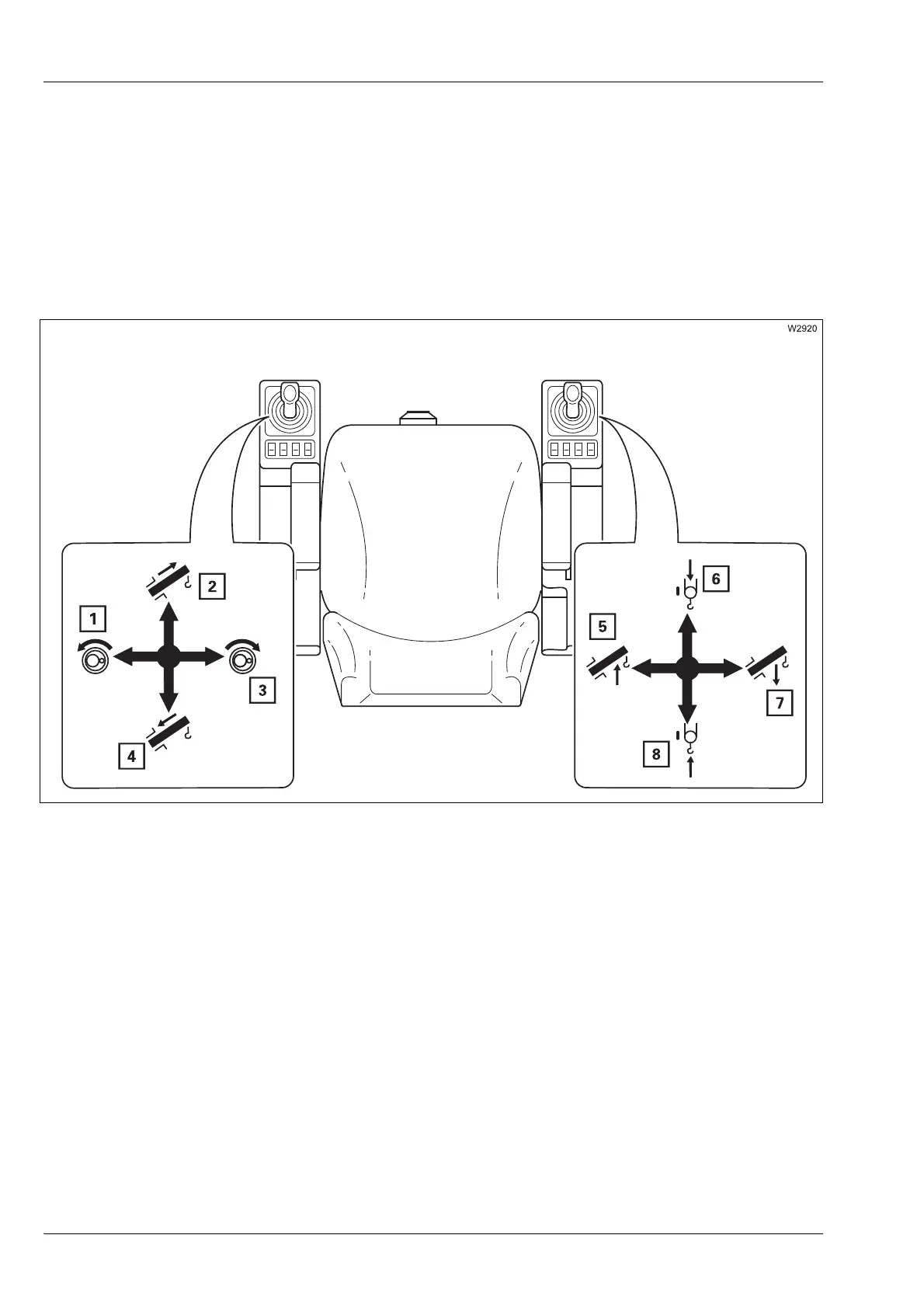

Version 1 In version 1, the left control lever is configured with the
Telescope function.
Left control lever Right control lever
1 Slew to the left 5 Raise
3 Slew to the right 7 Lower
2 Extending 6 Lower the main hoist
4 Retracting 8 Lift the main hoist
