Manitowoc Grove GMK6300L-1

Operating elements for crane operation
9.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 17
xx.xx.xxxx
Right

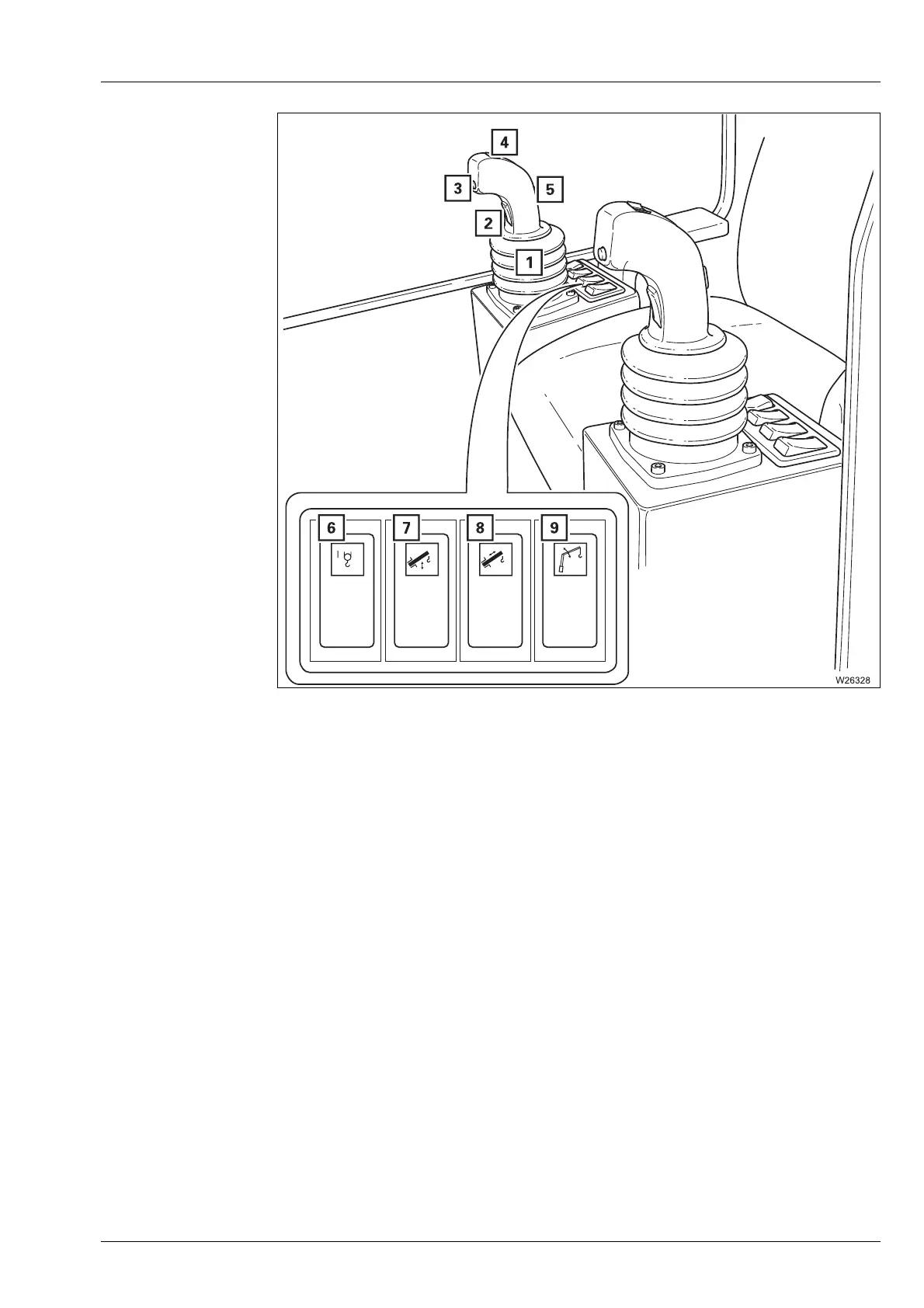

1 Right control lever (configuration according to
execution)
à p. 9 - 18
2 Dead man's switch
à p. 9 - 62
3 Horn button
4 Hoist high-speed mode on/off
à p. 9 - 79
5 Main hoist slewing indicator
à p. 11 - 55
6 Main hoist on/off
à p. 9 - 78
7 Derricking gear on/off
à p. 9 - 84
8 Telescoping mechanism on/off
à p. 9 - 86
9 Derrick lattice extension on/off
1), 2)
1)
Additional equipment
2)
à Operating Instructions Lattice Extension
