Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 79
xx.xx.xxxx

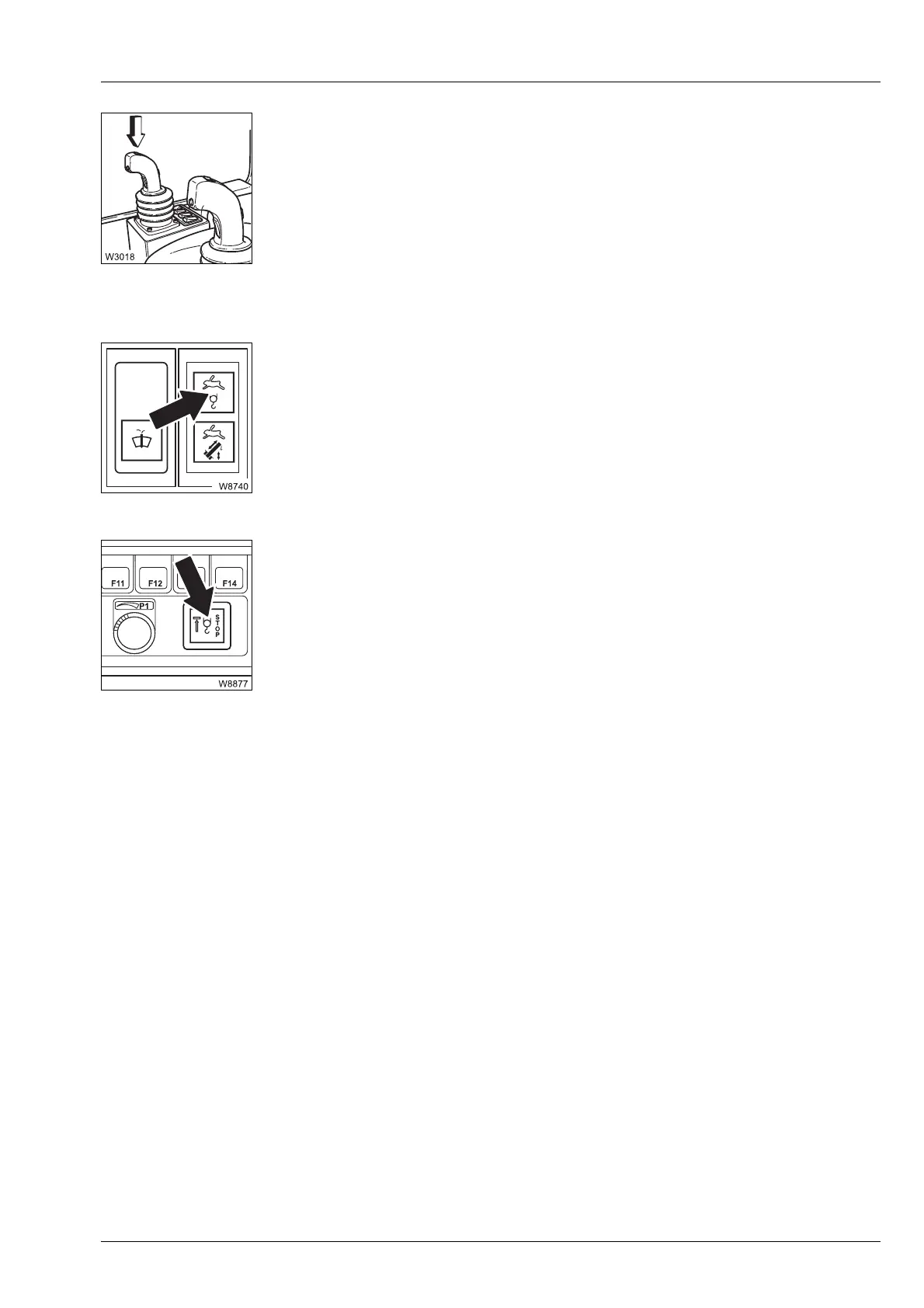

Hoist high-speed mode on/off
The parking brake must be applied.
High speed monitoring for the hoists
Warning for lifting limit switch shutdown
–Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to right
or once to left:
High-speed mode off
à p. 11 - 95
–On: High-speed mode on
– Off: High-speed mode off
à p. 11 - 95
–On: Lifting limit switch triggered – hoist stops
– Flashing: Lifting limit switch triggered – shutdown overridden
– Off: Lifting limit switch not triggered
à p. 11 - 60
