6.7 Rigging the auxiliary hoist
You need the following equipment:
– suitable lifting gear and guide ropes with sufficient load bearing capacity;
à Dimensions and weights of removable parts, p. 1 - 10,
– a separate vehicle,
– if necessary, a rigging frame for rigging counterweight combinations up
to max. 26 t.

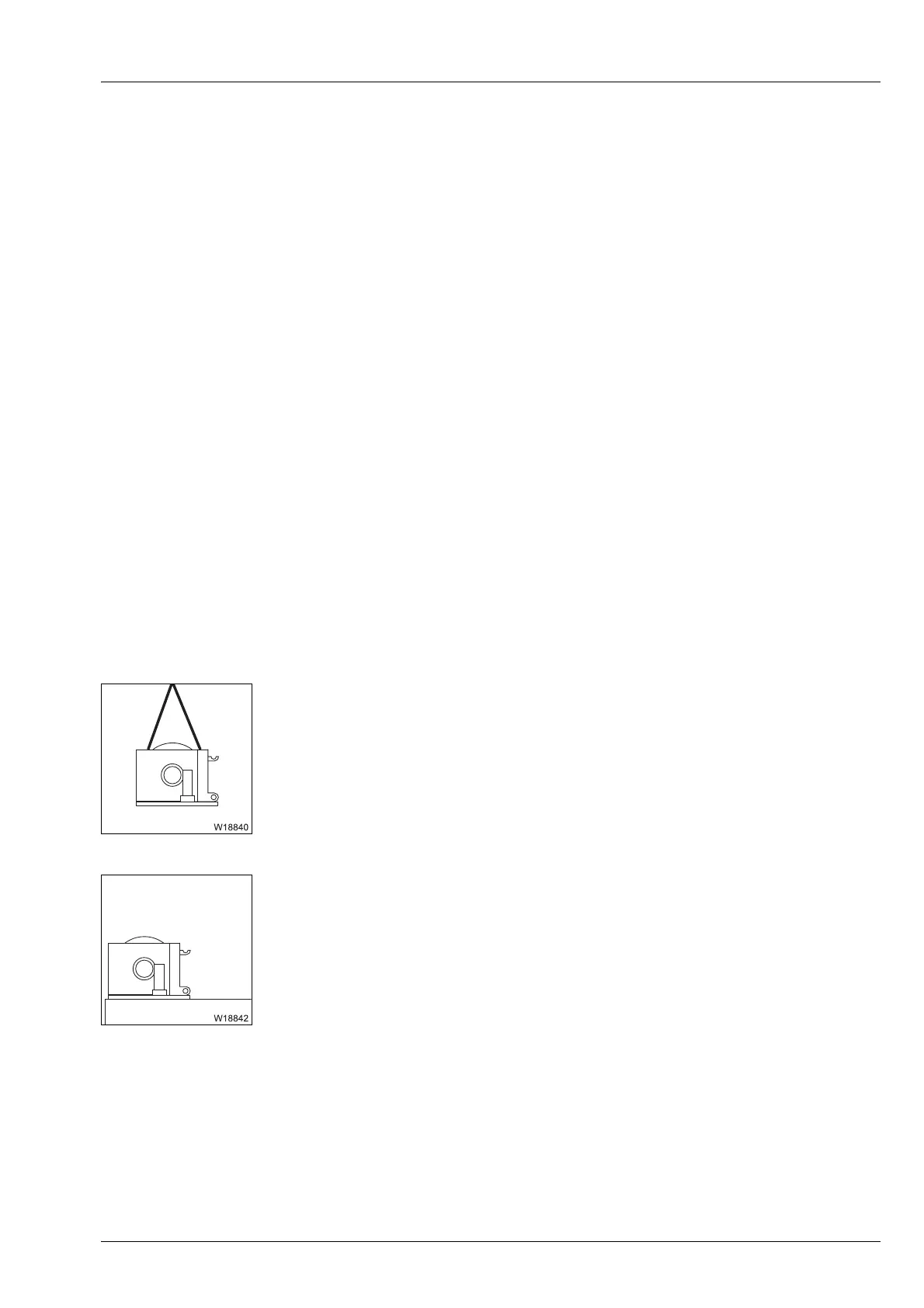

6.7.1 CHECKLIST: Auxiliary hoist, installing
Prerequisites – The truck crane is supported with the required outrigger span as specified
in the
Lifting capacity table; à p. 12 - 30,
– The 54.5 t counterweight combination is resting on the counterweight
platform;
à p. 12 - 62,
or
– Install the rigging frame for counterweight combinations of up to a maxi-
mum of 26 t (57,320 lbs);
à p. 6 - 94.
1. Attach the auxiliary hoist at the centre of gravity;
à p. 6 - 93.
2. – Place the auxiliary hoist on the counterweight combination or the
rigging frame;
à p. 6 - 98.
