Rigging work
12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 81
xx.xx.xxxx
12.7.8 Setting down counterweight for driving the truck crane
Version A For driving with axle loads of at the most 12 t (26,500 lbs) the counterweight
must be completely unrigged;
à Driving modes, p. 6 - 1.
Version B In this version, up to 21.2 t (46,738 lbs) counterweight may be transported
on the truck crane. The axle loads are then greater than 12 t (26,500 lbs).

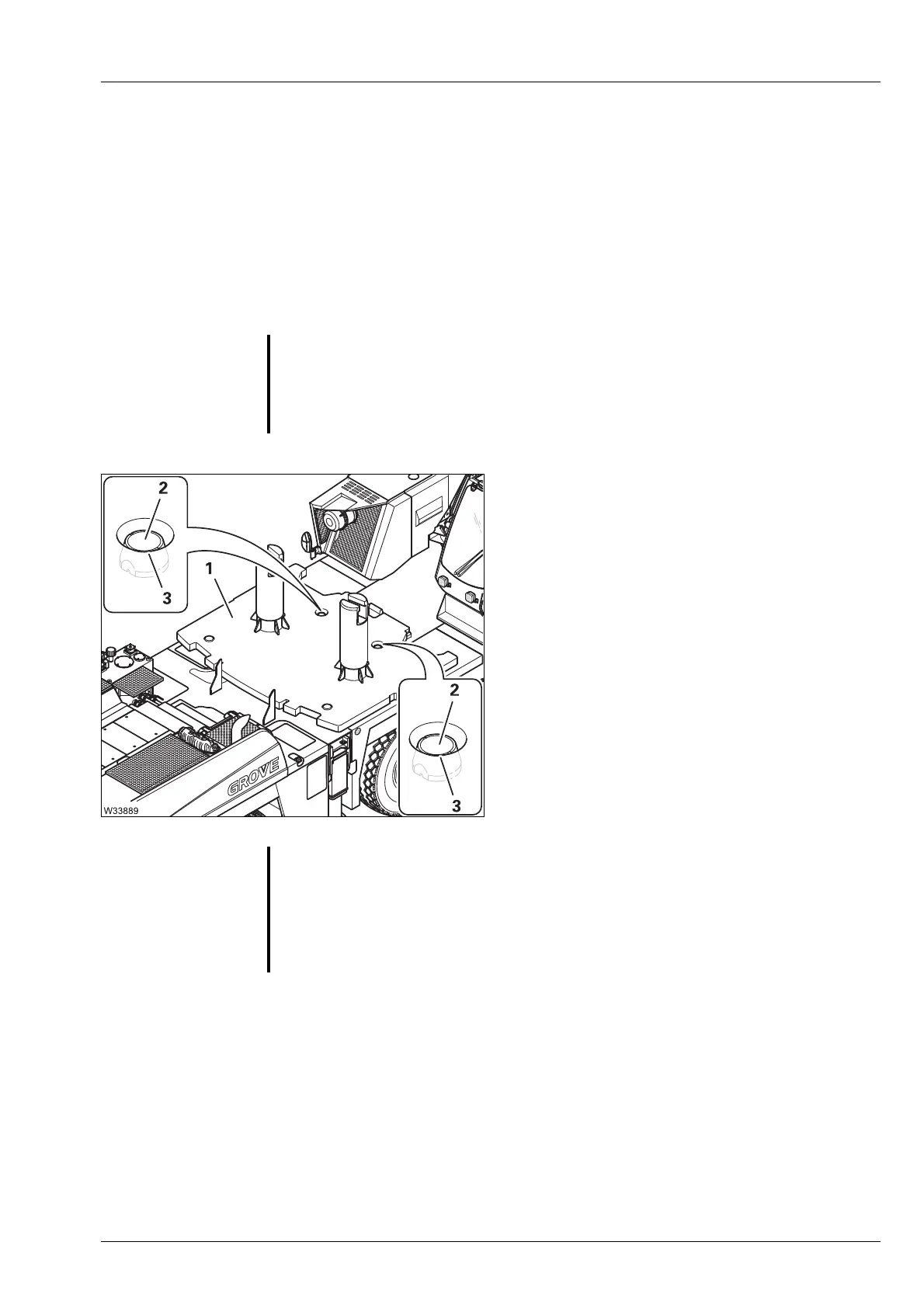

Only the 7.0 t base plate (1) may be set down
directly on the counterweight platform.
Other sections are not secured by the
retainers (2) and cutouts (3) and do not lie flat.
s
G
Risk of accidents due to the counterweight slipping or tipping over!
Place only the 7.0 t base plate directly onto the counterweight platform and
always fasten the counterweight to the rear storage area with lashing
straps. In this way you prevent the counterweight from slipping.
S
Risk of damage to the derricking cylinder!
Always check whether the specifications in this section apply before setting
down the main boom.
In this way you can prevent the derricking cylinder from being pushed
against an incorrectly assembled counterweight combination and
becoming damaged.
