Operating elements for crane operation
9.2 Short description of the operating elements
9 - 66 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

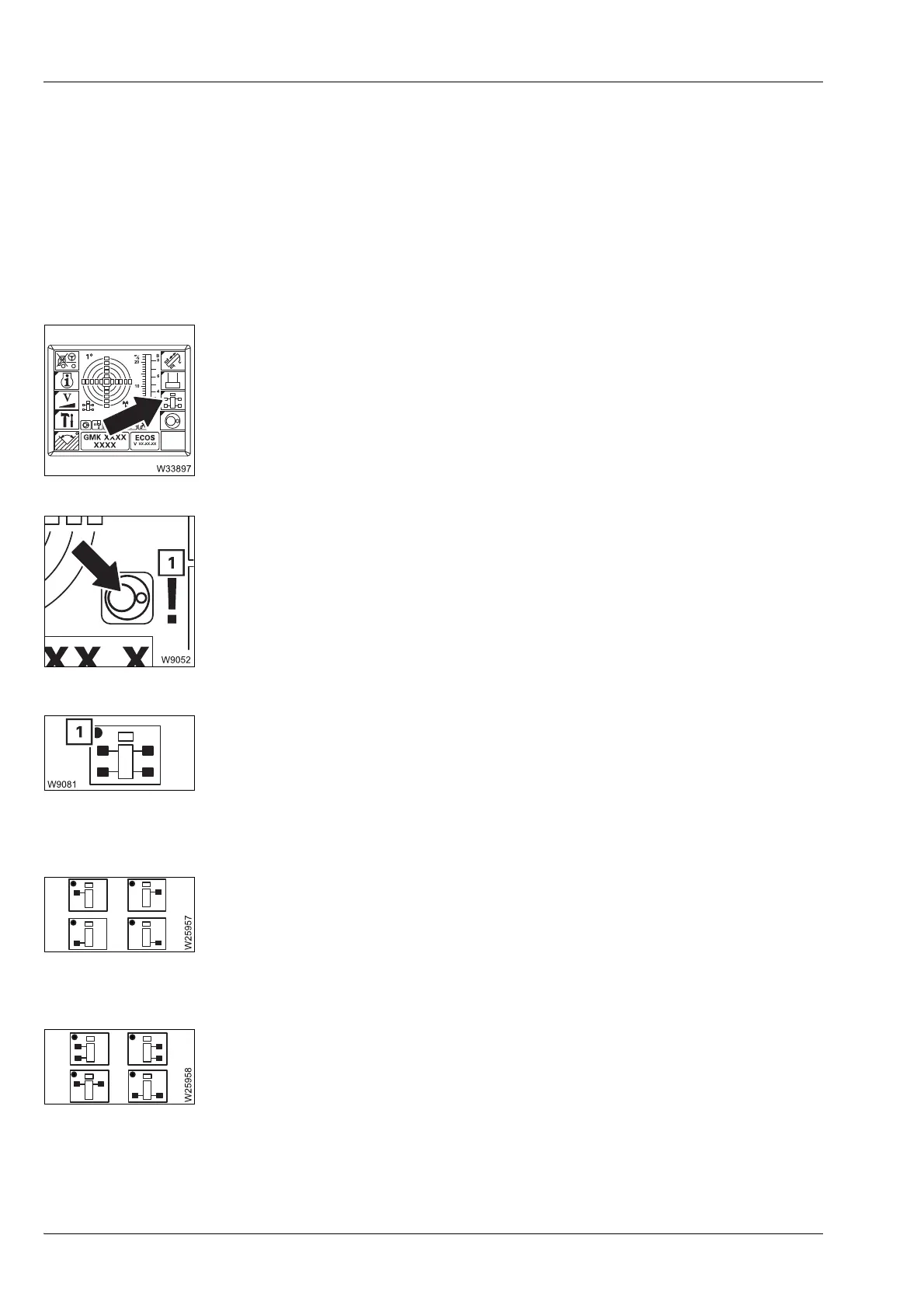

9.2.7 Outriggers
à Extending/retracting outrigger beams, p. 12 - 35
à Extending/retracting supporting cylinders, p. 12 - 41
In the Outriggers
submenu
All directional information refers to the carrier;
à p. 9 - 57.
Outrigger submenu
Slewing gear/movements locked display
Pre-selecting the outrigger
All supporting cylinders
The following functions are pre-selected in the same way:
– Front left-hand outrigger
– Front right-hand outrigger
– Rear left-hand outrigger
– Rear right-hand outrigger
– Left-hand supporting cylinder
– Right-hand supporting cylinder
– Front supporting cylinder
– Rear supporting cylinder
– To open: Press button once – submenu opens
–Red Slewing gear switched off
– Green: Slewing gear switched on – outrigger movement disabled,
symbol (1) appears after pre-selection of the outrigger
– Pre-select: Press button once – dot (1) turns green – pre-selection
on
After 10 seconds – dot (1) turns black – pre-selection off
