Driving modes
6.7 Rigging the auxiliary hoist
Operating Manual GMK6300L 3 112 xxx en 6 - 97
xx.xx.xxxx

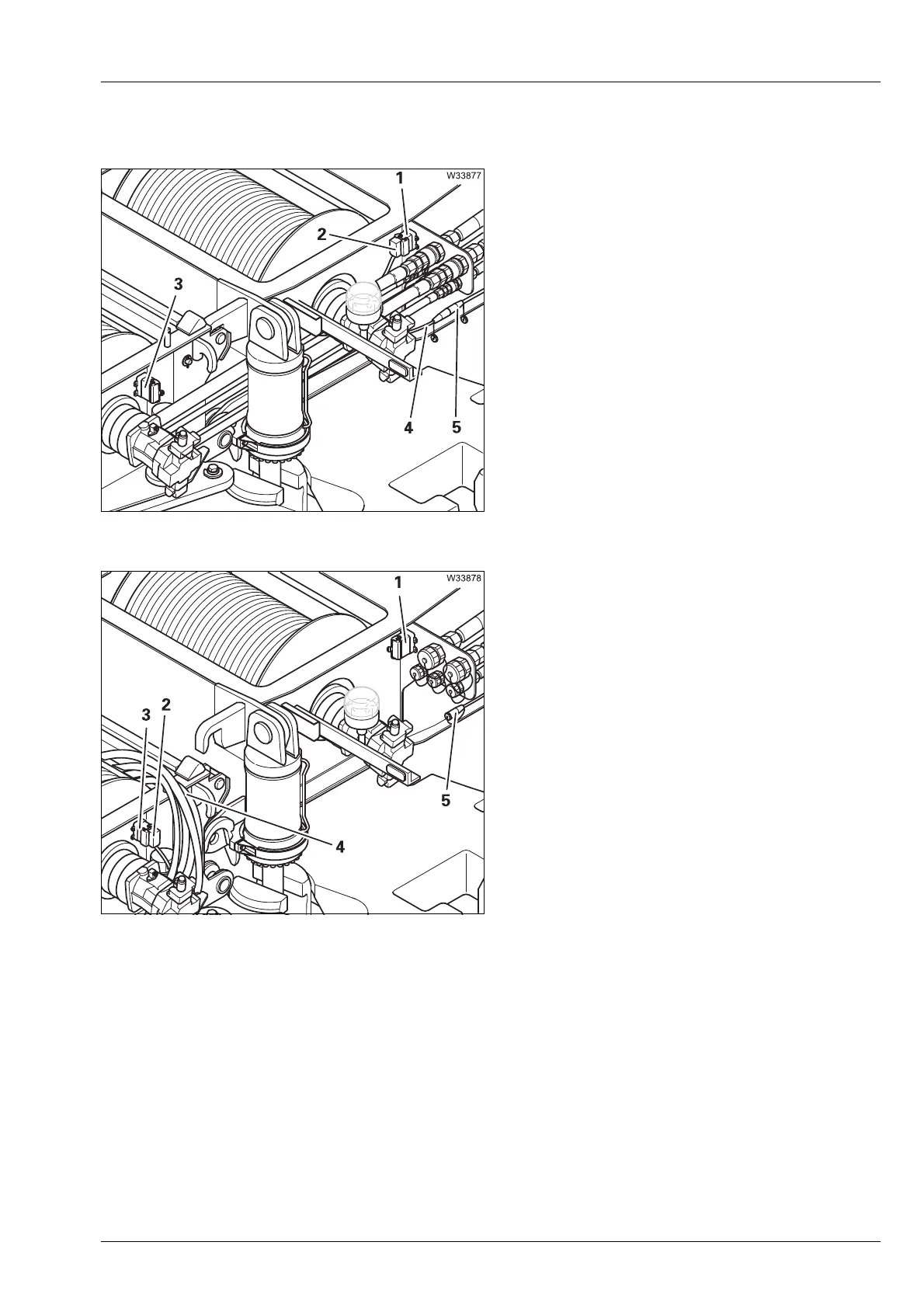

6.7.7 Establishing/disconnecting the electrical connection
Establishing the connection
• Remove the plug (2) from the dummy
socket (3) and insert it in the socket (1).
• Close the dummy socket (3).
• Insert the cable (4) for the hoist camera into
the socket (5).
Separating the connection
• Remove the plug (2) from the socket (1) and
plug it into the dummy socket (3).
• Close the socket (1).
• Remove the cable (4) for the hoist camera
from the socket (5).
• Cover the plug and socket with caps.
• Lay the cable (4) so that it is not damaged
during transport.
