Driving
5.1 Before driving
Operating Manual GMK6300L 3 112 xxx en 5 - 19
xx.xx.xxxx
5.1.5 Setting the tachograph
Diagram sheets (24-hour discs) can be inserted into the tachograph for two
drivers simultaneously.
As a crane operator, you are obligated to set each activity on the tachograph.
H
This section only describes the basic operation of the tachograph (inserting
diagram sheets, setting time groups, operating errors).
Before operation, also note the information in the tachograph manufac-
turer's separate operating manual.
There you will find detailed information (marking the diagram sheets,
malfunctions, etc.).
Prerequisites To set the tachograph, the following requirements must be met:
– the ignition is switched on,
– the truck crane is stationary,
– no error message is displayed.
In the event of
malfunctions
Check that a malfunction has occurred.

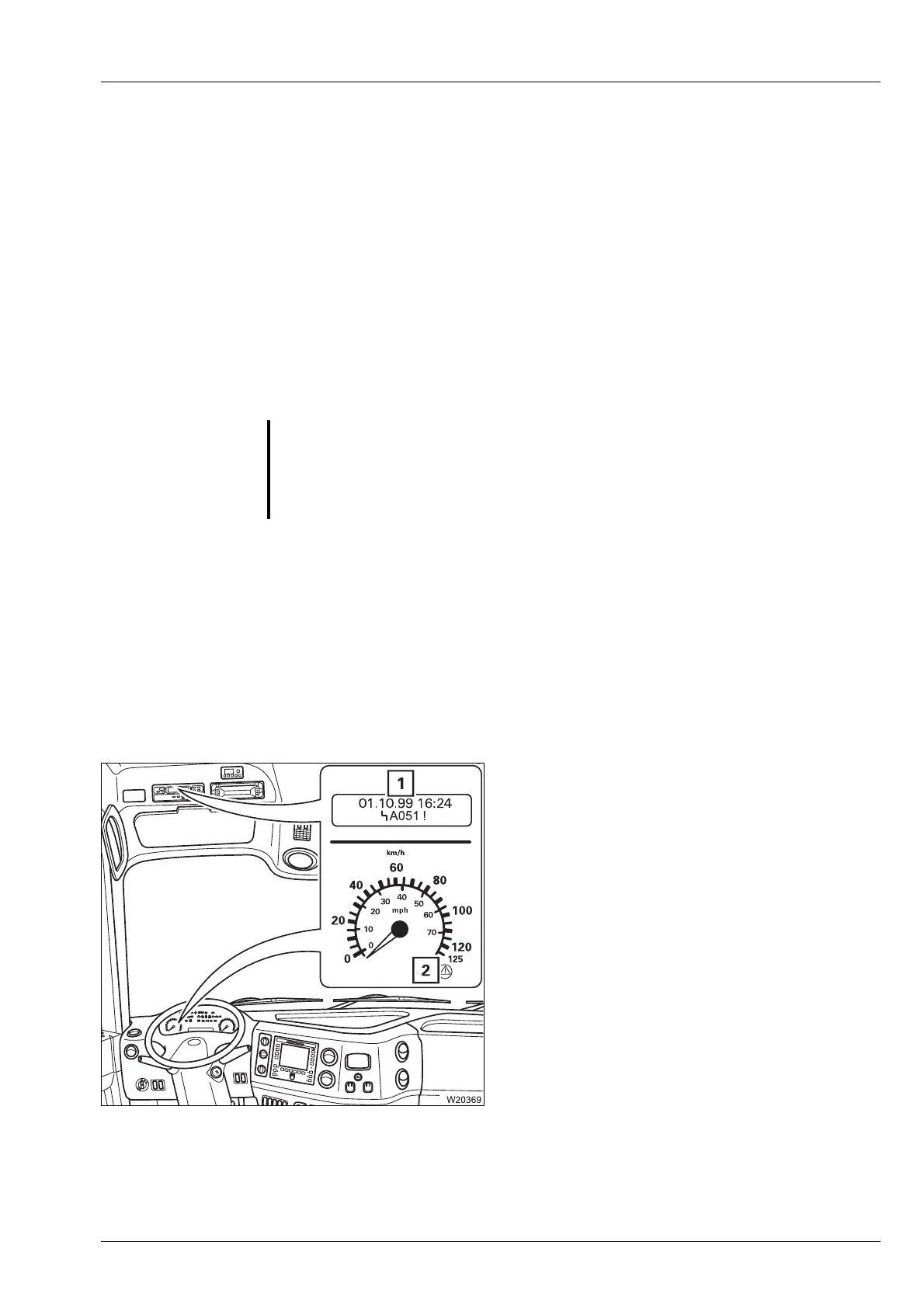

If there is a malfunction in the tachograph (1),
the lamp (2) on the tachometer lights up.
If a malfunction has occurred, the
Tachograph
display (1) will show an error message;
à Separate operating instructions by the
tachograph manufacturer.
s
S
Risk of damage to the tachograph drawer!
Open the tachograph drawer only to insert or remove diagram sheets and
do not use the opened drawer as a shelf or surface (e.g. to mark the dia-
gram sheets). This prevents contamination and damage.
