Malfunctions during crane operation
14.3 Fuses
14 - 6 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
14.3.1 Fuses on the turntable

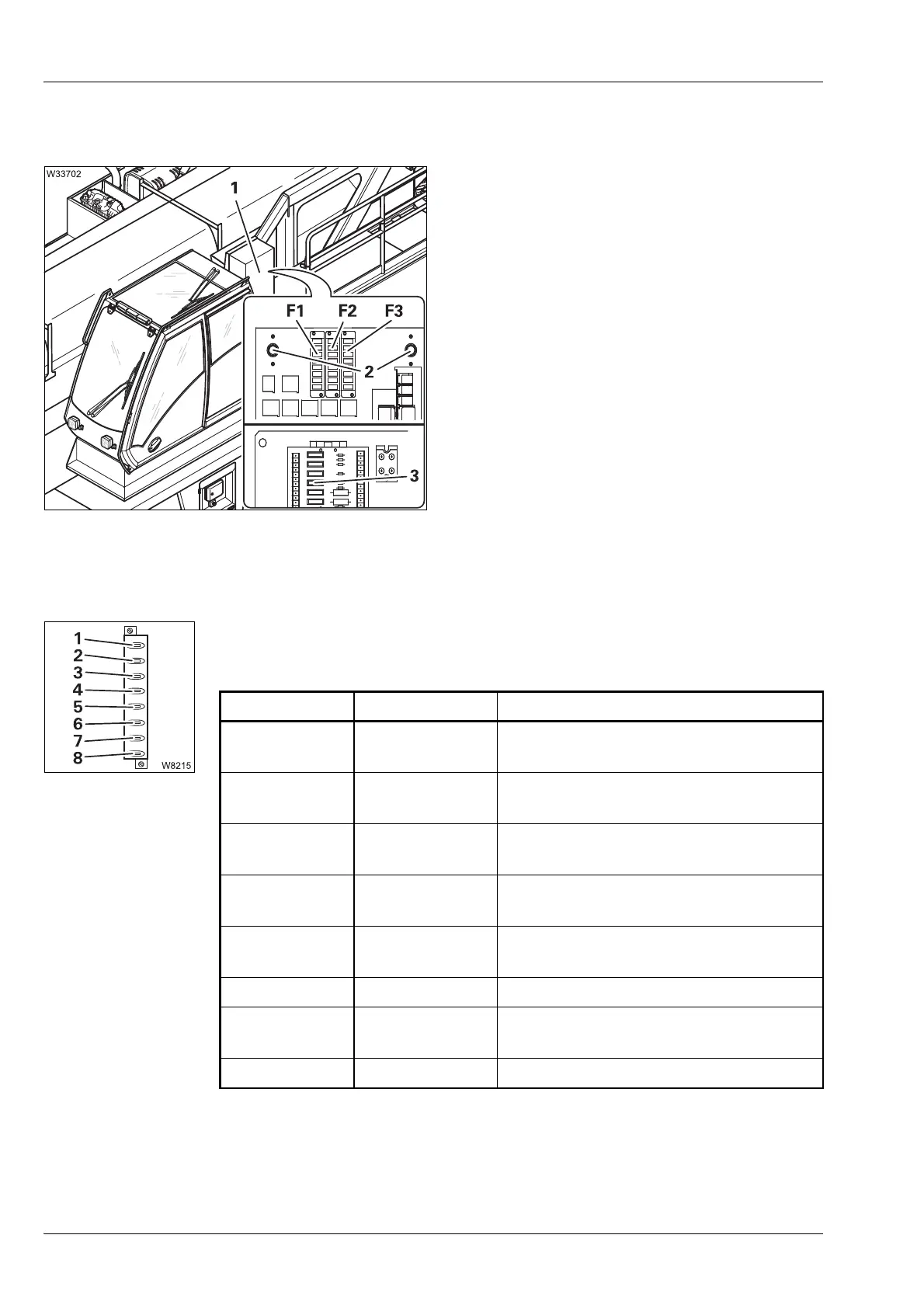

• Open the distribution box (1). It contains
– the fuse groups F1, F2 and F3,
• Remove the screws (2) and fold the plate
down.
There are other fuses on the circuit board (3);
à p. 14 - 7.
Close the distributor box after checking.
• Observe the instructions on changing fuses;
à p. 14 - 5.
Fuse groups
F1/F2/F3
The following tables show the designations of the individual fuses, includ-
ing their amperage and functions.
The designations 1 to 8 in the tables correspond to the order from top to
bottom (fuse 1 is the top fuse).
Designation Amperage (A) Function
F1/1 20
ESX 0 supply
ESX 4 supply
F1/2 20
I/O-4 circuit board
ESX 1 supply
F1/3 10
Central lubrication,
Lattice extension
F1/4 10
Alternator,
Superstructure rotating beacon
F1/5 20
Air intake inhibitor
1)
Flame start system
1)
F1/6 5 Air intake inhibitor
1)
F1/7 3
ESX 4 supply
I/O-4 circuit board
F1/8 5 Engine E-control (PLD)
1)
Additional equipment
