Operating elements for crane operation
9.1 Overview of the operating elements
9 - 16 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

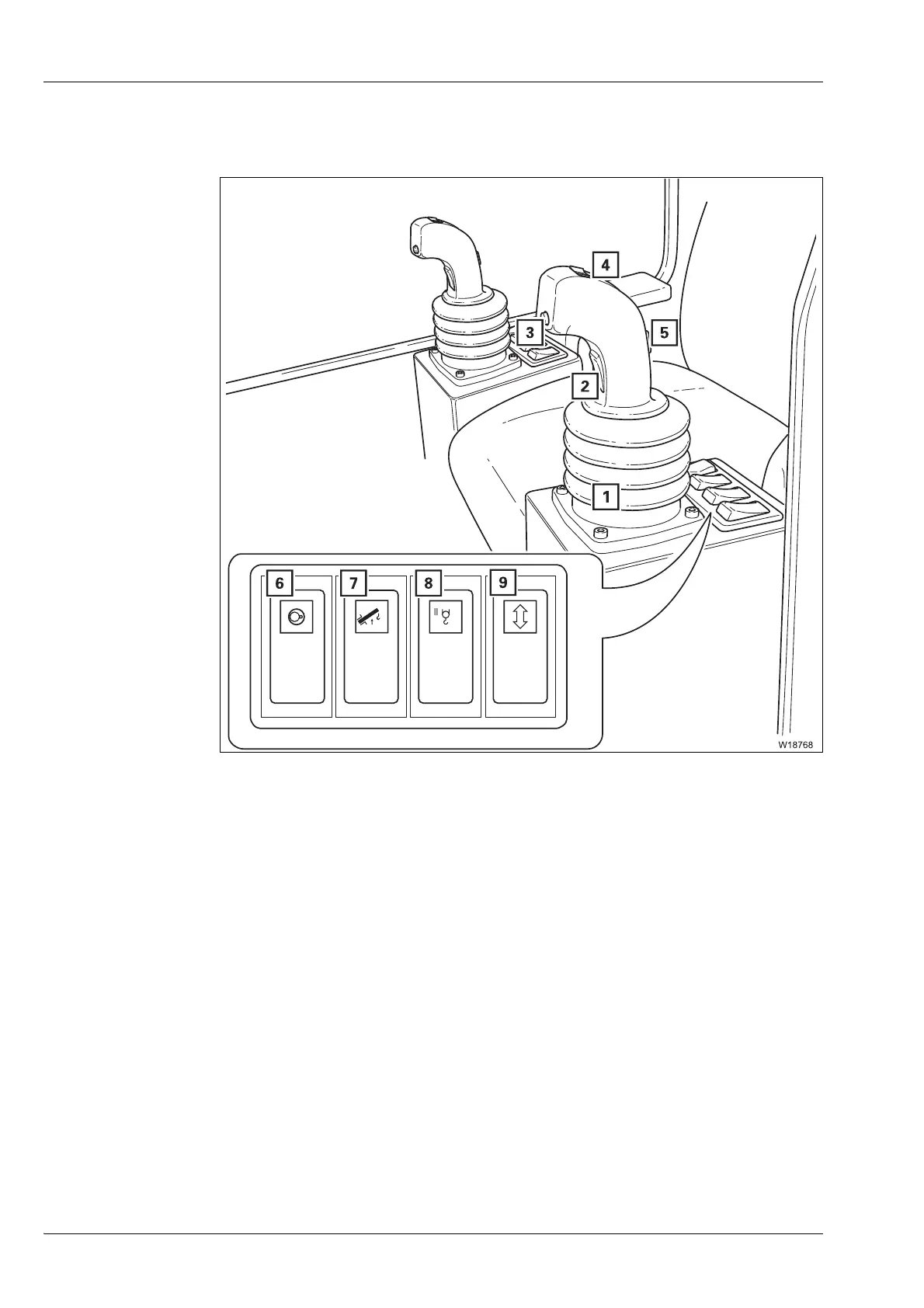

9.1.5 Control panels
Left
1 Left control lever (configuration according to
execution)
à p. 9 - 18
2 Dead man's switch
à p. 9 - 62
3 Horn button
or
Slewing gear freewheel
1)
à p. 9 - 82
4 Depending on which function is activated, button for:
– Derricking gear/telescoping mechanism high-speed
mode on/off
à p. 9 - 85
5 Auxiliary hoist slewing indicator
à p. 11 - 59
6 Slewing gear on/off
à p. 9 - 81
7 Raise button – shutdown bypass
à p. 9 - 85
8 Auxiliary hoist on/off
1)
à p. 9 - 80
9 Inclining the crane cab
1)
à p. 9 - 93
1)
Additional equipment
