Operating elements for driving
3.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 3 - 43
xx.xx.xxxx
3.2.6 Electrical system

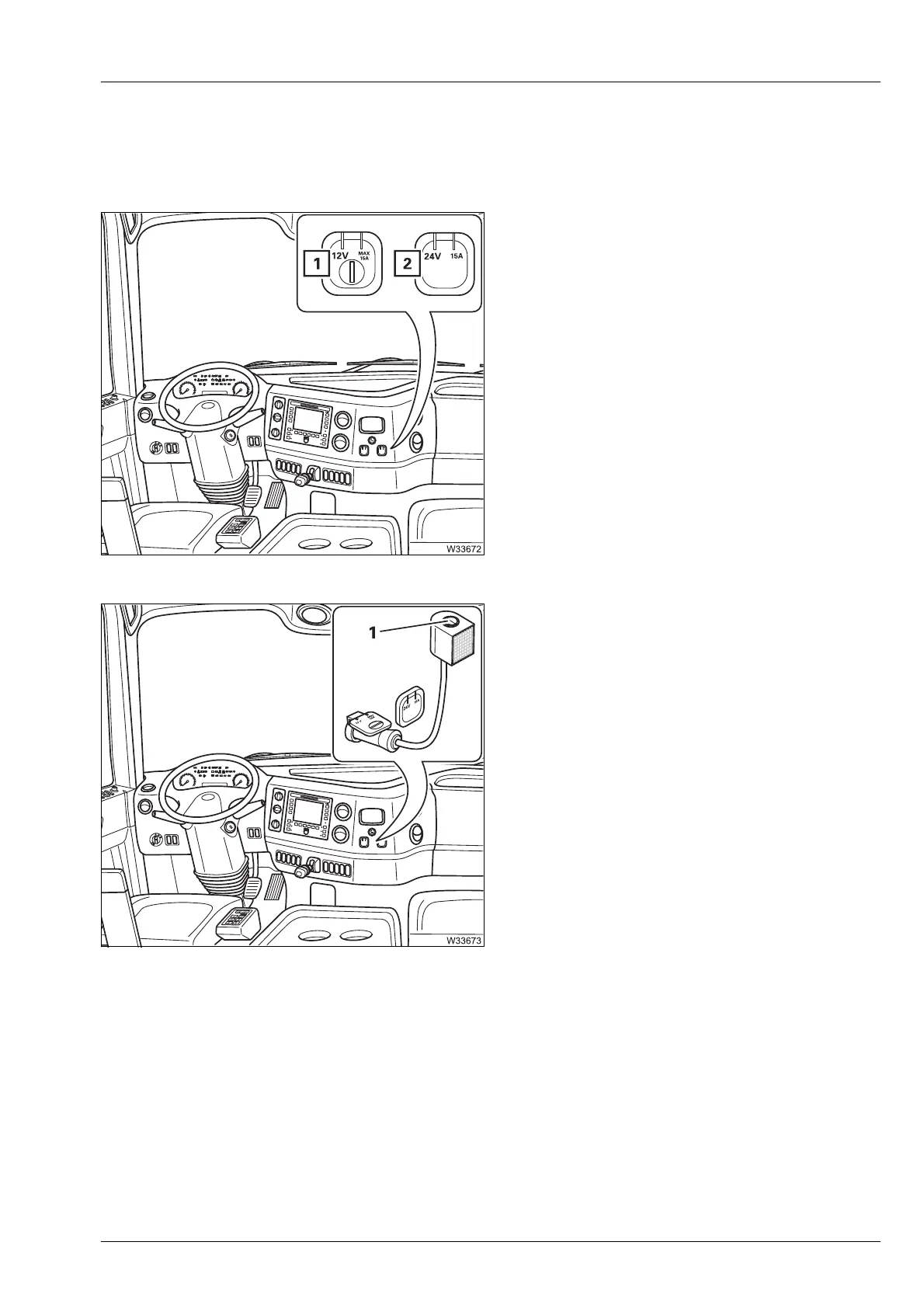

Sockets 12 V/24 V
Only connect electrical devices with the
matching specification to the sockets.
Reading lamp 12 V
As additional equipment, the truck crane is
equipped with a reading lamp.
• If necessary, plug the 12 V reading lamp into
the 12 V socket.
• Press the button (1) – lamp on/off.
1 Socket 24 V/max. 15 A
2 Socket 12 V/max. 15 A
