Rigging work
12.8 Rigging work on the main boom
12 - 90 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
12.8.3 Hook block, separable
The hook block can be separated for on-road driving. The block hook
remains reeved and can be attached to the bumper. The hook can be
transported separately, e.g. on a separate vehicle.

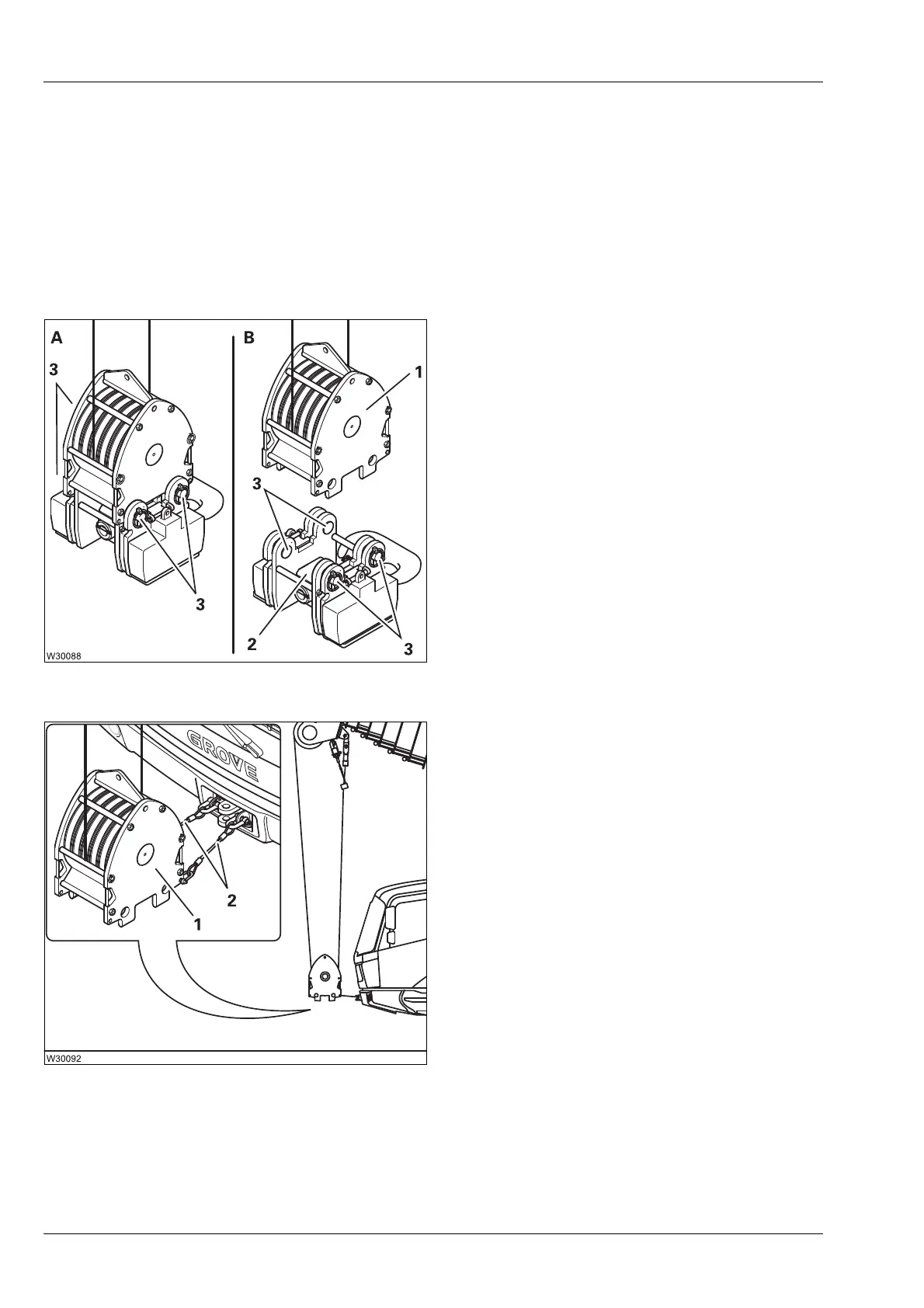

Rigging for
on-road driving
• (A) – Remove the retaining pin and pull out
the pins (3).
• (B) – Raise the block hook (1) an. Insert the
pins (3) and secure them in the hook. Stow
away the hook (2) so that it is safe for trans-
portation.
• Raise the block hook (1) vertically above the
holding ropes (2).
• Lower the block hook (1) and fasten it using
the holding ropes (2).
Set down the main boom onto the boom rest
and pull the hoist rope tight only to the extent
that the block hook is stabilised in its position.
