Rigging work
12.7 Rigging/unrigging the counterweight
12 - 56 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
12.7.3 Slinging points on the counterweight sections
•
Only use lifting gear of sufficient load bearing capacity.
Weights;
à Counterweight parts, p. 1 - 12.
There are different types of slinging points.

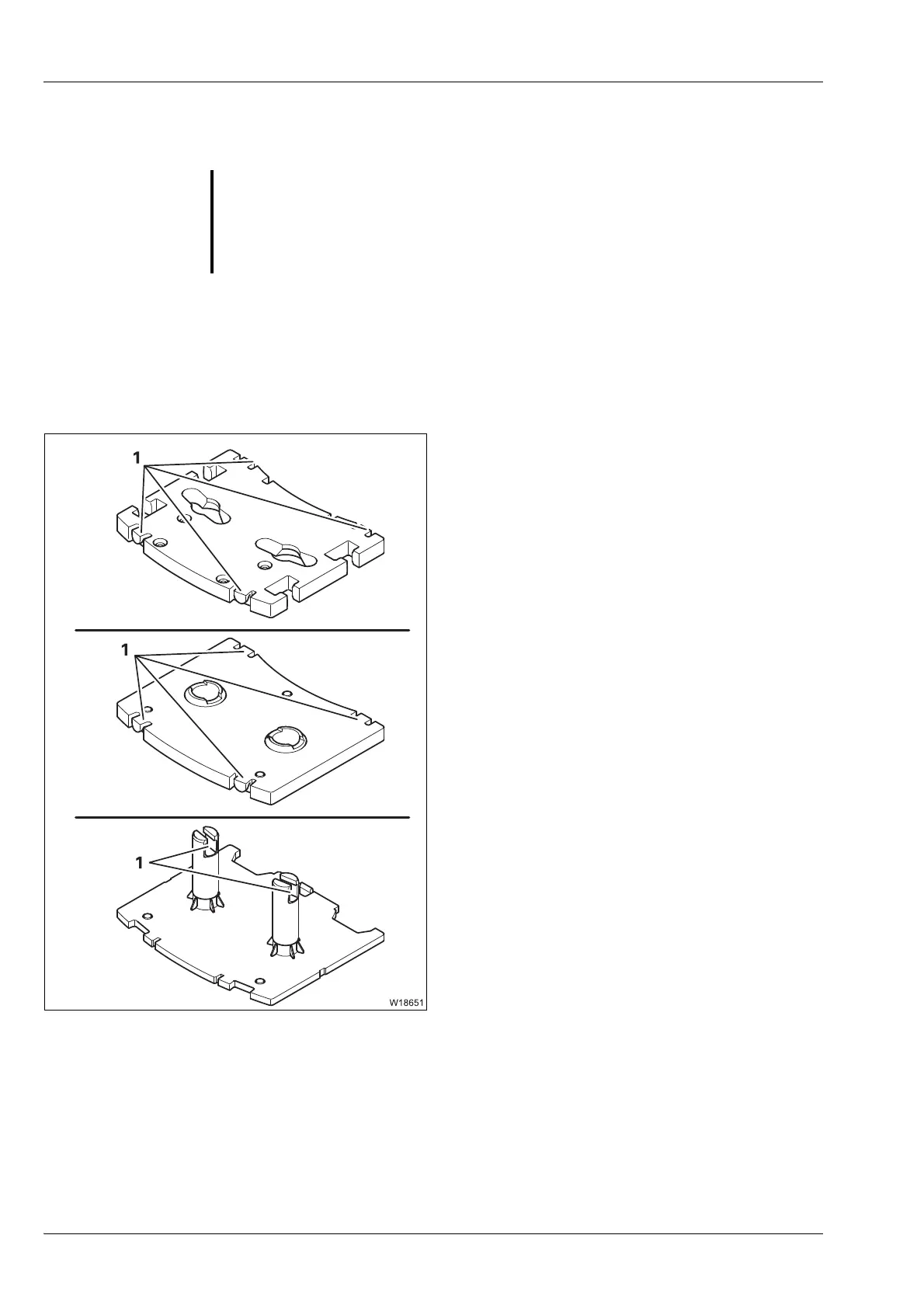

Slinging points on version A sections
Four slinging points each (1) are located on
– the 9.5 t section with cutouts and recesses,
– the four 9.5 t sections and
Two slinging eyes (2) are located on
– the 7.0 t base plate.
G
Risk of accidents if used improperly!
Attach the various counterweight sections only to the intended slinging
points and use lifting gear of sufficient lifting capacity.
Only lift the sections one by one, since the slinging points are not designed
for lifting stacked sections.
