Rigging work
12.9 Other rigging work
Operating Manual GMK6300L 3 112 xxx en 12 - 121
xx.xx.xxxx

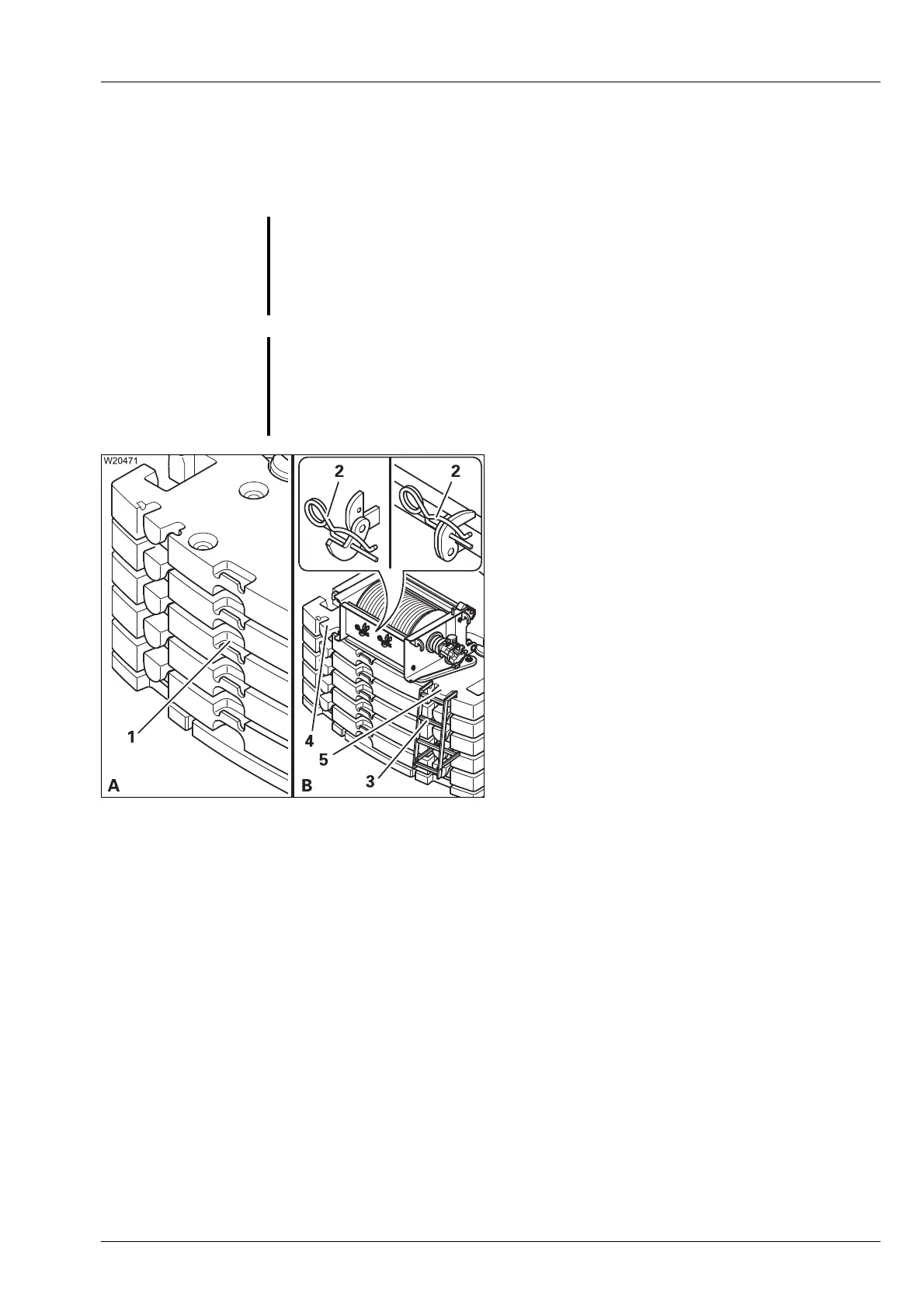

12.9.3 Ladder on the counterweight
For rigging work, you reach the turntable via the counterweight.
(A) – when an auxiliary hoist is not rigged:
• Use the rungs (1) for ascending.
(B) – when an auxiliary hoist not rigged:
• Remove the safety pin (2) and remove the
ladder (3).
• Attach the ladder at the hanging points (4)
and (5).
• Always remove the ladder for crane opera-
tion and attach it to the auxiliary hoist using
the retaining pins (2).
G
Risk posed by folding ladder falling down!
Always secure the folding ladder before driving. This prevents the ladder
from falling down while driving and endangering other vehicles.
S
Risk of damage during crane operation!
Always remove the ladder for crane operation.
This prevents you from exceeding the slewing radius and damaging the
carrier or objects within the slewing range of the truck crane.
