Manitowoc Grove GMK6300L-1 User Manual

Operating elements for crane operation
9.2 Short description of the operating elements
9 - 118 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

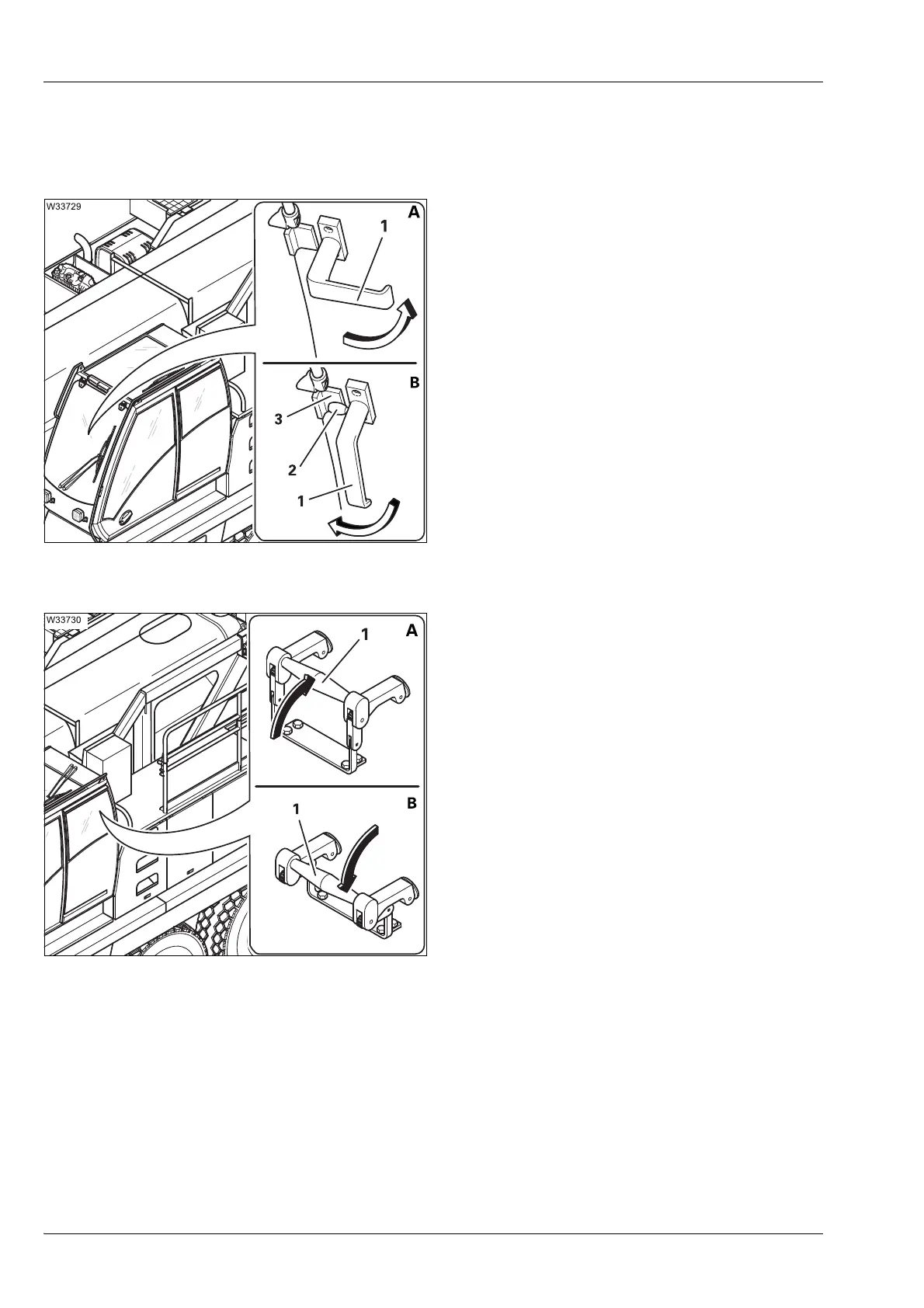

9.2.24 Windows, doors, keys
Windscreen
Open window (A)
• Turn both handles (1) inward.
• Push the window forward.
Close window (B)
• Pull the window closed.
• Turn both handles down – pegs (2) located
behind the holder (3).
Rear window
Open (A)
• Raise the handle (1).
• Push window outwards.
Close (B)
• Pull in window.
• Push down handle (1).
