6.5 Installing/removing outrigger beams
Operating Manual GMK6300L 3 112 xxx en 6 - 55
xx.xx.xxxx
6.5.5 Disconnecting/establishing the hydraulic connection
There is a valve block on each outrigger beam. The position of the valve
block may differ from the drawings, depending on the outrigger beam.

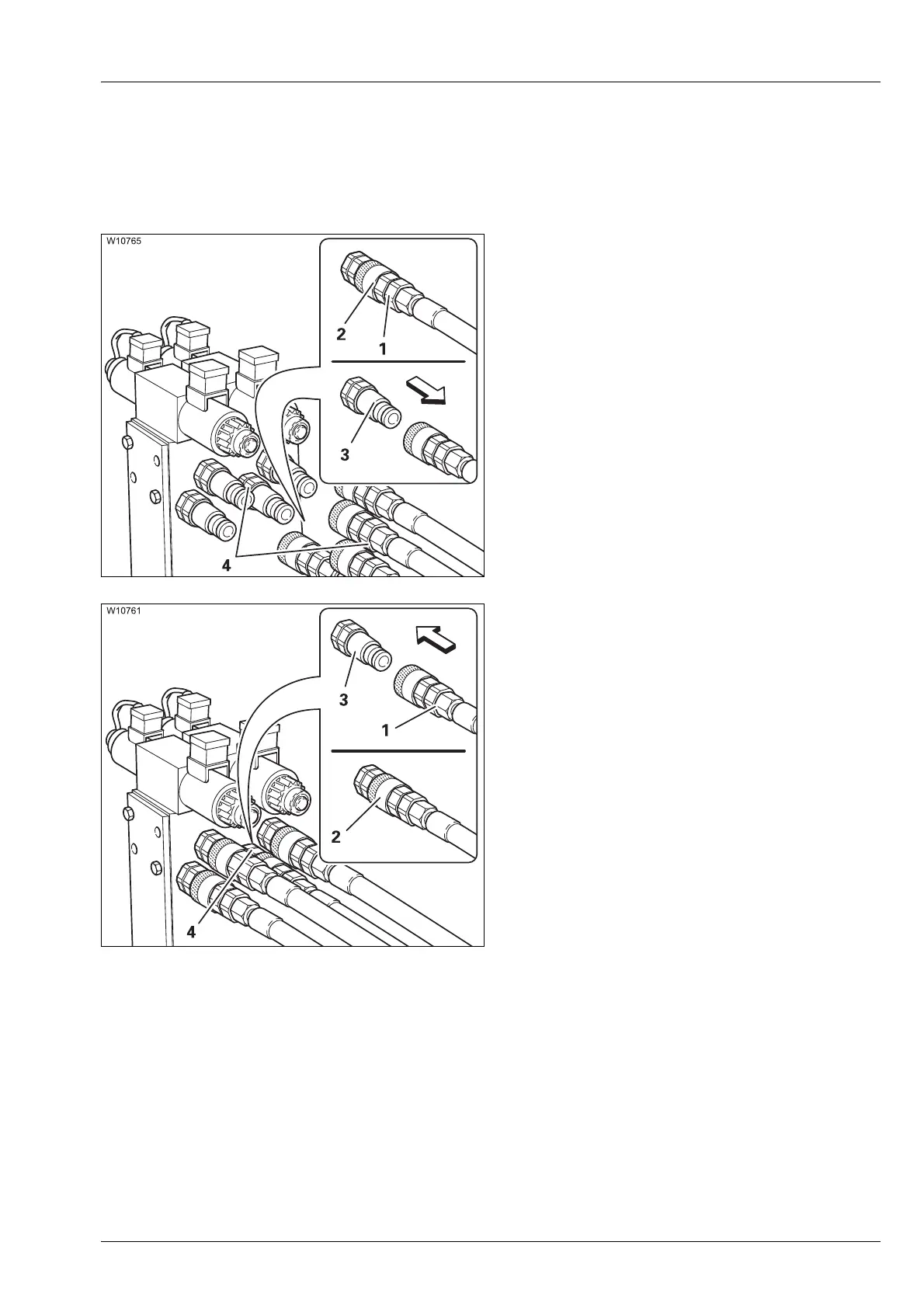

Separating the connection
Always disconnect all connections (4).
• Hold the hose (1) firmly.
• Pull the lock (2) against the stop. The hose is
pushed out of the connection (3).
• Seal all connecting points.
Establishing the connection
Always establish all connections (4). The
assignment is differentiated by colour
designations.
• Insert the hose (1) into the connection (3).
• The lock (2) engages.
