Rigging work
12.9 Other rigging work
Operating Manual GMK6300L 3 112 xxx en 12 - 117
xx.xx.xxxx
12.9.2 Cameras for crane operation

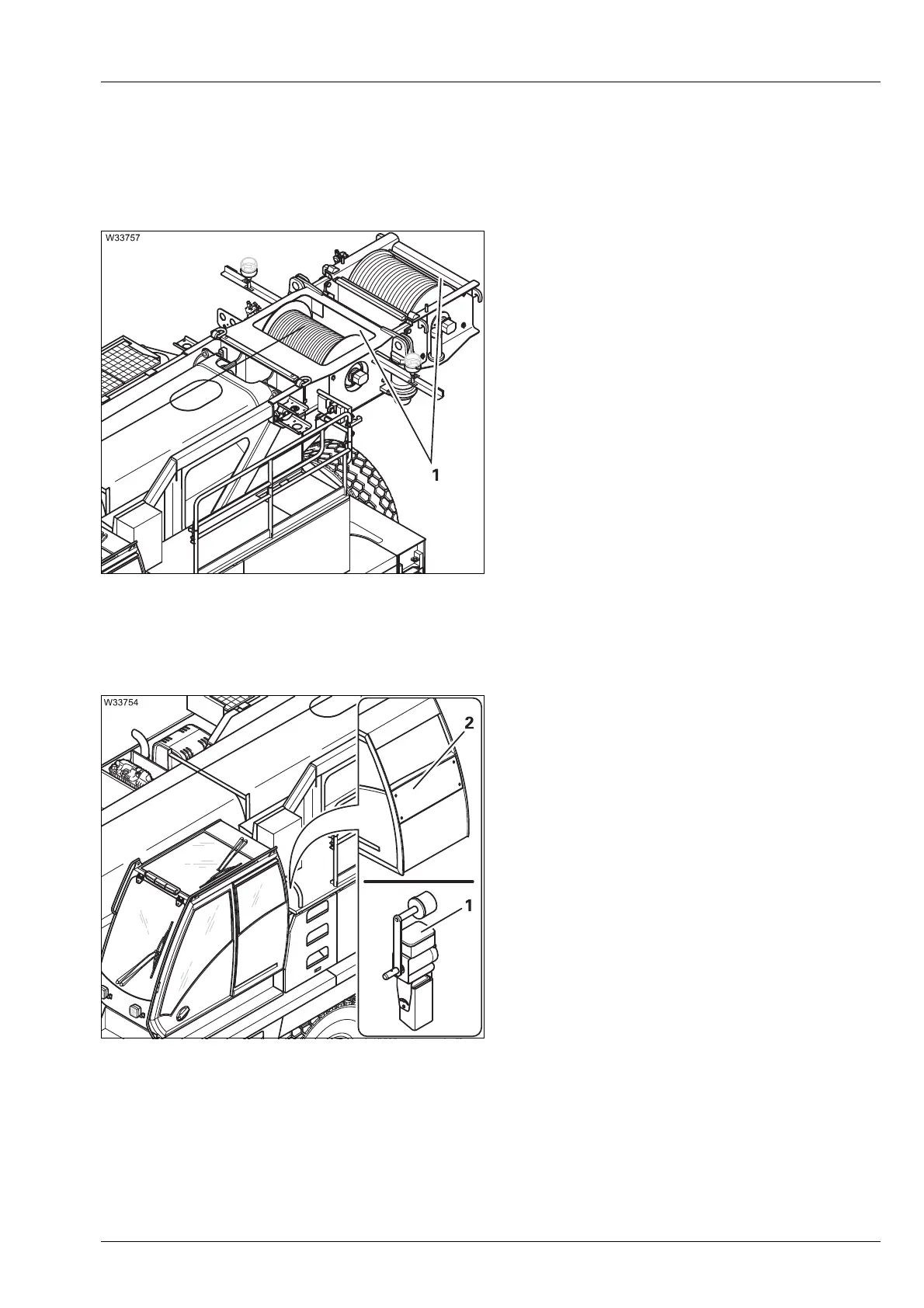

Cameras on the
hoists
A camera can be found on both the main and
auxiliary hoist (1).
• Clean the camera lens if necessary.
Camera on main
boom
For crane operation you have to install the camera and switch it on.
For on-road driving, you have to switch the camera off again and remove it.
The camera (1) may only be installed on a
truck crane equipped with the appropriate
receiver (2). The camera and receiver are coor-
dinated and identified with the same number
on the model plate.
• Before installation, compare the numbers
on the model plates.
