6.5 Installing/removing outrigger beams
6 - 50 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
6.5.2 CHECKLIST: Installing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!

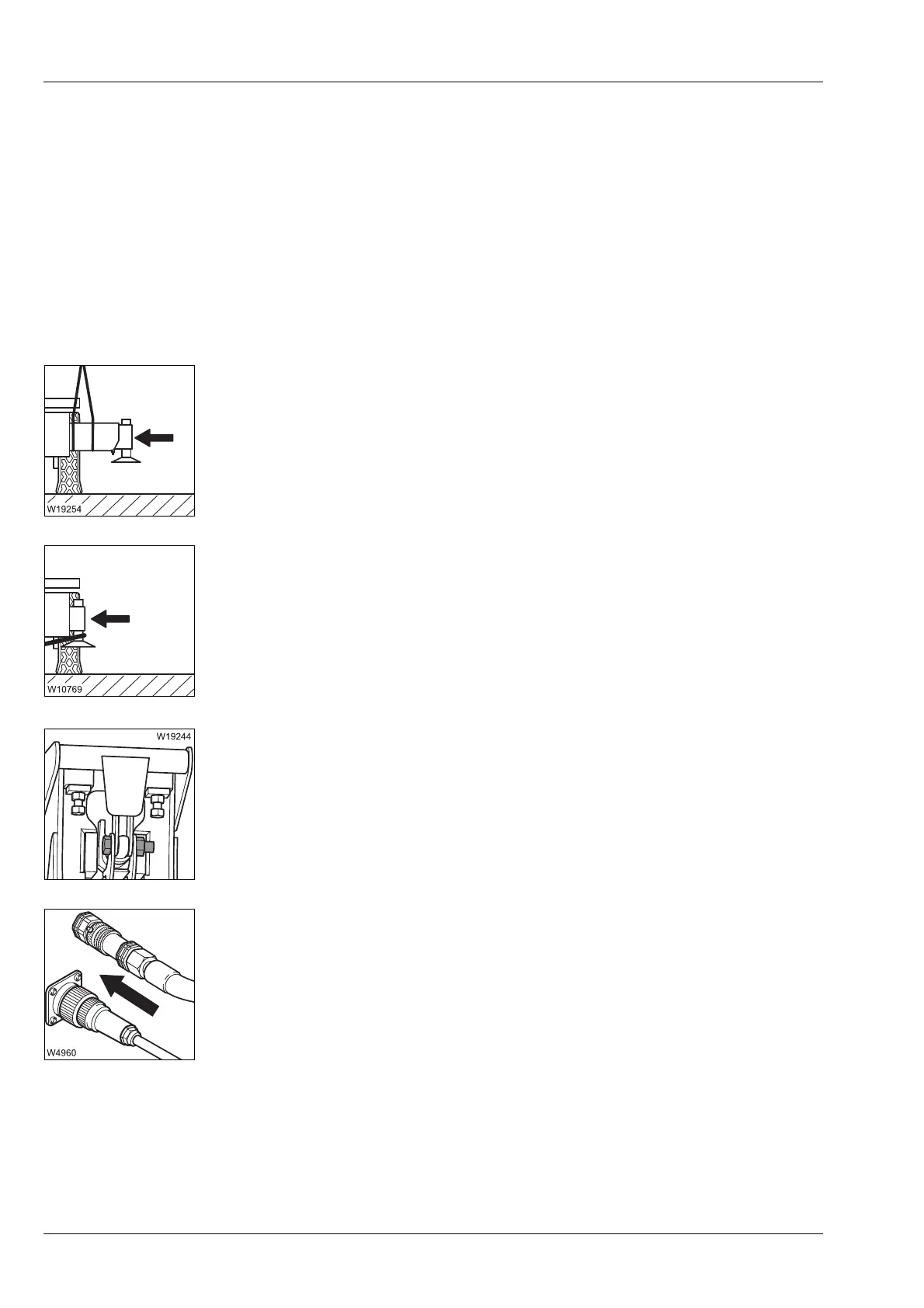

1. Prepare the truck crane for the installation of the outrigger beams;
à p. 6 - 52.
2. – Remove the connection elements from the supporting box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the
lifting gear.
à Inserting the outrigger beam, p. 6 - 61
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
à p. 6 - 61.
4. Establish the connection to the support box;
à p. 6 - 59.
5. – Establishing hydraulic connections;
à p. 6 - 55.
– Establish the electrical connection if necessary;
à p. 6 - 56.
