Operating elements for crane operation
9.2 Short description of the operating elements
9 - 84 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

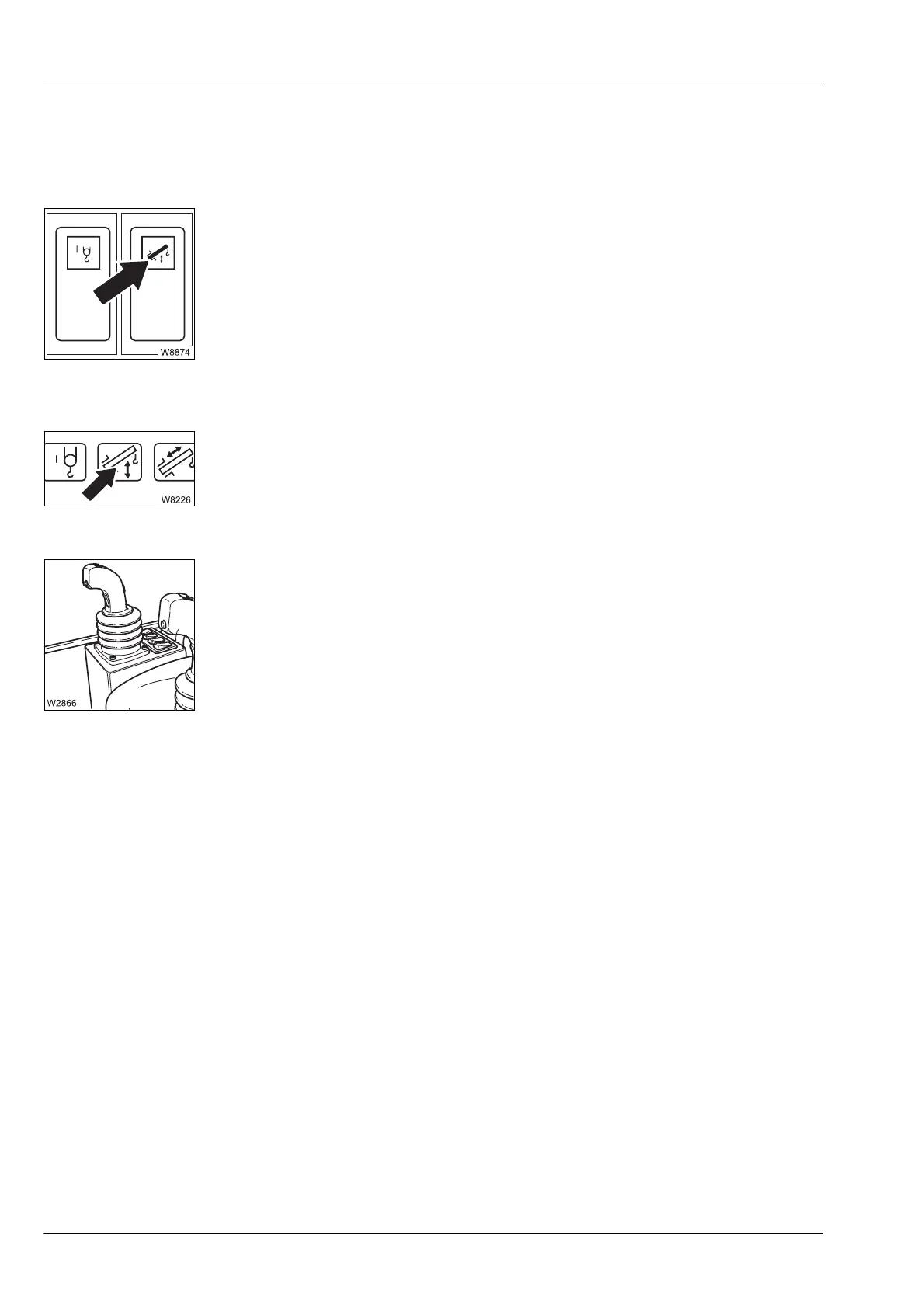

9.2.16 Derricking gear
à Derricking gear, p. 11 - 62.
Derricking gear on/off
There is a lamp in the button.
Power units display
Right control lever
– Press once: – Lamp bright – derricking gear on,
Power units with the same control lever configuration
off
– Lamp dim – derricking gear off
à p. 11 - 62
–Green: Derricking gear on
–Red: Derricking gear off
–To the left: Raise – lift main boom
– To the right: Lower – lower main boom
à p. 11 - 63
