Operating elements for crane operation
9.2 Short description of the operating elements
9 - 74 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
9.2.12 Counterweight submenu
Counterweight
submenu
à Rigging/unrigging the counterweight, p. 12 - 53,
à Counterweight hoist unit, p. 12 - 75.

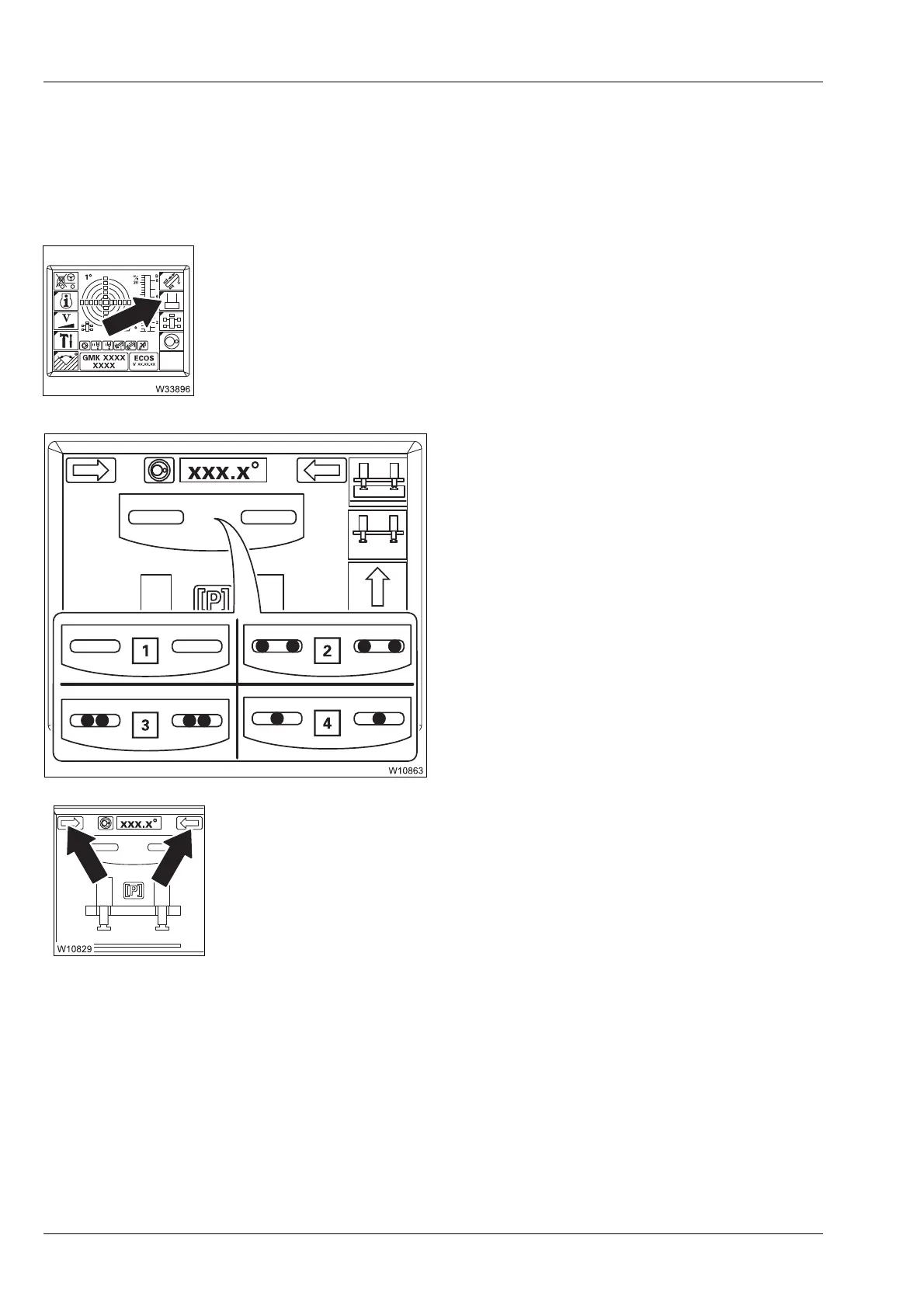

Counterweight submenu
Rigging position display
In the rigging range, the following rigging
positions are displayed.
à p. 12 - 77
Display of slewing direction for automatic mode
Automatic mode is switched on.
– To open: Press button once – submenu opens
1 White – not in the rigging range
2 Green – position for lifting cylinder
movements
3 Red – intermediate position, lifting
cylinder movements blocked
4 Green – position for lifting/lowering the
counterweight (0° position)
– Arrow lights up: Move control lever for slewing gear in direction of
arrow – automatic mode is executed
