Driving modes
6.5 Installing/removing outrigger beams
6 - 54 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

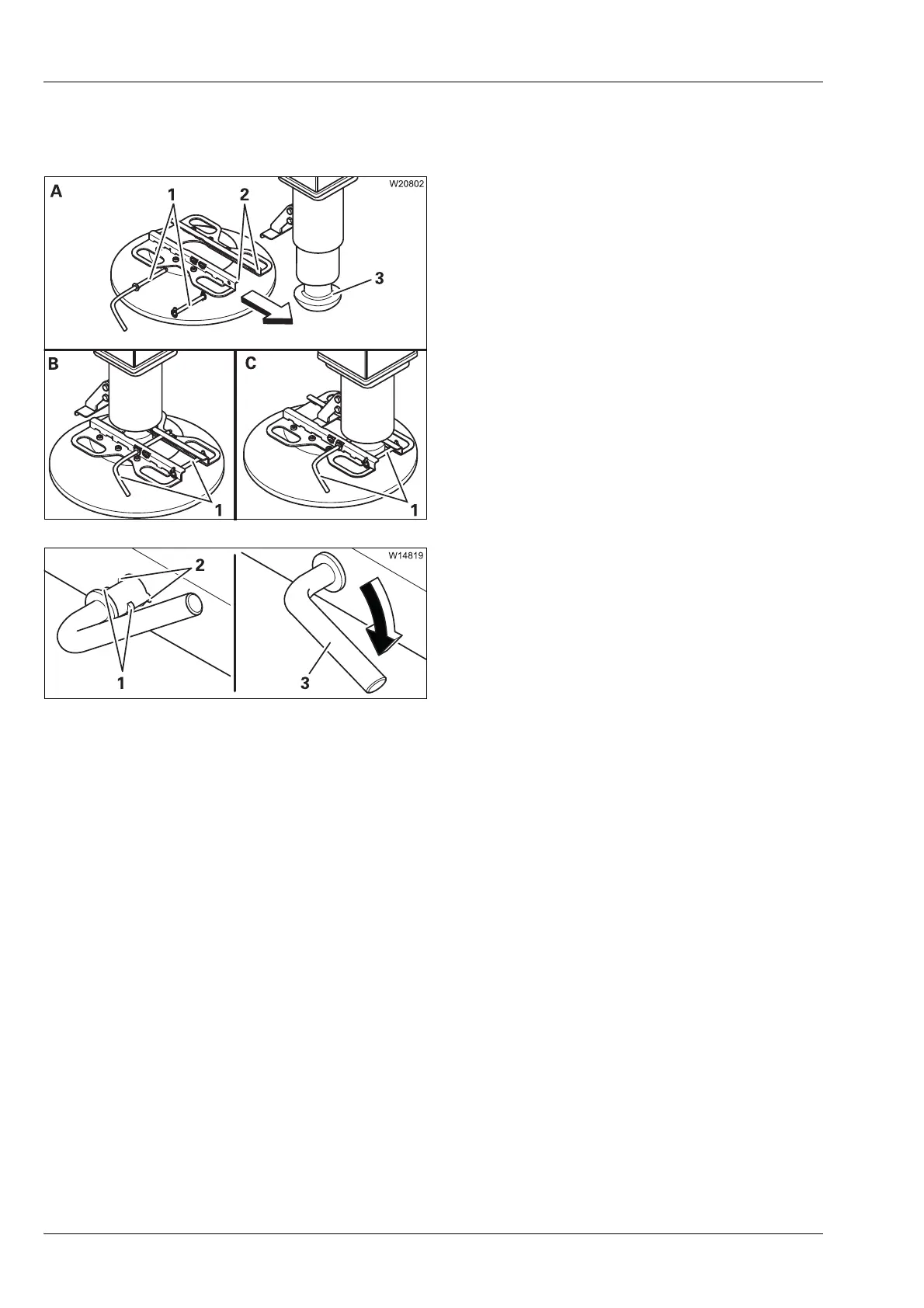

Attaching
outrigger pads
After mounting the outrigger beam, you must attach the outrigger pad.
• (A) – Remove the pin (1).
• Extend the outrigger cylinder far enough so
that the bearing surface (3) is below the
guide (2).
• Push the outrigger pad onto the outrigger
cylinder.
• Move the outrigger pad into required
position.
– On site, move it to the working position (B).
– If you need to drive to the site, in driving
position (C).
• Insert the pins (1) and secure them.
Securing pin
• Plug the pin with the peg (1) through the
cutout (2).
• Turn the grip (3) downward.
